- Page 1 FB 450 FB 510 USER MANUAL IN ORIGINAL Dok: 101498-GB 1310...
- Page 2 FB 450 / FB 510...
-
Page 3: Table Of Contents

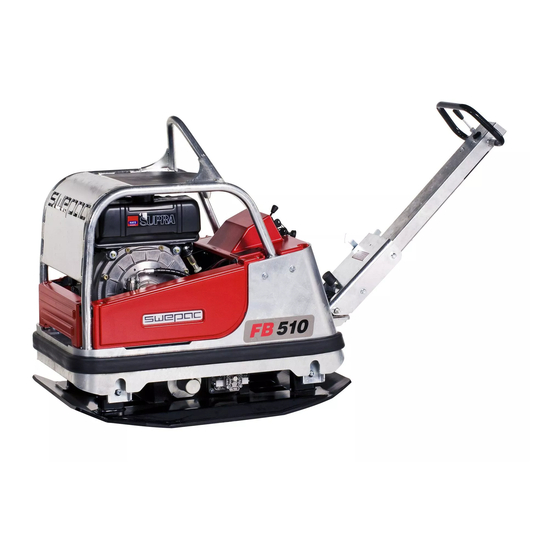

FB 450 / FB 510 SWEPAC FB 450 / FB 510 are used to pack ballast under foundations, in connection with road building, in trenches, etc. On account of the forward/reverse fun- ction, the machine is very suitable for packing in tight spaces and as a complement to larger packing equipment. -
Page 4: Safety Instructions
Exhaust Emissions • Always wear pesonal protective equipment as heavy, The FB 450 / FB510 meets the requirements for exhaust non-slip shoes, ear protectors and approved eye emissions in accordance with US-EPA stage 2. -
Page 5: Signs
FB 450 / FB 510 SIGNS Warning Signs Machine Signs MACHINERY Before use, carefully read the manual and its safety instruc- tions so that you can handle the machine safely. Ensure that the manual is always accessible. 1. Manufacturer 2. Place, country of manufacture. -
Page 6: Tecnical Data
FB 450 / FB 510 TECHNICAL DATA METHOD OF OPERATION FB 450 The machine consists of a base plate with a vibration element and an upper part cushioned from the base plate. Net weight .........445 kg The cushioning between the base plate and the upper part Base plate, w x l ......700 x 1080 mm... -
Page 7: Technical Description
FB 450 / FB 510 TECHNICAL DESCRIPTION FB 450 / 510 Left side view Right side view Left side view Right side view Battery cover Protective hood Hydraulic oil filter Lifting eye Throttle lever Diesel engine Air filter Control panel... -
Page 8: Daily Checks
The machine is on a level surface. Cleaning FB 450: The oil must reach the edge of the filling hole. 1. Remove the foam plastic element and the paper element FB 510: The oil must reach up to the “MAX” marking. - Page 9 FB 450 / FB 510 Vibration Element Check regularly that there is no oil leak. Seal any leaks. Note! Machines must never be operated if a leak is sus- pected. Note! The oil level in the vibration element is 0,5 liter.
-
Page 10: Before Starting
FB 450 / FB 510 BEFORE STARTING FB 450 See Daily Checks on page 8. STARTING Note! The vibration power switch on the handle must be in the position “vibration off” (red/green marking). Other- wise the machine cannot be started. -
Page 11: Before Starting
Main power switch FB 450 / FB 510 BEFORE STARTING FB 510 See Daily Checks on page 8. STARTING Note! The vibration power switch on the handle must be in the position “vibration off” (red/green marking). Other- wise the machine cannot be started. -
Page 12: Operating Instructions
FB 450 / FB 510 OPERATING INSTRUCTIONS TRANSPORTATION The machine is fitted with a lift eye that can be be placed on the hood when not in use. The vibrator is started and stopped with the power switch on NOTE! Use only safety frame lifting point (1) to lift the the handle. -
Page 13: Ec-Declaration Of Conformity
FB 450 / FB 510 EC-declaration of conformity Manufacturer Swepac AB Blockvägen 3 34132 Ljungby 1. Category: Vibratory plate 2. Type: FB450 FB510 3. Engine power: FB450......7kW FB510......7,5kW The product complies with the following directives: 2006 / 42 / EG... - Page 14 FB 450 / FB 510...
- Page 15 FB 450 / FB 510...
- Page 16 FB 450 / FB 510 SWEPAC AB Address Blockvägen 3, 341 32 Ljungby, Sweden, tel. +46 (0)372-156 00, fax +46 (0)372-837 41, E-mail mail@swepac.se, Internet www.swepac.se...
