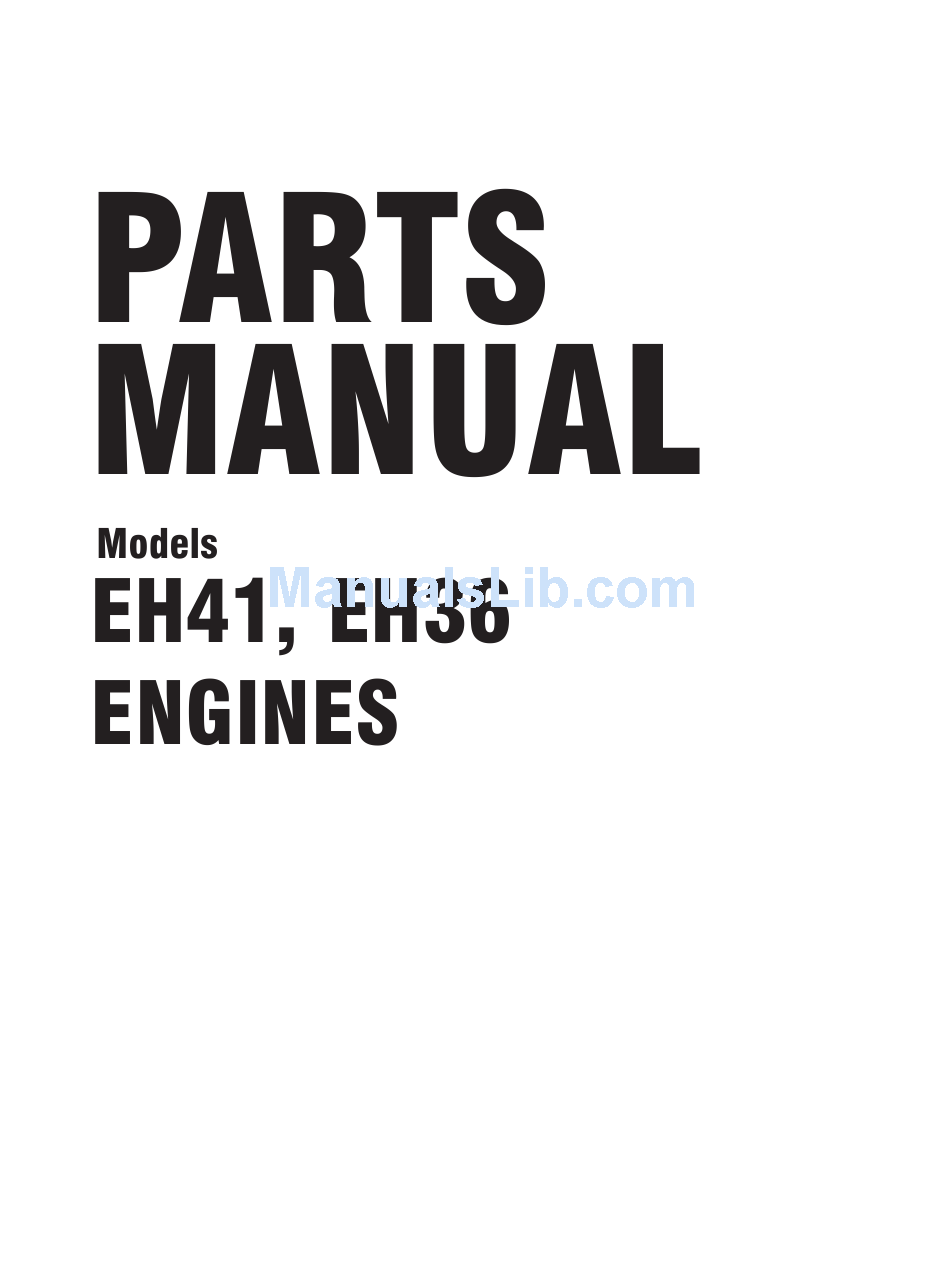

  • Page 1 PUB-EP5728 Rev. 5/99...
  • Page 2 • www.robinamerica.com © Copyright 1999 Robin America, Inc.

  • Page 3: How To Use This Manual

    SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please note the illustration below: E H 4 1 0 X X X X SPEC NO. (11 digits) CODE NO. (4 digits) PRODUCT NO. (15 digits) EH41, EH36 - 3 - '99 - 5...

  • Page 4: Manual Layout

    The part is used in the products with CODE No. of 2101 and after this number. ○ ○ ○ ○ - 2100 The part is used in the products with CODE No. of 2100 and before this number. ○ ○ ○ ○ EH41, EH36 - 4 - '99 - 5...

  • Page 5: Table Of Contents

    L.H. (LH) ....LEFT-HAND SIDE U.S......UNDER SIZE MECH ....MECHANICAL ~V ......VOLTAGE NO (NON) ....NONE ~W ......WATT OPT......OPTIONAL W/ ......WITH O.S......OVER SIZE W/O ......WITHOUT EH41, EH36 - 5 - '99 - 5...

  • Page 6: Crankcase Group

    SECTION 1 CRANKCASE GROUP FIG. 100 EH41, EH36 - 6 - '99 - 5...
  • Page 7 FLANGE BOLT 267-15501-01 ROCKER COVER CP 267-16101-A3 RETAINER PLATE 267-16001-A3 LEAF VALVE 011-00600-10 FLANGE BOLT 267-15201-13 GASKET, ROCKER COVER 031-00600-20 DOWEL PIN 011-00601-30 FLANGE BOLT 085-11000-00 RUBBER PIPE 10 x 15 x 70 EH41, EH36 - 7 - '99 - 5...

  • Page 8: Crankshaft Group

    SECTION 2 CRANKSHAFT GROUP FIG. 200 EH41, EH36 - 8 - '99 - 5...
  • Page 9 PISTON PIN 267-23401-03 PISTON STD. 267-23402-03 PISTON oversized 0.25mm 267-23403-03 PISTON oversized 0.50mm 267-23501-07 PISTON RING SET STD. 267-23502-07 PISTON RING SET oversized 0.25mm 267-23503-07 PISTON RING SET oversized 0.50mm 056-52100-20 CLIP EH41, EH36 - 9 - '99 - 5...

  • Page 10: Intake And Exhaust Group

    SECTION 3 INTAKE and EXHAUST GROUP FIG. 300 Optional Spark Arrestor Screen EH41, EH36 - 10 - '99 - 5...
  • Page 11 CLEANER BASE CP -201 267-35004-03 PACKING -202 270-32720-08 PACKING -210 267-35002-11 CLEANER COVER -250 267-35005-03 LABEL, CONTROL 011-00601-01 FLANGE BOLT 267-35003-01 CLEANER ELEMENT CP 267-32901-03 INSULATOR 267-35901-A3 GASKET, INSULATOR 002-38060-00 FLANGE NUT EH41, EH36 - 11 - '99 - 5...

  • Page 12: Governor Group

    SECTION 4 GOVERNOR GROUP FIG. 410 EH41, EH36 - 12 - '99 - 5...
  • Page 13 STOP PLATE 021-70600-60 FRICTION WASHER 227-45002-03 SPRING WASHER 004-31061-80 SCEW, PANHEAD 002-27060-00 235-43901-13 CLAMP 004-36051-60 SCEW AND WASHER AY 004-31040-80 SCREW - 4383 017-60600-30 SELF LOCK NUT i/w 017-60600-20 267-45101-03 RETURN SPRING EH41, EH36 - 13 - '99 - 5...

  • Page 14: Cooling And Starting Group

    SECTION 5 COOLING and STARTING GROUP FIG. 500 EH41, EH36 - 14 - '99 - 5...
  • Page 15 246-50120-08 REEL 106-50113-08 STARTER ROPE i/w 226-50113-08 261-50100-08 STARTER KNOB 246-50125-08 RATCHET 246-50130-08 FRICTION SPRING 227-50135-08 RETURN SPRING 224-50150-08 STARTER PULLEY 246-50160-08 RATCHET GUIDE 227-50152-08 SET SCREW 011-00600-10 FLANGE BOLT 001-65081-20 BOLT EH41, EH36 - 15 - '99 - 5...

  • Page 16: Fuel Group

    SECTION 6 FUEL GROUP FIG. 600 EH41, EH36 - 16 - '99 - 5...
  • Page 17 RUBBER PIPE 6 x 12 x 100 mm 056-11100-20 HOSE CLAMP 052-10700-42 BANJO 001-13082-00 BOLT AND WASHER AY 085-10600-00 RUBBER PIPE 6 x 12 x 250 mm 056-11100-20 HOSE CLAMP 056-11200-40 HOSE CLAMP EH41, EH36 - 17 - '99 - 5...
  • Page 18 SECTION 6 FUEL GROUP FIG. 600 EH41, EH36 - 18 - '99 - 5...
  • Page 19 ADJUST SCREW 230-62446-08 SPRING 106-62411-08 AIR JET EH41 266-62410-08 AIR JET EH36 246-62410-08 AIR JET 247-62550-08 236-62680-08 SEAL 246-62551-08 246-62425-08 GUIDE HOLDER -250 267-62451-08 BRACKET -251 267-62452-08 SCREW 246-45006-01 KNOB CP 024-10200-10 GROMMET EH41, EH36 - 19 - '99 - 5...

  • Page 20: Electric Device Group - Recoil Start

    SECTION 7A ELECTRIC DEVICE GROUP - RECOIL START FIG. 700 EH41, EH36 - 20 - '99 - 5...
  • Page 21 BOLT AND WASHER AY 267-73101-01 WIRE 1 CP 066-00003-61 SWITCH AY 015-00400-90 TAPPING SCREW 056-60002-50 CLAMP 227-75001-03 GROMMET X65-01403-00 SPARK PLUG NGK BP6ES 065-01404-80 SPARK PLUG NGK BPR6ES 065-50002-30 SPARK PLUG CAP EH41, EH36 - 21 - '99 - 5...

  • Page 22: Electric Device Group - Electric Start

    SECTION 7B ELECTRIC DEVICE GROUP - ELECTRIC START FIG. 710 EH41, EH36 - 22 - '99 - 5...
  • Page 23 WIRE 2 CP 224-73102-01 WIRE 3 CP 232-73105-01 WIRE 5 CP 209-73210-01 WIRE 10 CP 002-27060-00 003-20060-00 SPRING WASHER 066-10000-10 MAGNETIC SWITCH 003-20050-00 SPRING WASHER 002-17050-00 224-73201-01 WIRE 20 CP 214-78501-03 WIRE CASING EH41, EH36 - 23 - '99 - 5...

  • Page 24: Electric Device Group - Electric Starter

    SECTION 7C ELECTRIC DEVICE GROUP - ELECTRIC STARTER FIG. 720 EH41, EH36 - 24 - '99 - 5...
  • Page 25 REAR COVER AY 113-70510-08 CASE METAL 235-70575-08 THROUGH BOLT 235-70555-08 WASHER KIT 214-70560-08 FRONT METAL 235-70565-08 M BUSH 1 235-70566-08 M BUSH 2 246-70580-08 O-RING 214-79007-01 BOLT, STARTER 003-10080-00 WASHER 003-20080-00 SPRING WASHER EH41, EH36 - 25 - '99 - 5...

  • Page 26: Electric Device Group - Oil Sensor

    SECTION 7D ELECTRIC DEVICE GROUP - OIL SENSOR FIG. 760 EH41, EH36 - 26 - '99 - 5...
  • Page 27 SECTION 7D ELECTRIC DEVICE GROUP - OIL SENSOR REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. KS3-11020-01 OIL SENSOR CP 11 214-73122-01 WIRE 22 CP 056-60002-50 CLAMP 011-00600-10 FLANGE BOLT EH41, EH36 - 27 - '99 - 5...
  • Page 28 PRINTED IN THE USA...
