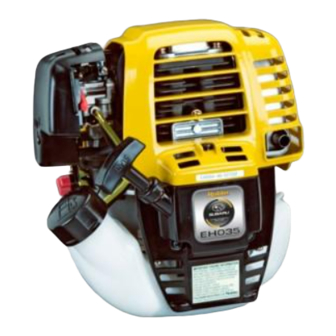

Robin America EH035 Parts Manual

Hide thumbs Also See for EH035:

Advertisement

Quick Links

Download this manual See also: Service Manual
PARTS
MANUAL
Models
EH035
ENGINE
PUB-EP5862
Rev. 06/04

Advertisement

loading
Need help?

Need help?

Do you have a question about the EH035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robin America EH035

Summary of Contents for Robin America EH035

  • Page 1 PARTS MANUAL Models EH035 ENGINE PUB-EP5862 Rev. 06/04...
  • Page 2 940 Lively Blvd. • Wood Dale, IL 60191 • USA • Phone: 630-350-8200 • Fax: 630-350-8212 e-mail: sales@robinamerica.com • www.robinsubaru.com © Copyright 2004 Robin America, Inc.
  • Page 3 HOW TO USE THIS MANUAL Robin engines are identifi ed by MODEL, SPECIFICATION, and CODE NUMBER. For each model there may be many different versions called specifi cations. Each specifi cation will be unique in some way. The difference may only be the paint color or it may have a different type of PTO or some other signifi...
  • Page 4 MANUAL LAYOUT 1. SECTION NAME Parts are broadly classifi ed according to their functions. Refer to the Group Index (table of contents) for respective section name. 2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section (i.e..:Electrical Device Group).
  • Page 5 GROUP INDEX Group Name Page CRANKCASE GROUP ................6 CRANKSHAFT, PISTON GROUP .............. 8 INTAKE and EXHAUST GROUP.............. 10 COOLING and STARTING GROUP............14 FUEL, LUBRICANT GROUP..............16 ELECTRIC DEVICE GROUP ..............18 CLUTCH GROUP ..................20 ACCESSORY GROUP................24 INDEX OF DESCRIPTION SYMBOLS SYMBOL DESCRIPTION...
  • Page 6 SECTION 1 CRANKCASE GROUP FIG. 100 EH035 - 6 - 06-04...
  • Page 7 SECTION 1 CRANKCASE GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 593-10050-00 CYLINDER BLOCK AY 011-90594-70 SOCKET HEAD BOLT 011-90598-60 SOCKET HEAD BOLT 592-65006-00 OIL GAUGE 021-31699-90 GASKET 593-65000-00 OIL CASE 593-65001-00 GASKET, CASE 004-36051-80 SCREW AY 592-15014-00 SPACER 593-10040-00 ROCKER COVER CP 593-15008-00...
  • Page 8 SECTION 2 CRANKSHAFT, PISTON GROUP FIG. 200 EH035 - 8 - 06-04...
  • Page 9 SECTION 2 CRANKSHAFT, PISTON GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 593-20030-00 CRANKSHAFT 044-01299-50 OIL SEAL, L 044-01099-70 OIL SEAL, S 593-25010-00 CLIP 013-00699-40 BOLT 593-25009-00 PISTON PIN 593-25004-00 PISTON 593-20040-00 PISTON RING SET 056-50999-90 CLIP EH035 - 9 - 06-04...
  • Page 10 SECTION 3 INTAKE and EXHAUST GROUP FIG. 300 EH035 - 10 - 06-04...
  • Page 11 SECTION 3 INTAKE and EXHAUST GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 592-35005-01 CAMGEAR SHAFT 593-30030-00 CAMGEAR AY 592-35000-01 CAMLIFTER 592-35006-00 CAMLIFTER SHAFT 593-35002-00 VALVE SPRING 593-35003-00 RETAINER SPRING 593-35005-00 INTAKE VALVE 593-35004-00 EXHAUST VALVE 593-35001-00 ROCKER SHAFT 593-35000-00 PUSH ROD 593-30020-00...
  • Page 12 SECTION 3 INTAKE and EXHAUST GROUP FIG. 300 EH035 - 12 - 06-04...
  • Page 13 SECTION 3 INTAKE and EXHAUST GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 024-01399-70 O RING 024-01599-90 O RING 593-60020-00 CARBURETOR Walboro Part Number WYL-173-1 The following kits are available from Walboro Carburetor Repair Kit - K20-WYL Gasket/Diahpragm Kit - D11-WYL EH035 - 13 - 06-04...
  • Page 14 SECTION 4 COOLING and STARTING GROUP FIG. 400 EH035 - 14 - 06-04...
  • Page 15 SECTION 4 COOLING and STARTING GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 593-55002-00 BLOWER HOUSING 011-90595-31 SCREW and WASHER 593-35006-00 INSULATOR, CARBURETOR 004-36051-80 SCREW AY 014-00593-70 SCREW AY 593-55007-00 CYLINDER COVER Yellow 593-55015-00 CYLINDER COVER EH035AX0306 593-55005-00 PLUG COVER 014-00593-70 SCREW AY 014-00594-80...
  • Page 16 SECTION 5 FUEL LUBRICANT GROUP FIG. 500 EH035 - 16 - 06-04...
  • Page 17 SECTION 5 FUEL LUBRICANT GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 593-65002-00 FUEL TANK 592-60160-00 FUEL TANK CAP 523-65039-00 FILTER 593-60030-00 TUBE 056-10599-90 HOSE CLAMP 503-65002-00 PLATE 503-65003-00 PLATE 519-65003-01 DAMPER EH035 - 17 - 06-04...
  • Page 18 SECTION 6 ELECTRIC DEVICE GROUP FIG. 600 EH035 - 18 - 06-04...
  • Page 19 SECTION 6 ELECTRIC DEVICE GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 593-70010-20 FLYWHEEL 593-70010-10 IGNITION COIL 014-00499-20 SCREW 525-70180-01 WIRE CP EH035AX0302 EH035AX0303 Phat Boy EH035AX0304 EH035AX0305 EH035AX0307 Vibra Strike/Lindley EH035AX0308 Zooma - APP EH035AX0309 Mosquito/Apache 593-70040-00 WIRE CP EH035AX0306 592-70030-00 WIRE CP...
  • Page 20 SECTION 7 CLUTCH GROUP FIG. 700 EH035 - 20 - 06-04...
  • Page 21 SECTION 7 CLUTCH GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 531-80030-10 CLUTCH SHOE 593-80010-10 CLUTCH SHOE EH035AX0303 Phat Boy EH035AX0306 020-00898-00 WASHER 531-80030-20 SPRING 593-80010-20 SPRING EH035AX0303 Phat Boy 593-85000-00 CLUTCH BOLT EH035AX0306 EH035 - 21 - 06-04...
  • Page 22 SECTION 8 ACCESSORY GROUP FIG. 800 EH035 - 22 - 06-04...
  • Page 23 SECTION 8 ACCESSORY GROUP REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG. 592-90020-00 TOOL 593-90030-00 TOOL EH035AX0303 Phat Boy EH035AX0306 073-63899-61 LABEL, CAUTION 593-95012-00 LABEL, MODEL EH035 - 23 - 06-04...
  • Page 24 PRINTED IN THE USA...
