Robin America EH12-2 Parts Manual

Robin America EH12-2 Parts Manual

Hide thumbs Also See for EH12-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
PUB-EP5713
Rev. 7/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH12-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Robin America EH12-2

Summary of Contents for Robin America EH12-2

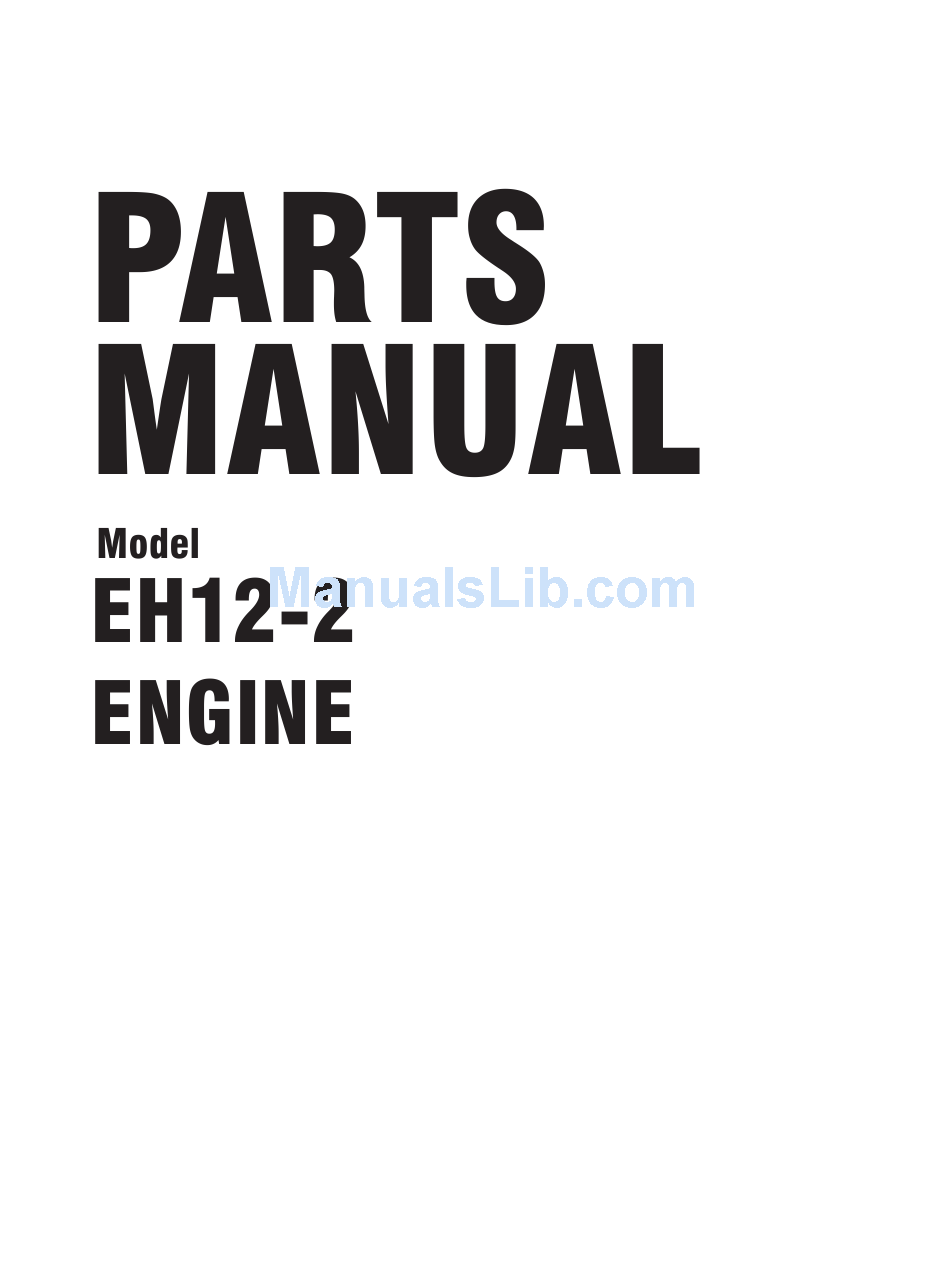

  • Page 1 PUB-EP5713 Rev. 7/99...
  • Page 2 • www.robinamerica.com © Copyright 1999 Robin America, Inc.

  • Page 3: How To Use This Manual

    SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please note the illustration below: E H 1 2 2 X X X X SPEC NO. (11 digits) CODE NO. (4 digits) PRODUCT NO. (15 digits) EH12-2 - 3 - '99 - 7...

  • Page 4: Manual Layout

    The part is used in the products with CODE No. of 2101 and after this number. ○ ○ ○ ○ - 2100 The part is used in the products with CODE No. of 2100 and before this number. ○ ○ ○ ○ EH12-2 - 4 - '99 - 7...

  • Page 5: Table Of Contents

    L.H. (LH) ....LEFT-HAND SIDE U.S......UNDER SIZE MECH ....MECHANICAL ~V ......VOLTAGE NO (NON) ....NONE ~W ......WATT OPT......OPTIONAL W/ ......WITH O.S......OVER SIZE W/O ......WITHOUT EH12-2 - 5 - '99 - 7...

  • Page 6: Crankcase Group

    SECTION 1 CRANKCASE GROUP FIG. 100 EH12-2 - 6 - '99 - 7...
  • Page 7 BREATHER COVER CP 253-14401-11 BREATHER PLATE CP 253-16006-33 GASKET, BREATHER COVER 2 011-00600-30 FLANGE BOLT 085-10800-00 RUBBER PIPE CYCLONE A/C 8 x 11 x 80 246-10802-03 RUBBER PIPE FOAM AIR CLEANER 252-99001-07 GASKET SET EH12-2 - 7 - '99 - 7...

  • Page 8: Crankshaft Group

    SECTION 2 CRANKSHAFT GROUP FIG. 200 EH12-2 - 8 - '99 - 7...
  • Page 9 PISTON STD. 268-23402-03 PISTON oversize 0.25 mm 268-23403-03 PISTON oversize 0.50 mm 252-23501-07 PISTON RING SET STD. 252-23502-07 PISTON RING SET oversize 0.25 mm 252-23503-07 PISTON RING SET oversize 0.50 mm 215-25004-03 CLIP EH12-2 - 9 - '99 - 7...

  • Page 10: Intake And Exhaust Group

    SECTION 3 INTAKE and EXHAUST GROUP FIG. 300 CYCLONE AIR CLEANER, TOP INLET TYPE FOAM AIR CLEANER EH12-2 - 10 - '99 - 7...
  • Page 11 253-35901-03 GASKET 3, INSULATOR 227-35901-03 GASKET, INSULATOR 011-00601-30 FLANGE BOLT 236-35903-03 GASKET 2, INSULATOR 226-39212-00 NUT AND WASHER AY CYCLONE top inlet type 002-38060-00 FLANGE NUT FOAM AIR CLEANER type 002-38060-00 FLANGE NUT EH12-2 - 11 - '99 - 7...

  • Page 12: Governor Group

    SECTION 4 GOVERNOR GROUP FIG. 400 MANUAL THROTTLE CONTROL with REMOTE CABLE OPTION MANUAL ONLY THROTTLE EH12-2 - 12 - '99 - 7...
  • Page 13 SCREW 002-27060-00 011-00600-50 FLANGE BOLT manual w/remote cable option 011-00600-30 FLANGE BOLT manual control only 253-44200-13 WIRE BRACKET manual w/remote cable option 004-31040-80 SCREW manual w/remote cable option 002-27060-00 manual w/remote cable option EH12-2 - 13 - '99 - 7...

  • Page 14: Cooling And Starting Group

    SECTION 5 COOLING and STARTING GROUP FIG. 500 EH12-2 - 14 - '99 - 7...
  • Page 15 HEAD COVER 268-50201-00 RECOIL STARTER AY 270-50115-08 SPIRAL SPRING 269-50120-08 REEL 269-50110-08 STARTER ROPE 261-50100-08 STARTER KNOB 270-50125-08 RATCHET 227-50131-08 FRICTION SPRING 268-50145-08 STARTER PULLEY 270-50261-08 RATCHET GUIDE 227-50152-08 SET SCREW 011-00600-10 FLANGE BOLT EH12-2 - 15 - '99 - 7...

  • Page 16: Fuel Group

    SECTION 6 FUEL GROUP FIG. 600 EH12-2 - 16 - '99 - 7...
  • Page 17 FUEL TANK CAP CP 064-13600-10 FUEL FILTER 064-20084-00 FUEL STRAINER AY 064-20042-20 FILTER 064-20064-10 PACKING 064-20078-10 064-20084-10 064-20084-20 O-RING 064-20047-90 SCREW, PANHEAD 269-62601-01 FUEL PIPE CP 269-68001-03 RUBBER PIPE 056-11100-20 HOSE CLAMP 011-00600-30 FLANGE BOLT EH12-2 - 17 - '99 - 7...

  • Page 18: Carburetor

    SECTION 6 CARBURETOR FIG. 610 EH12-2 - 18 - '99 - 7...
  • Page 19 CYCLONE, top inlet type 246-62435-08 ADJUST SCREW 209-62445-08 SPRING 247-62550-08 CAP, CHOKE CYCLONE, top inlet type 236-62680-08 SEAL CYCLONE, top inlet type 236-62445-08 SPRING 235-62425-08 GUIDE HOLDER -101 236-62631-08 RING CYCLONE, top inlet type -121 246-62551-08 EH12-2 - 19 - '99 - 7...

  • Page 20: Electric Device Group - Recoil Start

    SECTION 7A ELECTRIC DEVICE GROUP - RECOIL START FIG. 700 EH12-2 - 20 - '99 - 7...
  • Page 21 IGNITION COIL CP 001-14062-50 BOLT AND WASHER AY 066-00003-61 SWITCH AY 015-00400-90 TAPPING SCREW 056-60001-90 CLAMP 056-61200-50 CLAMP w/OIL SENSOR 065-01401-00 SPARK PLUG NGK B6ES 065-01405-80 SPARK PLUG NGK BR6ES 065-50000-51 SPARK PLUG CAP EH12-2 - 21 - '99 - 7...

  • Page 22: Electric Device Group - Electric Start

    SECTION 7D ELECTRIC DEVICE GROUP - OIL SENSOR FIG. 760 EH12-2 - 22 - '99 - 7...
  • Page 23 OIL SENSOR CP 13 w/OIL SENSOR 214-73122-01 WIRE 22 CP w/OIL SENSOR 206-75501-01 CLAMP CP w/OIL SENSOR 207-75001-01 CLAMP CP w/OIL SENSOR 056-60002-60 214-79003-01 CLAMP CP w/OIL SENSOR 001-10081-60 BOLT AND WASHER AY w/OIL SENSOR EH12-2 - 23 - '99 - 7...

  • Page 24: Electric Device Group - Electric Starter

    PRINTED IN THE USA...
