Seorim Technology AKR-301 User Manual

Miniaute dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

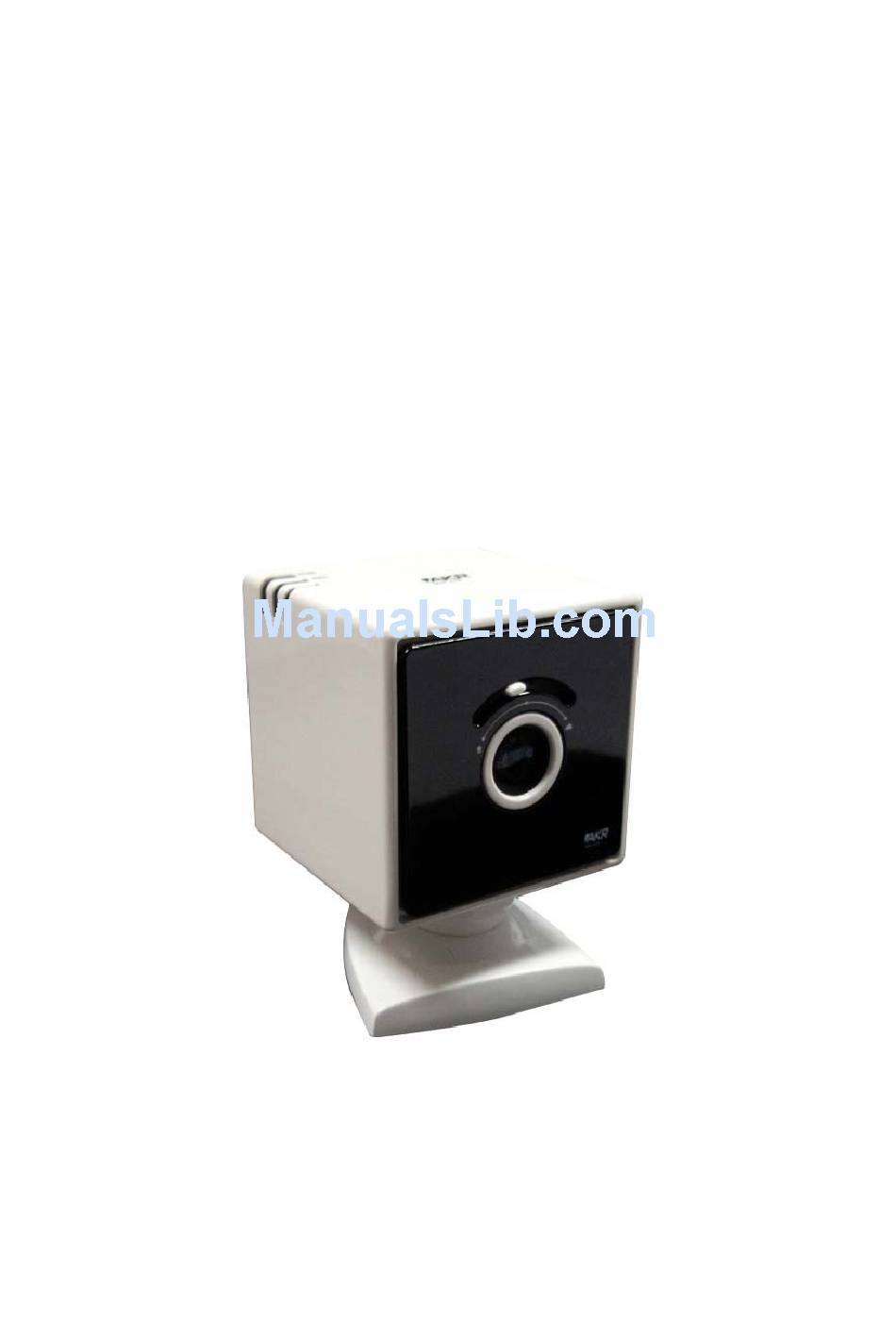

AKR-301 Full Manual V.1.0
Miniature DVR
AKR-301
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKR-301 and is the answer not in the manual?

Questions and answers

Related Manuals for Seorim Technology AKR-301

Summary of Contents for Seorim Technology AKR-301

  • Page 1 AKR-301 Full Manual V.1.0 Miniature DVR AKR-301 User’s Manual...
  • Page 2 This AKR-301 is manufactured to meet international safety standards. Review the following safety precautions to avoid injury and prevent damage to the AKR-301 or any products connected to it. 1. Use a correct power source. Do not connect this product to a power source that supplies more than the specified voltage (DC12V), as this will cause damage to the unit.

  • Page 3: Table Of Contents

    REMOTE CONTROLLER PANEL Chapter 4: Getting Started OVERVIEW OF SET UP PROCEDURES Chapter 5: Hardware Installation SD Memory INSTALLATION CONNECTING THE AKR-301 TO YOUR TV SET OR MONITOR ALARM INSTALLATION Chapter 6: AKR-301Menu 1. ACCESS TO OSD MENU 2. MAIN MENU 3.
  • Page 4 AKR-301 Full Manual V.1.0 6. SEARCH LIST 6.1 SEARCH FACTOR 7. SUB MENU 7.1 PASSWORD CHANGE 7.2 MEMORY SYNC Appendix: TECHNICAL SPECIFICATIONS RECORDING TIME TABLE...

  • Page 5: Chapter 1: Packing Contents

    AKR-301 Full Manual V.1.0 Chapter 1: Packing Contents ▶ Contents in the package AKR-301 Main Unit Remote Control AV-OUT Cable 12V Power Supply Installation CD Quick Guide SD Card (Option) USB SD Reader (Option)

  • Page 6: Chapter 2: Getting To Know Your Akr-301

    ⑧ ⑪ ⑦ This chapter briefly describes the functions of each connection and LED on AKR-301. For more details on the set-up and operation of AKR-301, refer to Chapter 6, AKR-301 MENU. Recording LED This light indicates while AKR-301 is recording.
  • Page 7 Insert SD Card into the data storage slot. Remote Controller Receiver The remote control must be pointing at the AKR-301 and be in line of sight to work. Reset Pressing the reset button will return the AKR-301 setting to factory default.

  • Page 8: Chapter 3: Remote Controller

    AKR-301 Full Manual V.1.0 Chapter 3: Remote Control REC: Starts AKR-301 recording. MENU: Enters the AKR-301 ‘MENU’ mode. UP/ DOWN buttons to chooses menu fields and changes values. Plays recorded video forward. Plays recorded video backward. REW: Fast Rewind button FF: Fast forward button PLAY: The button to start video playback.

  • Page 9: Chapter 4: Getting Started

    If you use 1GB SD Memory, AKR-301 can record for approximately 2 hours. ● If the power is inappropriately turned off while AKR-301 is in the record mode (i.e. power failure), it will re- enter the record mode automatically when power is re-established.

  • Page 10: Chapter 5: Hardware Installation

    AKR Player. ※ It is recommended that only SanDisk or Transcend SD cards are used, these are compatible with AKR-301. ※ Be sure to turn off AKR-301 first when you take out SD card from the slot.

  • Page 11: Alarm Installation

    AKR-301 Full Manual V.1.0 ② Audio Output Connection (For TV / monitor speaker) Using RCA cable, connect the AUDIO-OUT terminal of AV-OUT cable to AUDIO-IN terminal on your TV.

  • Page 12: Chapter 6: Akr-301Menu

    AKR-301 * * * * Press ‘MENU’ button on the remote control to access the AKR-301 OSD menu. Please refer to ‘Chapter 3: Remote control’ on how to use remote control buttons. Default password is ‘0000’. To change the password; go to ‘[SUB MENU] [PASSWORD CHANGE]’.

  • Page 13: System Setup

    AKR-301 Full Manual V.1.0 3. SYSTEM SETUP NTSC Configure current time and ‘day light saving’ option. On setting the current time, the field order should be as follows; 2004/02/17 = year/month/day 19:44:32 = hour/minute/second 3.1 DAY LIGHT SAVING SELECT ‘ON” when you want to use day light saving time. You can set up a time of period when day light saving is applied.

  • Page 14: Recording Setup

    4.6 DISK OVERWRITE If overwrite is set to ON, the AKR-301 will continue recording while automatically overwriting the oldest recorded files when SD memory storage capacity is full. Set to OFF, the recording will stop when the SD Memory is full.

  • Page 15: Event Setup

    AKR-301 Full Manual V.1.0 5. EVENT SETUP HIGH 5.1 MOTION DETECTION 5.1.1 MOTION (ON / OFF): Select ‘ON” if you want to use motion detection. 5.1.2 SENSITIVIITY (LOW / NORMAL / HIGH): You can select the degree of sensitivity of motion detection.

  • Page 16: Search List

    AKR-301 Full Manual V.1.0 6. SEARCH LIST TIME 2007 / 01 / 01 0 0 : 0 0 2007 / 01 / 31 2 3 : 5 9 SEARCH After entering searching option in the fields, clicking ‘SEARCH’ will list the search results.

  • Page 17: Sub Menu

    7.2 MEMORY SYNC: The index file is automatically generated and stored in the SD card when inserted into AKR-301. If the index file does not match the files actually stored in the SD card, users can synchronize the index file list and the actual file list.

  • Page 18: Appendix

    AKR-301 Full Manual V.1.0 APPENDIX SPECIFICATION ITEM DESCRIPTION CCD Module 1/3” Sony New Structure Super HAD Color CCD Image Device Effective Pixels(HxV) 510x492(NTSC ), 500x582(PAL) Sensitivity 0.9Lux Video Out VBS 1Vpp ±10%, 75ohm Field of View(deg) 90(D) Video Compression format...

  • Page 19: Recording Time Table

    AKR-301 Full Manual V.1.0 OPERATING CONDITIONS -10~50℃(Restricted in CCD Module) Operating Temperature Humidity 20~80% RHG ENCODING CONDITIONS Based on 1GB of storage with the installation of 1 camera. RECORDING TIME TABLE Record Video Signal Video Quality 30 fps 15 fps...
