Seorim Technology AKR-200 Installation & User Manual

H.264 micro dvr
Hide thumbs Also See for AKR-200:
Table of Contents

Advertisement

Quick Links

Download this manual

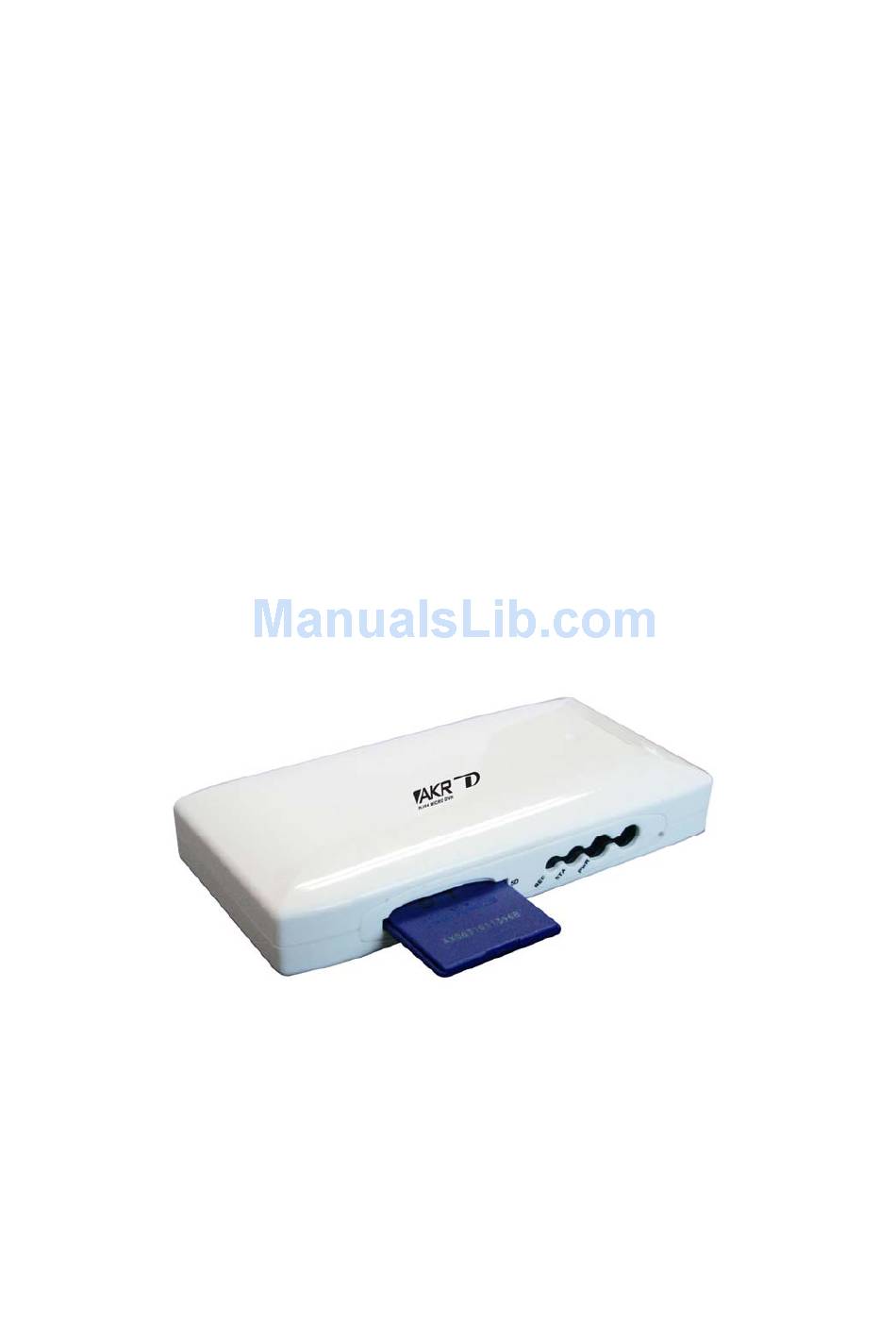

AKR-200 Full Manual V.1.0
H.264
MICRO DVR
AKR-200
Installation &User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKR-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Seorim Technology AKR-200

Summary of Contents for Seorim Technology AKR-200

  • Page 1 AKR-200 Full Manual V.1.0 H.264 MICRO DVR AKR-200 Installation &User’s Manual...
  • Page 2 The AKR-200 is manufactured to meet international safety standards. Read the following safety precautions to avoid injury and prevent damage to the AKR-200 or any products connected to it. 1. Use a correct power source. Do not connect this product to a power source that supplies more than the specified voltage (DC12V), as this will cause damage to the unit.

  • Page 3: Table Of Contents

    AKR-200 Full Manual V.1.0 TABLE OF CONTENTS Chapter 1: Packing Contents CONTENTS IN THE PACKAGE Chapter 2: Getting To Know Your AKR-200 AKR-200 Chapter 3: Remote control REMOTE CONTROL PANEL Chapter 4: Getting Started OVERVIEW OF SET UP PROCEDURES Chapter 5: Hardware Installation...
  • Page 4 AKR-200 Full Manual V.1.0 5. EVENT SETUP 5.1 ALARM SETUP 5.1.1 ALARM INPUT 5.1.2 INPUT TYPE 5.1.3 ALARM OUTPUT 5.1.4 OUTPUT TYPE 5.2 MOTION DETECTION 5.2.1 SENSITIVIITY 5.3 SCHEDULE SETUP 5.3.1 TIME 5.3.2 TIME AND EVENT 6. SUB MENU 6.1 PASSWORD CHANGE 6.2 FILE INDEX RENEW...

  • Page 5: Contents In The Package

    AKR-200 Full Manual V.1.0 Chapter 1: Packing Contents ▶ Contents in the package AKR-200 Main Unit Remote Controller AV-IN / AV-OUT Connector Terminal Block 12V Power Supply Installation CD Quick Guide Max. 8GB SD card SD Reader (Option) Can be used(Option)

  • Page 6: Chapter 2: Getting To Know Your Akr

    ⑧ ① This chapter briefly describes the functions of each button on AKR-200. The buttons are used to operate the basic functions of AKR-200, such as recording, playback, fast-forward, reverse play and etc. For more details on the set-up and operation of AKR-200, refer to Chapter 6, AKR-200 MENU.
  • Page 7 AKR-200 Full Manual V.1.0 Sensor-in / Alarm-out The sensor terminal block is used to connect a sensor such as PIR to the AKR-200. If you add motion sensor devices to your AKR-200, the video recording can be triggered by event.
  • Page 8 AKR-200 Full Manual V.1.0 Chapter 3: Remote control Start AKR-200 recording or stops recording. Turn the SD power off when pressing the REC button for 3 seconds. (Recording can resume after 20 seconds) Enter OSD menu. MENU On OSD menu, go to the upper menu.
  • Page 9 AKR-200 Full Manual V.1.0 On playback mode, playback at X1. On OSD menu, enter values. Enter Search menu. SEARCH On search menu, move to upper search menu. Switch between playback mode and live view mode. MODE Remote Controller Functions of LIVE MODE and PLAY Remote PLABACK MODE...

  • Page 10: Sd Memory Installation

    AKR-200 does not record nor play the recorded stream. It just shows the current images from camera connected to AKR-200. ● The default values of AKR-200 for recording are set up at 30 frames per second with normal video quality. If you use 1GB SD Memory, AKR-200 can record approximately for 2 hours in a row.

  • Page 11: Connecting Akr-200 To Your Tv Set Or Monitor

    ① Video Input/Output Connection (For TV / monitor screen display) To display images from the AKR-200, connect the video output signal to your monitor or Television. Any Television with a VIDEO INPUT terminal is suitable for displaying the images. The diagram above shows the video signal connections.
  • Page 12 Attention Do not take out the SD card or turn off AKR-200 while it is in record mode. It may damage SD card. When in record mode, turn off SD power by first pressing recording button for 3 seconds and then take...

  • Page 13: Alarm Installation

    AKR-200 Full Manual V.1.0 ALARM INSTALLATION The AKR-200 has an internal switch for sounding an alarm. When a sensor is triggered, the alarm is activated as well. There are two steps to install an alarm. 1. Connect the alarm power lines to the alarm switch terminal.

  • Page 14: Access To Osd Menu

    AKR-200 * * * * Press ‘MENU’ button on remote control to access to AKR-200 OSD menu. Please refer to ‘Chapter 3: Remote control’ about how to use remote control buttons. Password is ‘0000’ as default. The password can be changed on ‘[SUB MENU] [PASSWORD CHANGE]’.

  • Page 15: System Setup

    AKR-200 Full Manual V.1.0 3. SYSTEM SETUP English NTSC High Configure current time and ‘DAY LIGHT SAVING’ option. On setting the current time, the field order should be as follows; 2004/02/17 = year/month/day 19:44:32 = hour/minute/second 3.1 TIME SET > DAY LIGHT SAVING SELECT ‘ON’, when you want to use day light saving time.

  • Page 16: Video Setup

    AKR-200 Full Manual V.1.0 4. VIDEO SETUP 4CIF High High 30 MIN 4.1 RESOLUTION Select video resolution ( 4CIF / 2CIF / CIF) VIDEO INPUT (LIVE VIEW) Resolution - PAL HIGH NORMAL 4CIF 704x576 / 25fps 704x576 / 25fps 704x576 / 25fps...

  • Page 17: Video Quality

    4.7 DISK OVERWRITE If overwrite is set to ON, the AKR-200 will continue recording while automatically overwriting the oldest recorded files when SD memory storage capacity is full. Set to OFF, the recording will stop when the SD Memory is full.

  • Page 18: Alarm Setup

    OFF when events occur. Note: In NORMAL-CLOSE mode, if an intruder cuts the cable line that connects the sensor to the AKR-200, sensor recording starts automatically. In NORMAL-OPEN mode, if an intruder cuts the cable line that connects...

  • Page 19: Motion Detection

    AKR-200 Full Manual V.1.0 5.2 MOTION DETECTION 5.2.1 SENSITIVIITY (LOW / NORMAL / HIGH): You can select the degree of sensitivity of motion detection. Set to HIGH for greater sensitivity to small movements. 5.3 SCHEDULE SETUP Make schedule for the recording time. Up to 4 schedules can be set.

  • Page 20: Live Screen Mode

    AKR-200 Full Manual V.1.0 Chapter 7: SCREEN MODE 1. LIVE SCREEN MODE In live screen mode, ‘time & date’ information, screen message and screen icons are shown on the screen. 1.1. SCREEN MESSAGE Message Description INITIALIZING… Displays when the MINID400 is first booted.

  • Page 21: Search Mode

    AKR-200 Full Manual V.1.0 1.2. SCREEN ICON Displays when in emergency record mode. EMERGENCY Displays when in motion-triggered record mode. MOTION Displays when in sensor-triggered record mode. ALARM Displays when in schedule record mode. TIME Displays when empty space remains less than 5% of the total SD Card storage.

  • Page 22: Search List

    AKR-200 Full Manual V.1.0 2. SEARCH MODE When pressing ‘SEARCH’ button, LOGIN window appears. To Enter ‘Search Mode’, enter 4-digit password. 2.1 SEARCH LIST After pressing ‘SEARCH’ button on TIME remote control, click ‘LIST’. The search results will be listed.

  • Page 23: Search Factor – Both

    AKR-200 Full Manual V.1.0 2.2.3 SEARCH FACTOR – BOTH:‘ When you select BOTH, search factors are combined in multiple conditions such as TIME and ALARM / TIME and MOTION /TIME and MOTION and EMERGENCY etc. 2.2.4 SEARCH FACTOR – NONE: To search all the recorded files stored in the SD.card.
  • Page 24 AKR-200 Full Manual V.1.0 APPENDIX TECHNICAL SPECIFICATION ITEM DESCRIPTION VIDEO Encoding H.264 Input Channel 1 Ch. Input impedance 75 ohm Unbalanced Input Format PAL/NTSC (Auto Detection), Composite, Auto detection function Maximum Input 1.0Vp-p @ 75 Ohm Unbalanced Output Channel 1 Ch.
  • Page 25 AKR-200 Full Manual V.1.0 Alarm Input 1 Ch. TTL(Internal full-up) Output 1 Ch. TTL(Open collector) OPERATING MODE Searching Method Time/Event Operating Mode Live/Playback/Menu VIEWER SOFTWARE Monitoring Environment Client S/W Connection Supporting 1 Client A/Video Input 1Port, Female Stereo Phone Jack(include Jack Conversion Cable)
  • Page 26 AKR-200 Full Manual V.1.0 Approximate Recording Time Table 4CIF (704x480 / D1) Recoding Time (NTSC/PAL): SANDISK – SD/SDHC MEMORY Memory Usable Memory HIGH / 4CIF / 25fps NORMAL / 4CIF /25fps LOW / 4CIF / 25fps 512 MB 480 MB...
