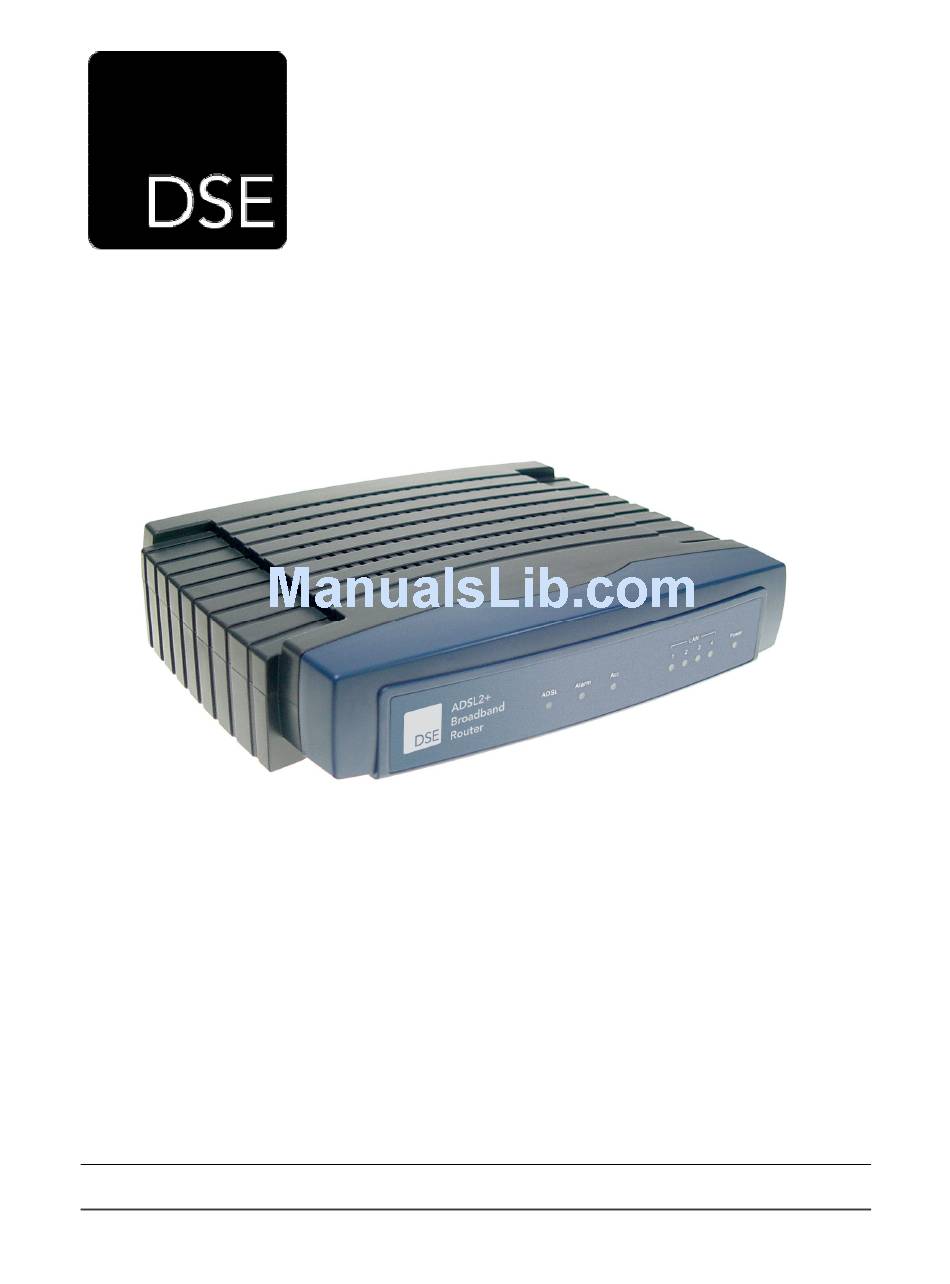

XH9949
DSE ADSL Broadband Router 4-Port
Installation and User Guide
V1.0 – Last Updated on 09/01/07 by Parvez Khan – © Copyright 2007 – DSE(NZ)Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XH9949 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSE XH9949

Summary of Contents for DSE XH9949

  • Page 1 XH9949 DSE ADSL Broadband Router 4-Port Installation and User Guide V1.0 – Last Updated on 09/01/07 by Parvez Khan – © Copyright 2007 – DSE(NZ)Ltd...
  • Page 2 All other brands and product names are trademarks of their respective companies. Copyright Copyright © 2007 by DSE(NZ)Ltd - all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any...
  • Page 3 Telepermit as untested power supplies may affect the routers operation. This DSE XH9949 ADSL Router on Long Lines 5. This DSE XH9949 ADSL Router may not achieve the type of “high speed” operation expected when attached to a line that is longer than intended by the ITU-T G996.1 ADSL standard i.e.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION .......................5 ....................5 ACKAGE ONTENTS ................5 INIMUM YSTEM EQUIREMENTS & S ..................5 EATURES PECIFICATIONS SOFTWARE........................7 CD C ....................7 RIVER ONTENTS SETTING UP ADSL BROADBAND SERVICE ..............8 ADSL ..............8 AKE SURE SERVICE IS ACTIVATED .................8 ONFIGURE YOUR PHONE EQUIPMENT 3.2.1 Option 1: Install ADSL Filter(s) yourself ............9 3.2.2...

  • Page 5: Introduction

    XH9949 – DSE ADSL Router 4-Port 1 Introduction Thank you for purchasing the DSE ADSL Router 4-Port. This modem/router gives you a fast, "Always On" connection to the Internet and is ideal for 1 or more computers in a home or small office environment.
  • Page 6 • Provides integrated access of internet and route function to SOHO users • Advanced DMT modulation and demodulation • Real-time configuration and device monitoring • Reliable ESD and surge-protect function Specifications: • Supporting protocols o G.992.1 (G.dmt) - Annex A/B/C o G.992.2 (G.lite) - Annex A/B/C o ANSI T1.413 o G.992.3 (ADSL2) Annex A/B/C/M and Annex L (RE-DSL) compliant...

  • Page 7: Software

    The bundled software applications fall into 3 categories: 1. OEM – software that DSE has paid for and for which you are able to use subject to the manufacturer or authors license terms. In all cases, you are not permitted to redistribute copies of this software.

  • Page 8: Setting Up Adsl Broadband Service

    • You need to have an account with an Internet Service Provider (ISP) to enable your new ADSL line to connect to the Internet. DSE Stores are able to sign up new users to ADSL with choice of a number of ISPs and plans 3.2 Configure your phone equipment...

  • Page 9: Option 1: Install Adsl Filter(S) Yourself

    XH7556 DSE ADSL filter can be used by plugging the router or modem into the “ADSL” socket. Do not plug an ADSL modem or router into the “PHONE” socket if the modem cord has this •...

  • Page 10: Installation Instructions

    4 Installation Instructions 4.1 Hardware 4.1.1 Front Panel Description The front panel of the XH9949 includes one power indicator (RED LED) and seven function indicators (GREEN LEDs), as explained in the following chart: Indicator Description Status Function Details Power OK...

  • Page 11: Setup The Adsl Router

    XH9949 – DSE ADSL Router 4-Port 4.2 Setup the ADSL Router To Setup the hardware please see the steps below 1. Connect the supplied Ethernet cable (or a longer one if you prefer) to any one of the Ethernet sockets on the back of the router 2.

  • Page 12: Networking Settings

    5 Networking Settings 5.1 TCP/IP Configuration for Windows 98 Use the following steps to configure the manager PC to be a DHCP client. These same steps must be performed for every host PC on your network if you use the DHCP function of the Router.
  • Page 13 XH9949 – DSE ADSL Router 4-Port 1. You have two setting methods: A. Get an IP address from the Router (DHCP) – Make sure that you have the same settings as shown in the following 3 screens. You will need to check...
  • Page 14 B. Configure IP Manually – See steps below. Select Specify an IP address on the IP Address tab. The default IP address of the Router is 192.168.1.2. So please use 192.168.1.X (where X is between 1 and 253, except 2) for the IP Address field and 255.255.255.0 for the Subnet Mask field.

  • Page 15: Tcp/Ip Configuration For Windows 2000

    XH9949 – DSE ADSL Router 4-Port 5.2 TCP/IP Configuration for Windows 2000 Use the following steps to configure the manager PC to be a DHCP client. These same steps must be performed for every host PC on your network if you use the DHCP function of the Router.
  • Page 16 B. Configure IP Manually – Select Use the following IP address. The default IP address of the Router is 192.168.1.2. So please use 192.168.1.X (where X is between 1 and 253, except 2) for the IP Address field, 255.255.255.0 for the Subnet Mask field and 192.168.1.2 for the Default Gateway field as shown below.

  • Page 17: Tcp/Ip Configuration For Windows Xp

    XH9949 – DSE ADSL Router 4-Port 5.3 TCP/IP Configuration for Windows XP Use the following steps to configure the manager PC to be a DHCP client. These same steps must be performed for every host PC on your network if you use the DHCP function of the Router.
  • Page 18 B. Configure IP Manually – Select Use the following IP address. The default IP address of the Router is 192.168.1.2. So please use 192.168.1.X (where X is between 1 and 253, except 2) for the IP Address field, 255.255.255.0 for the Subnet Mask field and 192.168.1.2 for the Default Gateway field as shown below.

  • Page 19: Configuring The Router

    This Windows based utility is designed for quick WAN settings configuration. 1. Insert the DSE CD into your CDROM drive, an Autoplay menu will appear (if the menu does not appear, please run setup.exe located in the root of the CD).
  • Page 20 3. Click on the Quick Setup tab and enter in the setup details provided by your ISP and click Submit, most likely you will only need to change the PPP Username & Password, as the most commonly used setting are already preloaded into the utility and are as follows: Connection Type: PPPoA VPI/VCI : 0/100...

  • Page 21: Web-Based Configuration

    XH9949 – DSE ADSL Router 4-Port 6.1.2 Web-Based Configuration The ADSL Router offers a web-based (HTML) graphical user interface allowing users to manage it using a standard browser – such as Mozilla Firefox or Microsoft Internet Explorer. NOTE: The Web Management feature is far more comprehensive and has additional configuration options that should only be changed by advanced users 1.
  • Page 22 4. Once logged in, navigate via the links on the left to Advanced Setup WAN. There is an existing PPP setting with default values preloaded. To configure, click on Edit 5. Your ISP will have provided you with the necessary setting for ADSL on their network.
  • Page 23 XH9949 – DSE ADSL Router 4-Port 6. Once again leave defaults settings as they are unless your ISP has specified otherwise. Click Next 7. Enter the PPP Username & Password that your ISP provided and click Next...
  • Page 24 8. Once again click Next to continue 9. Verify that the settings are correct and click Save...
  • Page 25 XH9949 – DSE ADSL Router 4-Port 10. Click on Save/Reboot to finalise the router configuration. 11. The router will now reboot. This process will take about 2 minutes...
  • Page 26 12. Once the router has rebooted it will take about another minute for it to connect to the Internet. Navigate via the panel on the left to “Device Info” “WAN”. Once the status shows up and the router acquires a valid IP address from the ISP, you should be able connect to the internet.

  • Page 27: Advanced Management Setup

    XH9949 – DSE ADSL Router 4-Port 7 Advanced Management Setup The ADSL Router offers a web-based (HTML) graphical user interface allowing users to manage it using a standard browser – such as Mozilla Firefox or Microsoft Internet Explorer. NOTE: The Web Management feature is far more comprehensive and has additional configuration options that should only be changed by advanced users 7.1 Changing Default Password...

  • Page 28: Modifying The Default Ip Address

    7.2 Modifying the Default IP Address The default IP address of the router is “192.168.1.2”. This can be changed by going to “Advanced Setup” “LAN”. The router IP address is in the first box. You must use an address from the private address range with an appropriate subnet mask.

  • Page 29: Configure Port Triggering

    XH9949 – DSE ADSL Router 4-Port To setup a virtual server go to “Advanced Setup” “NAT” “Virtual Server”. Click Add. You may either select a predefined service or choose a custom server. If it is a custom server, you will need to specify a name as well. Enter the IP address of the PC that will be hosting the service and select the applicable port numbers and the appropriate protocol TCP, UDP or TCP/UDP.

  • Page 30: Configure Security Rule (Firewall)

    click on save/apply. There is a maximum limit of 32 Port Triggering entries. There is no need to reboot the router. 7.3.3 Configure Security Rule (Firewall) The Firewall is designed to give you basic protection against malicious attacks and it should not be used as a substitute for a full-fledged hardware or software based firewall product.
  • Page 31 XH9949 – DSE ADSL Router 4-Port 7.3.3.2 Configure IP Filtering - Incoming This rule is the exact opposite of “IP Filtering - Outgoing” By default, all incoming IP traffic from WAN is BLOCKED, but some IP traffic can be accepted by setting up filters.

  • Page 32: Upgrading Firmware

    7.4 Upgrading Firmware From time to time DSE will release an updated firmware and post it on the DSE website. This link will be under the Support/Data section under XH9949. The update may be created to address bugs in the previous firmware, to optimise some internal functions or to add new features.

  • Page 33: Support

    XH9949 – DSE ADSL Router 4-Port 8 Support Should you encounter problems with the installation of this device, please follow these steps: 1. Read the Manual carefully and make sure all steps were performed correctly 2. Make sure all cables are connected correctly 3.

  • Page 34: Glossary Of Terms

    10 Glossary of terms Analogue - A continuously varying signal or wave. Telephone transmission and/or switching that is not digital. ADSL - Asymmetric Digital Subscriber Line - A group of DSL technologies that are asymmetric, thereby reserving more downstream bandwidth (coming to the user from the Internet) than upstream bandwidth (going from the user to the Internet).
  • Page 35 XH9949 – DSE ADSL Router 4-Port G.dmt - Also known as full-rate DSL. A type of asymmetric DSL technology, based on DMT modulation, that offers up to 8 Megabits per second downstream bandwidth and 1.544 Megabits per second upstream bandwidth. "G.dmt" is actually a nickname for the standard officially known as ITU-T Recommendation G.992.1.
  • Page 36 RJ-11 Plug - Short for Registered Jack-11, the RJ-11 is a six-wire jack used to connect telephone equipment. Router - The central switching device in a packet-switched computer network that directs and controls the flow of data through the network. Splitter - 1.

  • Page 37: Appendix

    XH9949 – DSE ADSL Router 4-Port 11 Appendix 11.1 Router Default Settings Admin Username admin Admin Password password Router IP Address 192.168.1.2 Subnet Mask 255.255.255.0 ATM Service Category UBR Without PCR Encapsulation PPPoA VC-Mux 11.2 My Settings We suggest you write down your routers’ customised settings for future reference:...

  • Page 38: Isp Settings And Support Detail

    11.3 ISP Settings and Support Detail...
  • Page 39 XH9949 – DSE ADSL Router 4-Port Dick Smith Electronics Stores WHANGAREI: Okara Shopping Centre, 4 Port Rd., Phone: (09) 438 0687, Fax: (09) 438 9635; AUCKLAND: Albany: Don McKinnon Drive, Albany MegaCentre, Phone: (09) 415 7410, Fax: (09) 415 4360; Glenfield: Glenfield Road, (Above Westfield Shopping Town), Phone: (09) 442 2314, Fax: (09) 442 2317;...
