XH1175
DSE ADSL Router UTP 4x LAN

USER MANUAL

V2.5 – Last Updated on 15/03/05 by Leon Kok – © Copyright 2005 – DSE (NZ) Ltd.
This manual describes firmware release 10 v1

Advertisement

Table of Contents
loading

Related Manuals for DSE xh1175

Summary of Contents for DSE xh1175

  • Page 1: User Manual

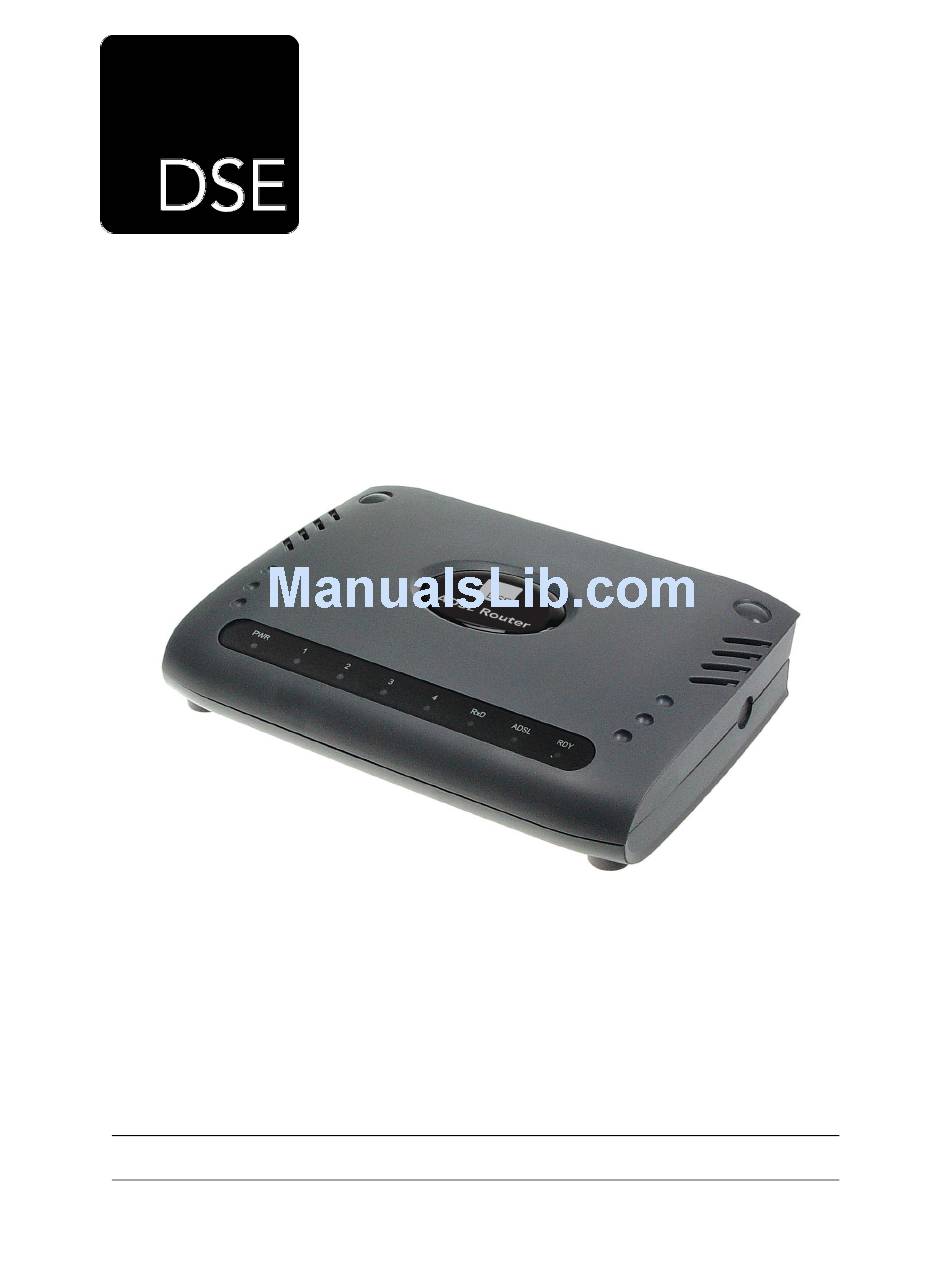

    XH1175 DSE ADSL Router UTP 4x LAN USER MANUAL V2.5 – Last Updated on 15/03/05 by Leon Kok – © Copyright 2005 – DSE (NZ) Ltd. This manual describes firmware release 10 v1...
