Page 1: Quick Setup Guide

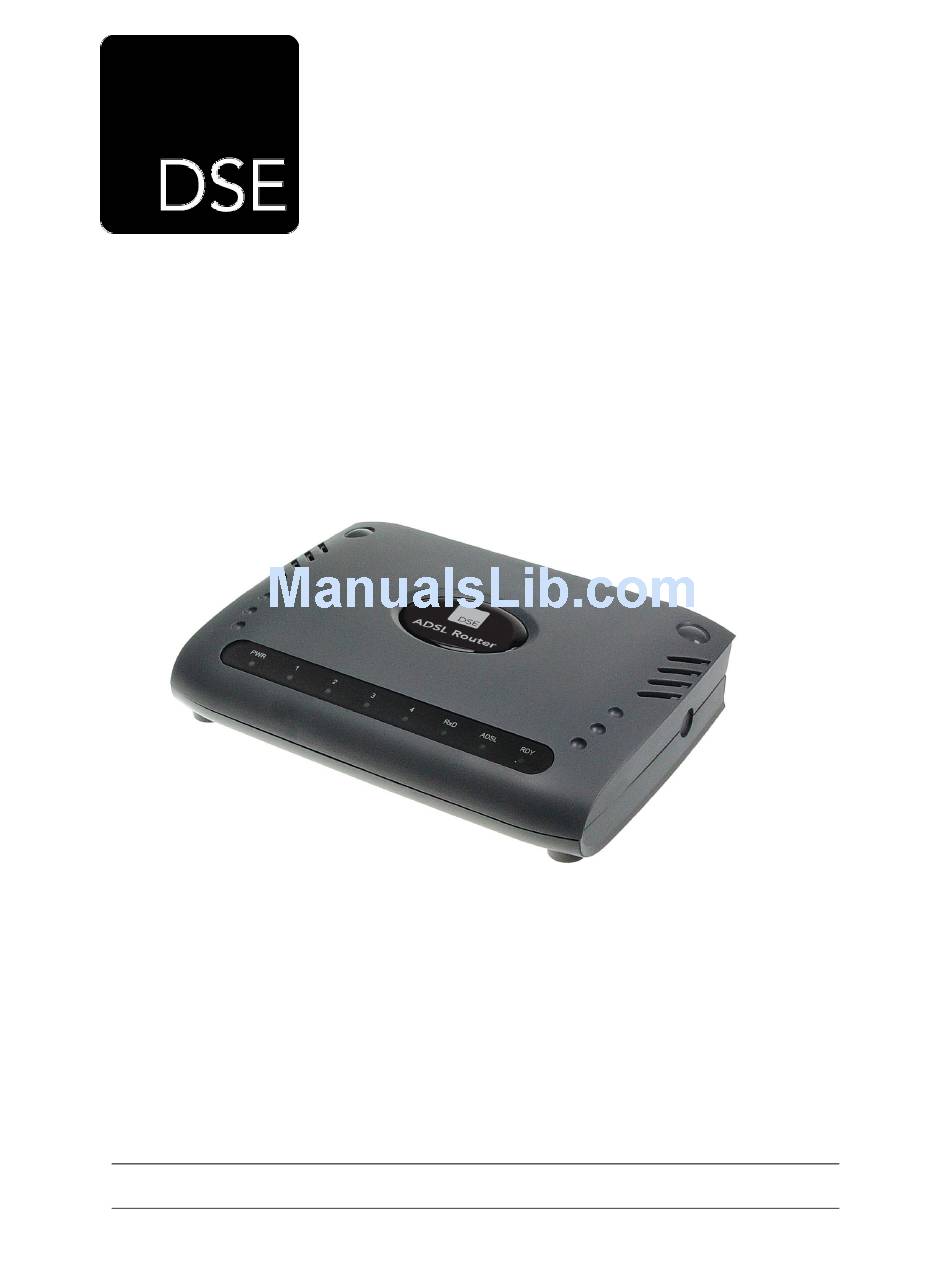

XH1175 DSE ADSL Router UTP 4xLAN Quick Setup Guide V2.2 – Last Updated on 03/11/04 by Leon Kok – © Copyright 2004- DSE(NZ)Ltd... - Page 2 Copyright Copyright 2004 by DSE(NZ)Ltd - all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of DSE(NZ)Ltd.
-
Page 3: Table Of Contents
XH1175 - DSE ADSL Router UTP 4x LAN Table of Contents Introduction........................4 Ensure ADSL Service is Activated ................4 Configure your Phone Equipment .................5 Option 1: Install ADSL Filter(s) yourself ..............5 Option 2: Have an ADSL splitter professionally installed.........6 Connecting the Router to your PC ................7 Router / PC Connection Diagram................7... -
Page 4: Introduction
1 Introduction This guide is a summary of the most common steps that are required to configure the DSE ADSL router to work with a single or multiple PC network. Please note that due to the flexibility of this product there are many ways that your computer/s and this router can be configured. -
Page 5: Configure Your Phone Equipment
However should an adaptor be required between the plug on the modem cord and the jack point, or you wish to connect telephone equipment to the same jack point, the DSE ADSL filter can be used by plugging the router or modem into the “ADSL” socket. •... -
Page 6: Option 2: Have An Adsl Splitter Professionally Installed
CAUTION: Failure to connect ALL telephone type equipment via a filter will result in loss of the data link whenever a call is made or answered. In many cases the link will also be lost when a call is received, even if it is not answered. 3.2 Option 2: Have an ADSL splitter professionally installed Contact Telecom on 123 to arrange for a central splitter to be installed. -
Page 7: Connecting The Router To Your Pc
XH1175 - DSE ADSL Router UTP 4x LAN 4 Connecting the Router to your PC You must have an Ethernet network card or adaptor installed (See Appendix for a list of compatible Ethernet Adaptors for PDAs, Notebooks or PCs) and be running the TCP/IP protocol suite. -
Page 8: Set Up The Router
5 Set up the Router Before you proceed further, make sure that the router is turned on and that it is connected to your PC directly or though a hub/ switch. Restart your PC to ensure that it picks up an IP address from the router’s DHCP server that is enabled by default. -
Page 9: Change The Default Admin & User Passwords
XH1175 - DSE ADSL Router UTP 4x LAN 5.3 Change the default Admin & User passwords This router ships with default passwords to enable new owners and authorised users to set it up. It is very important that the default Admin and User passwords are changed. Failing to do so may lead to unauthorised access of the router, network or computer. -
Page 10: Appendix
6 Appendix 6.1 Router Default Settings Admin Username admin Admin Password password 192.168.1.2 Router IP address Subnet mask 255.255.255.0 ATM Service Category PPPoA VC-Mux Encapsulation DNS Proxy Selection Auto Discovery + User Configured Trellis Enabled Handshake Protocol Autosense – G.dmt first Wiring Selection Tip/Ring Disabled... -
Page 11: Compatible Dse Cables
For high performance Ethernet connection to a LAN port, use one of these cables: Cat-6 XH3291 XH3292 XH3293 XH3294 6.3 Compatible DSE Network Adaptors The following DSE Network Adaptors and cards work with this router. Description Platform Interface Cat No. Notebook CardBus 10/100 Mbps... -
Page 12: Contacting The Dse Support Team
6.5 Contacting the DSE Support Team DSE national support operates Monday to Friday during normal business hours. Email: support@dse.co.nz Phone: (09) 414 2836 Or call into your nearest Dick Smith Electronics store 6.6 My Settings We suggest you write down your routers’ default settings for future reference:... - Page 13 XH1175 - DSE ADSL Router UTP 4x LAN Dick Smith Electronics Stores WHANGAREI: AUCKLAND: 14 John Street, Phone: (09) 438 0687, Fax: (09) 438 9635. Albany: Don McKinnon Drive, Albany MegaCentre, Phone: (09) 415 7410, Fax: (09) 415 4360; Glenfield: Glenfield Road, (Above Westfield Shopping Town), Phone: (09) 442 2314, Fax: (09) 442 2317;...
