DSE XH1151 Installation Manual

Dse broadband router installation guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

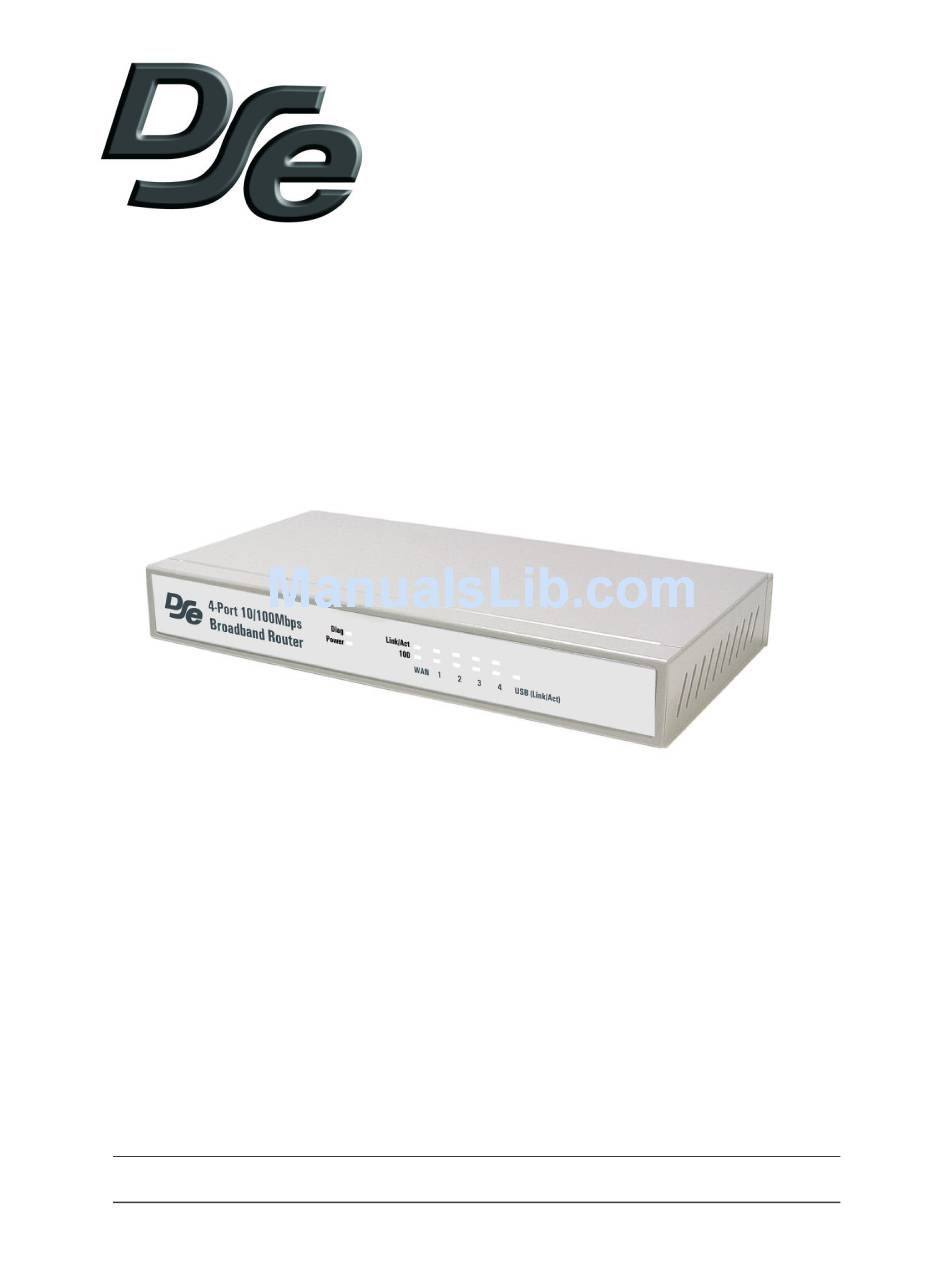

XH1151
DSE Broadband Router

Installation Guide

V1.0 – Last Updated on 25/09/03 by David Chanson – © Copyright 2003- DSE(NZ)Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XH1151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSE XH1151

Summary of Contents for DSE XH1151

  • Page 1: Installation Guide

    XH1151 DSE Broadband Router Installation Guide V1.0 – Last Updated on 25/09/03 by David Chanson – © Copyright 2003- DSE(NZ)Ltd...
  • Page 2 Further, DSE(NZ)Ltd reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

  • Page 3: Table Of Contents

    XH1151 – DSE Broadband Router Contents INTRODUCTION ........................ 3 ..................... 3 ACKAGE ONTENTS ................. 3 INIMUM YSTEM EQUIREMENTS FEATURES & SPECIFICATIONS ..................4 HARDWARE INSTALLATION.................... 6 ........................ 6 RONT ANEL ......................... 7 ANEL ..................... 8 ONNECTING THE ROUTER SOFTWARE CONFIGURATION ..................9 95/98/ME C ................

  • Page 4: Introduction

    Introduction Thank you for purchasing the DSE Broadband Router. This Broadband Router includes 4 10/100Mbps switch ports and a USB printer port. It provides a complete solution for Internet surfing and office resources sharing. This 4 Port Internet Broadband Router provides a simple,...

  • Page 5: Features & Specifications

    XH1151 – DSE Broadband Router 2 Features & Specifications • Conforms to IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards • Provides 1 10/100Mbps WAN interface (RJ-45) to connect to an ADSL or Cable modem • Provides 4-port 10/100Mbps LAN switch to connect your local area network •...
  • Page 6 • Power Supply: DC 7.5V, 1A • Dimensions: 165×86.1×23 mm • Compliance: FCC class B, CE mark class B, NZ EMC. • Chipset: IC Plus Corp IP175A Switch with Winbond W90N740 ARM micro-controller • Warranty: 12 months return to Dick Smith Electronics swap out warranty.

  • Page 7: Hardware Installation

    XH1151 – DSE Broadband Router 3 Hardware installation The following section outlines the steps you will need to take to install the DSE Broadband Router. 3.1 Front Panel The following shows the front panel and the LEDs. LED Activity Diag 1.

  • Page 8: Rear Panel

    3.2 Rear Panel The following shows the rear panel and the ports. DC In DC In: To connect the power adaptor. USB: This is the USB Printer Port to connect your USB printer via USB cable. WAN: To connect the Cable/ADSL modem via a UTP cable with RJ 45 plugs. LAN 1~4: To connect networked PCs or uplink to Switch or Hub.

  • Page 9: Connecting The Router

    XH1151 – DSE Broadband Router 3.3 Connecting the router 1. Power all devices down. This should include your PCs, Cable or ADSL modem and the Router. 2. Connect the Router to your PCs. Connect computers directly to the Router on ports 1~4 on the rear panel.

  • Page 10: Software Configuration

    4 Software Configuration This section contains the installation procedures for various operating systems. Please note that the screenshots may be different to what you will see on your screen. 4.1 Windows 95/98/ME Configuration 1. After you have completed the hardware setup by connecting your devices, you need to configure your computer to connect to the Router.
  • Page 11 XH1151 – DSE Broadband Router 6. Click the “Gateway” tab and record the numbers listed under “Installed gateways.” 7. Click the “DNS Configuration” tab. Locate the DNS servers listed under “DNS Server Search Order”. And Click “OK”. 8. You may need your Windows 95/98/ME CD to copy some files. After it finishes copying,...

  • Page 12: Windows Nt/2000/Xp Configuration

    9. Disable HTTP Proxy. In Internet Explorer, click “Tools” then “Internet Options”, click on the “Connections” tab and click the “LAN Settings” button. Clear all the checkboxes. Click “OK,” and then click “OK” again to close the “Internet Options” window. In Netscape, click “Edit,”...

  • Page 13: Mac Os 7.Xor Above Configuration

    XH1151 – DSE Broadband Router 4.3 MAC OS 7.X or above Configuration Please note that the DSE Support Team can only provide support for MAC OS X. 1. Pull down the Apple Menu. Click “Control Panels” and select TCP/IP. 2. In the TCP/IP dialog box, make sure that “Ethernet” is selected in the “Connect Via:” field.

  • Page 14: Router Configuration

    4. Disable HTTP Proxy In Internet Explorer, click “Edit” then “Preferences”. Select “Proxies”, uncheck all checkboxes and click “OK”. In Netscape, click “Edit” then “Preferences…”. In the “Preferences” window, under “Category” double-click “Advanced,” then click “Proxies.” Select “Direct connection to the Internet” and click “OK”.

  • Page 15: Basic Setup

    XH1151 – DSE Broadband Router 5.2 Basic Setup After entering the correct user name and password, the first page “Basic Setup” will appear. You can set up your connection type to your ISP. After you have finished changing any setting, click the “Apply”...

  • Page 16: Dhcp

    5.2.1 DHCP If your IP Address is provided by your ISP dynamically, choose this option. This is the default setting. 5.2.2 PPPoE User Name: Your User Name provided by your ISP. Password: Your password provided by your ISP. ISP Name: Your ISP name. Connect on Demand: When you enable this function, the router will connect to your ISP at your command.

  • Page 17: Dhcp Settings

    XH1151 – DSE Broadband Router 5.3 DHCP Settings Unless you already have a DHCP server on your internal network, choose “Enable”. A DHCP Server can automatically assign IP Address to each computer in your network. It is highly recommended that you set your broadband router to act as a DHCP server. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address...

  • Page 18: Dhcp Client Table

    5.3.1 DHCP Client Table This table will show you how many network computers have been used on your DHCP server and the IP Address and MAC Address of networked computers connected to the Router. Click “Reload” to update the information. 5.4 URL Access Setting Use URL Access filters to allow or deny computers access to specific Internet domains.

  • Page 19: Ip Access

    XH1151 – DSE Broadband Router 5.5 IP Access This function allows network administrators to restrict up to five groups of specified network users/computers from accessing the certain applications. Before using this function, the network PCs that you want to control the access limitation should be assigned fixed IP Address.

  • Page 20: Virtual Server

    5.6 Virtual Server The router can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN. The router firewall feature filters out unrecognized packets to protect your LAN network so all networked computers connected the router are invisible to the outside world.

  • Page 21: Dmz Host

    XH1151 – DSE Broadband Router 5.7 DMZ Host If you have a computer that cannot run Internet applications properly from behind the router, then you can allow that computer to have unrestricted Internet access. Please note that adding a client to the DMZ may expose that computer to a variety of security risks, so only use this option as a last resort.

  • Page 22: Device Admin

    5.8 Device Admin You can update the router’s firmware, change the password and set up some management functions on this page. It is strongly recommended that you change the default password. Product Name: This is the name of the product. Version: This is the firmware version installed on the router.

  • Page 23: Upgrading The Firmware

    XH1151 – DSE Broadband Router WAN MAC Change: If you want to change the default MAC Address that is set to the WAN’s physical interface MAC address on the Router, enter it here. External Admin: This router allows outside user configuration. This function is also referred to as Remote Management.

  • Page 24: Status Monitor

    5.9 Status Monitor This page displays information on the WAN and LAN sides of the router. Click “Reload” to re-fresh the current information.

  • Page 25: Rip

    XH1151 – DSE Broadband Router 5.10 RIP RIP stands for Routing Information Protocol. RIP sends routing-update messages at regular intervals and when the network topology changes. It uses a single routing metric (hop count) to measure the distance between the source and a destination network. RIP maintains only the best route (the route with the lowest metric value) to a destination.
  • Page 26 Routing Table: Click “Show Routing Table” to see updated routing information.

  • Page 27: Static Routing

    XH1151 – DSE Broadband Router 5.11 Static Routing This page allows you to set static routes. Static Routing: Select the route entry number from 1 to 20 that you want to configure. Destination LAN IP: You can create a static route by entering the IP address of the remote host or network.

  • Page 28: Dynamic Dns

    5.12 Dynamic DNS DDNS keeps dynamic IP addresses (i.e., IP addresses assigned by a DHCP capable router or server) linked to a domain name. Users who have a Dynamic DNS account may use this feature. Dynamic DNS: When an IP address is automatically assigned by a DHCP server, DDNS automatically updates the DNS server.

  • Page 29: Special Application

    XH1151 – DSE Broadband Router 5.13 Special Application Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have difficulties working through NAT. The Special Applications function makes some of these applications work with the router.

  • Page 30: Statistics

    5.14 Statistics This page displays activities occurring on the router. Note: If you are using Windows XP and you have not installed the Java Virtual Machine, you will need to install Sun JRE (Java 2 Runtime Environment) which can be found on the installation...

  • Page 31: Security Setting

    XH1151 – DSE Broadband Router 5.15 Security Setting These security settings can help protect your LAN from some hacker attacks. It will not make your LAN absolutely safe but it will make it safer. DoS stands for Denial of Service. It’s a method hackers use to prevent or deny legitimate users access to a computer.

  • Page 32: Upnp

    5.16 UPnP UPnP stands for Universal Plug and Play. The UPnP service allows computers to discover and use network-based devices. Windows ME and XP include native UPnP services; Windows 98 and 98SE do not include a native UPnP service. You can enable or disable UpnP here.

  • Page 33: Installing The Print Server

    XH1151 – DSE Broadband Router 6 Installing the Print Server 1. Insert the installation CD into the CD-ROM drive. The installation screen should appear automatically. If it doesn’t, double-click on the file “Setup.exe” located on the CD. Click on “Install the Windows Printer Server”.
  • Page 34 4. Click finish to complete the installation. 5. Restart your computer.

  • Page 35: Pc Configuration To Use The Network Printer

    XH1151 – DSE Broadband Router 7 PC Configuration to use the network printer 7.1 Windows 98SE 1. Make sure that your USB printer is working correctly when directly connected to your computer. 2. Unplug it from the computer and plug it to the USB port on the router.
  • Page 36 6. Select “USB Remote Print Port” and click “OK”. 7. On the window that appears, make sure the IP address is your router’s IP address. 8. Click “Choose Printer”.
  • Page 37 XH1151 – DSE Broadband Router 9. Then click “Find”. Your printer will be found. Select it and click “OK”. Click “OK” again. 10. Click on “Start”, then “Run…” and type command. On the DOS screen type wreset.exe and press “Enter”.

  • Page 38: Windows Xp

    7.2 Windows XP 1. Make sure that your USB printer is working correctly when directly connected to your computer. 2. Unplug it from the computer and plug it to the USB port on the router. 3. Click the “Start” button, choose “Control Panel”, “Printers and Faxes” and select your USB printer.
  • Page 39 XH1151 – DSE Broadband Router 6. Select “USB Remote Print Port” and click “New Port”. 7. On the window that appears, make sure the IP address is your router’s IP address. 8. Click “Choose Printer”.
  • Page 40 9. Then click “Find”. Your printer will be found. Select it and click “OK”. Click “OK” again. 10. Select the “Advanced” tab and click on “Print Processor”. Select “WinPrint” on the left and “RAW” on the right. Click “OK”.
  • Page 41 XH1151 – DSE Broadband Router 11. Return to the “Advanced” tab and uncheck “Enable advanced printing features”. Click “Close”. 12. Click on “Start”, then “Run…” and type cmd. On the DOS screen type wreset.exe and press “Enter”. 13. You should now be able to print.

  • Page 42: Troubleshooting

    8 Troubleshooting No lights are lit on the router and the router has no power. • Make sure the power cord is properly connected to the router. • Make sure the power adaptor is properly connected to a functioning power outlet. If it’s in a power strip, make sure the power strip is turned on.

  • Page 43: Support

    9 Support Should you encounter problems with the installation of this device, please follow these steps: 1. Read the Troubleshooting section. Contact the DSE Support Team DSE support operates during normal business hours. – Phone: 09-414-2836 – email: support@dse.co.nz – or call into your nearest Dick Smith Electronics store Note: Consumers are advised not to rely on our ability to provide support for Open Source, GNU, Freeware or Shareware software, as this software is often under continual development.

  • Page 44: Glossary Of Terms

    11 Glossary of terms LAN – Local Area Network Local Area Networking (LAN) is the term used when connecting several computers together over a small area such as a building or group of buildings. LAN's can be connected over large areas.
  • Page 45 XH1151 – DSE Broadband Router IPSec – IP Security IPSec provides a more secure network-to-network connection across the Internet or a Wide Area Network (WAN). IPSec encrypts all communication between the client and server whereas PPTP only encrypts the data packets. Both of these VPN implementations are used because there is not a standard for VPN server software.
  • Page 46 DMZ Host– De-Militarized Zone Host The DMZ is the portion of a private network that is visible through the network's firewalls. The DMZ Host allows a local computer to be exposed to the Internet. Therefore, an incoming packet will be checked by Firewall and NAT algorithms in the router, then passed to the DMZ host when the packet is not sent by a hacker and is not limited by Virtual Server list.
