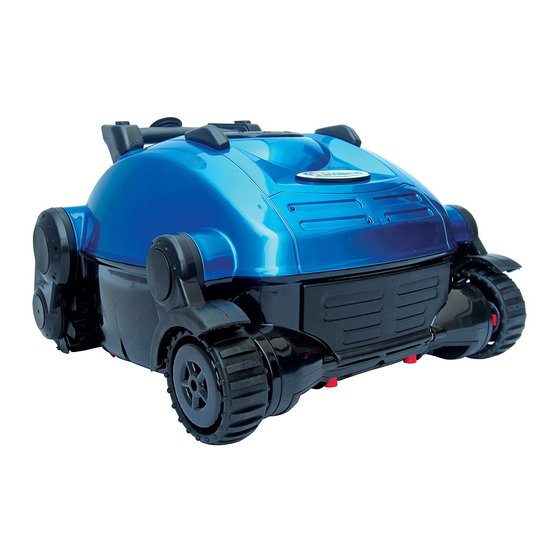

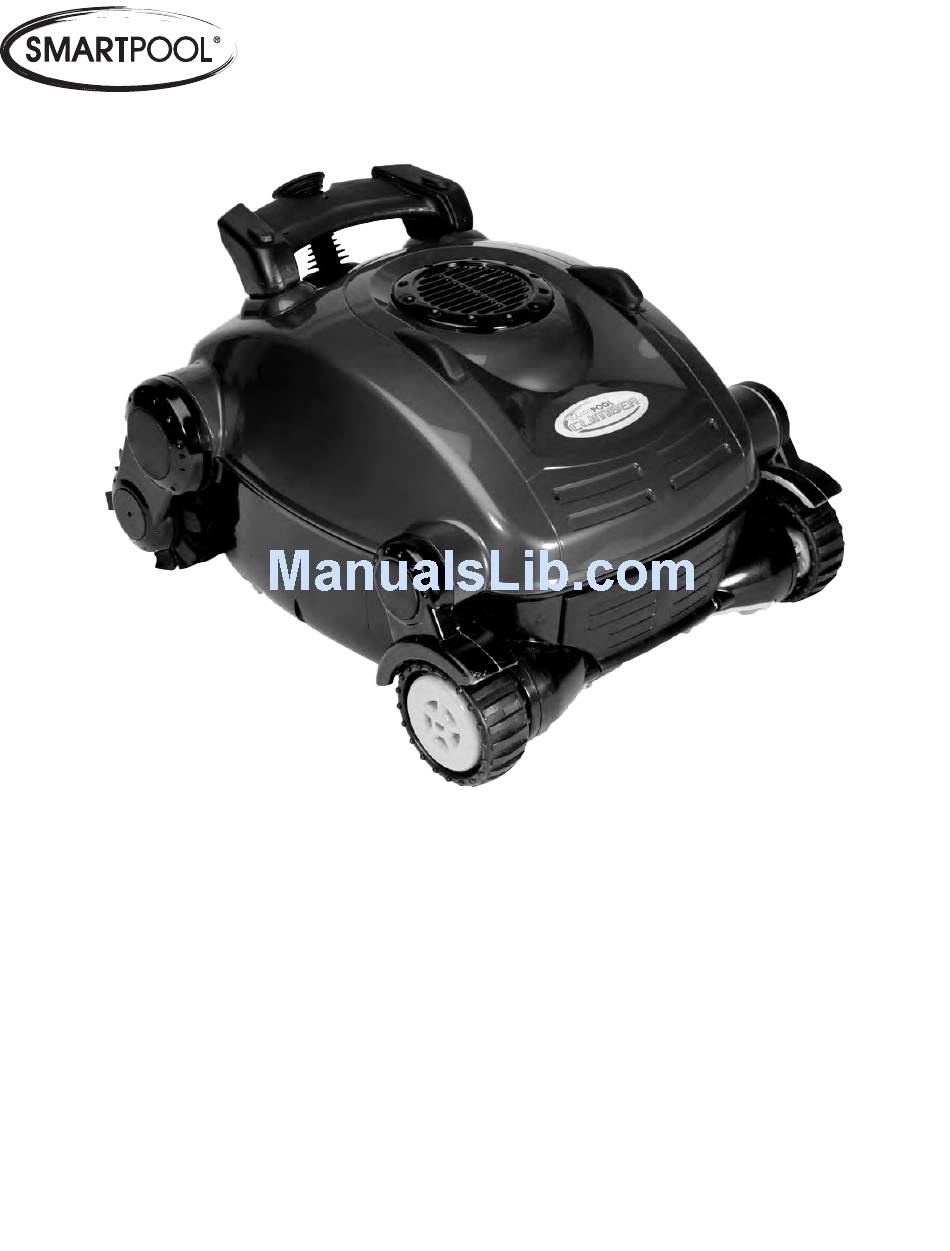

- Page 1 SMARTPOOL CLIMBER NC52 ROBOTIC POOL CLEANER OPERATION MANUAL ™ www.smartpool.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS DANGER: Risk of electrical shock or electrocution – The electrical supply to this product must be installed in accordance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will create an electrical hazard which could result in death or serious injury to pool users or others due to electrical shock, and may also cause damage to property. - Page 3 Congratulations on your purchase of the most technologically advanced automatic pool vacuum available today. The SmartPool Climber is easy to use and will make maintaining your pool affordable and effortless. Following these simple directions will insure that the Climber will quickly and efficiently clean your pool today and for many years to come. INSTALLATION •...
- Page 4 • Hold the bottom lid as shown in Fig 4 and pull the tab marked “PULL TO REMOVE BAG” • Press the filter frame down all the way around the perimeter making sure that it is completely seated and behind all the tabs as shown in Fig 8. FIGURE 4 FIGURE 8 •...
-
Page 5: Troubleshooting Guide
TROUBLE-SHOOTING GUIDE ERROR REASON(S) SUGGESTION(S) AC OUTLET/GFI CHECK AC OUTLET/RESET THE GFI OR TRY ANOTHER OUTLET PUMP AND DRIVE TURN THE POWER SUPPLY OFF AND UNPLUG THE POWER SUPPLY FROM THE AC OUTLET. WAIT 30 SECONDS AND TURN MOTORS NOT POWER SUPPLY RESET POWER SUPPLY ON. - Page 6 Replacement Top Shell (Avail. In Charcoal Grey Only) NC1024:02 Pump Motor (NC5x) NC1023 Power Supply (NC5x) NC1012:02 Anti-Twist Floating Cord 50' (NC5x) NC1006B:02 Drive Motor Assembly - Black (NC52) NC1010B Drive Tube Mount - Black (NC52) NC1011 Top Shell Bumper NC1002 Sensor Wheel Tire NC1005...
-
Page 7: Year Limited Warranty
Model NC52 2-YEAR L I M I T E D W A R R A N T Y This product has been manufactured, tested and inspected in accordance with carefully specified engineering requirements. It is warranted to be free from defects in materials and workmanship under normal use and service, subject to qualifications, conditions and limitations described below.
