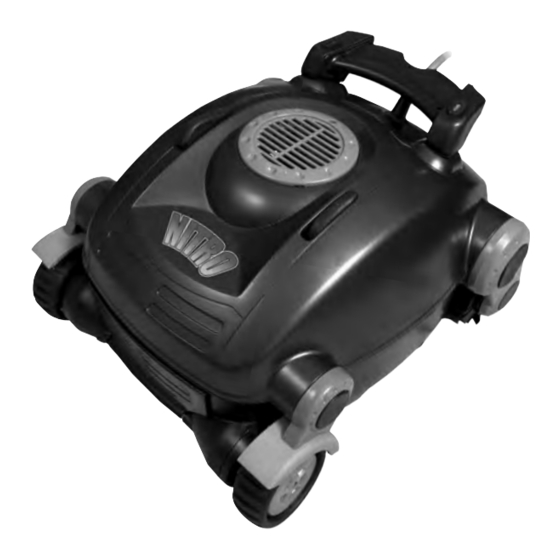

SmartPool NITRO NC51 Operation Manual

Nitro NC51 Manual U.S.:Layout 1 7/23/09 1:47 PM Page 1
Congratulations on your purchase of the most technologically advanced automatic pool vacuum available today. The Nitro is easy to use and will make maintaining your
pool affordable and effortless. Following these simple directions will insure that the Nitro will quickly and efficiently clean your pool today and for many years to come.
INSTALLATION
• Place the power supply in an area that will allow the cleaner to cover all areas of the pool.
• Be sure to only plug the power supply into a GFI (ground fault interrupter) or ELI (earth leak interrupter) protected electrical outlet.
• Look at the power supply and check that the power supply switch is in the off position.
• Plug the power supply into the protected outlet.
• Plug in the connector from the cleaner into the power supply. The connector is keyed so that it will only plug into the power supply one way. Make sure that the plug is pushed all the
way onto the power supply. Slide the connector lock (strain relief) onto the connector and turn the connector lock clockwise until it is snug.
OPERATING THE CLEANER OUT OF THE WATER WILL DAMAGE THE MOTORS AND VOID THE WARRANTY
• Place the cleaner into the pool and if needed rock the cleaner side to side to release any trapped air. The cleaner will sink to the bottom of the pool.
• Put enough of the blue cord into the water to assure that the cleaner can easily reach all areas of the pool. (Do not place ALL of the blue cord into the pool).
• Push the power switch down away from the handle to start the 3 Hour auto cleaning program. A red Led should be lit.
• The cleaner will begin its cleaning program.
• The cleaner will automatically shut itself down after three hours.
• To turn unit off press small off switch in the middle of the switch. The led will turn off
• If a second cleaning is required or the unit is accidentally shut off, you should wait
one minute before switching the unit on again.
IMPORTANT NOTE: During normal operation, the cleaner will appear to shut off for a few seconds, raise the front wheels off the
pool bottom and move either left or right or turn for an undetermined amount of time. This is normal and has been preprogrammed
into the unit to assure the quickest and most efficient cleaning of your pool.
This unit has been designed to clean all areas of your pool. It will climb the walls, and occasionally break the surface. In the process
of climbing the wall it may stay on the surface and continue to operate from several seconds to a few minutes. This is normal
operation procedure and the cleaner will eventually make its way to the bottom to continue its cleaning. Since most of the dirt is
concentrated on the floor of the pool, the cleaner will spend the majority of its time on the floor.
NITRO NC51 ROBOTIC POOL CLEANER OPERATION MANUAL
DO NOT RUN THE CLEANER OUT OF THE WATER.
For "Rapid Clean" place robot into the pool. Push the power switch up towards the transformer
handle and a green led will light. The cleaner will quick clean the pool and turn off in 1 hour.
