Speaker Connections
The ZMA has heavy duty gold plated binding posts that can accept up to 8 AWG
bare wire, banana jacks, or the larger spade connectors commonly found on hi-end
speaker cables.
!
LEFT CHANNEL
!
!
!
!
!
!

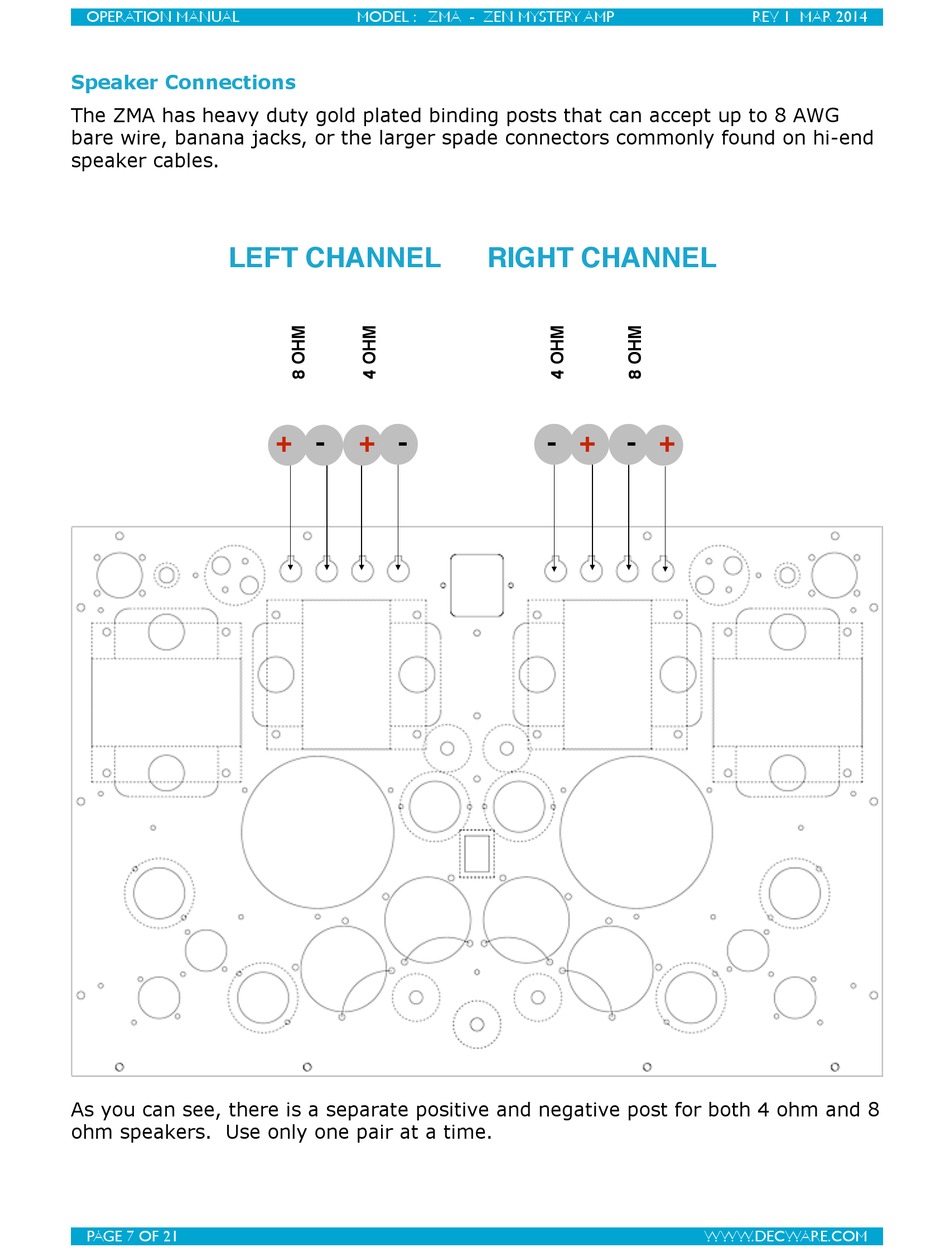

As you can see, there is a separate positive and negative post for both 4 ohm and 8
ohm speakers. Use only one pair at a time.
PAGE OF
7
21
MODEL : ZMA - ZEN MYSTERY AMP
+
-
+
-
RIGHT CHANNEL
-
+
-
REV 1 MAR 2014
+
WWW.DECWARE.COM
