OPERATION MANUAL

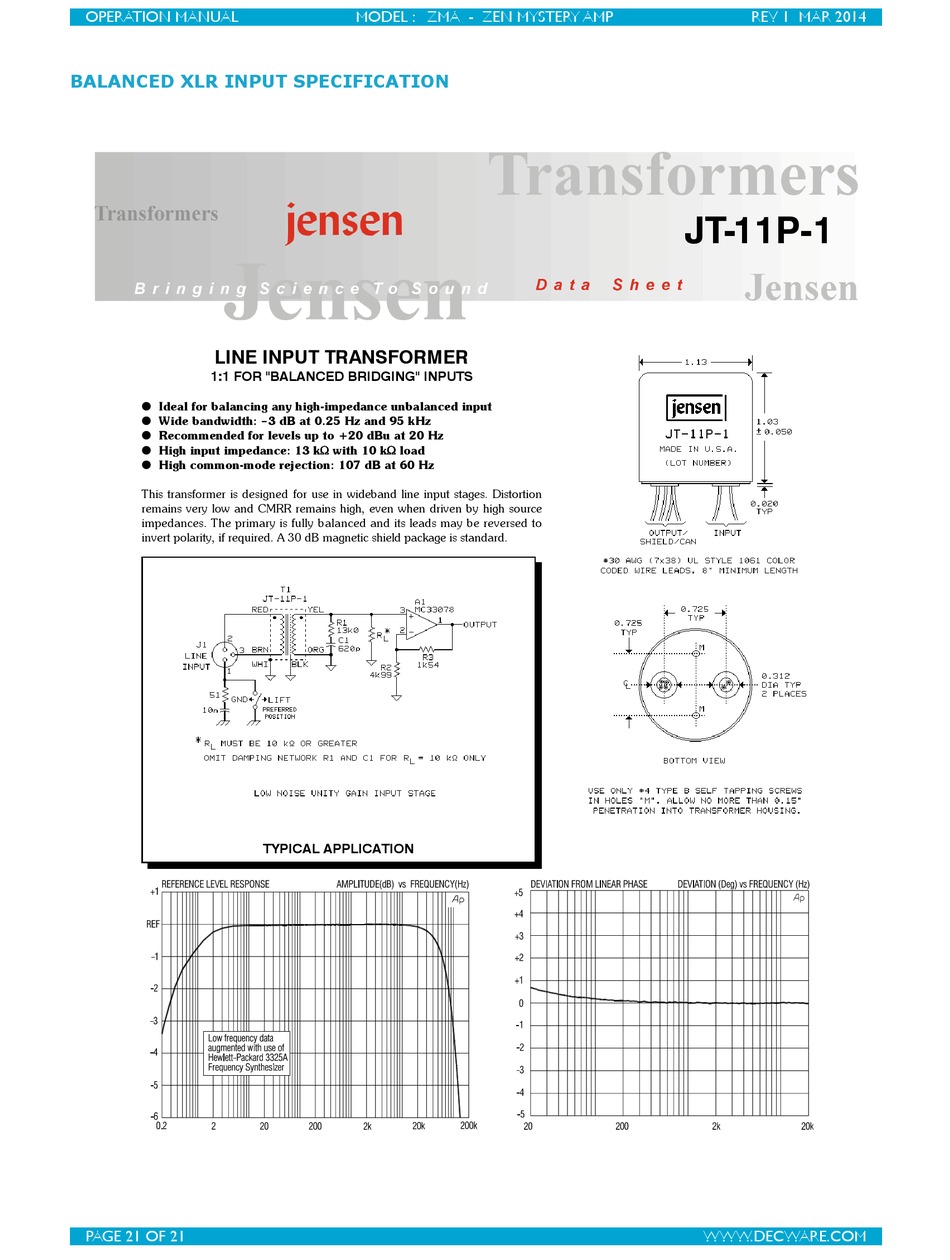

BALANCED XLR INPUT SPECIFICATION
LINE INPUT TRANSFORMER
1:1 FOR "BALANCED BRIDGING" INPUTS
M Ideal for balancing any high-impedance unbalanced input
M Wide bandwidth: ! ! ! ! 3 dB at 0.25 Hz and 95 kHz
M Recommended for levels up to +20 dBu at 20 Hz
M High input impedance: 13 kS S S S with 10 kS S S S load
M High common-mode rejection: 107 dB at 60 Hz
This transformer is designed for use in wideband line input stages. Distortion
remains very low and CMRR remains high, even when driven by high source
impedances. The primary is fully balanced and its leads may be reversed to
invert polarity, if required. A 30 dB magnetic shield package is standard.
PAGE  21 OF  21
MODEL : ZMA - ZEN MYSTERY AMP
TYPICAL APPLICATION
REV 1 MAR 2014
JT-11P-1
