OPERATION MANUAL
OPERATION MANUAL
REC-B6NDSL

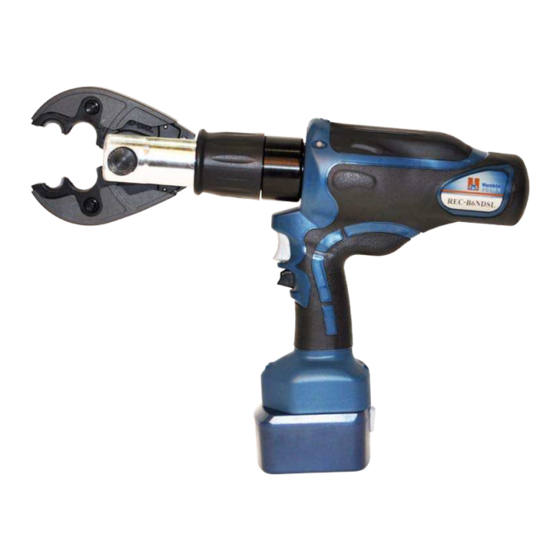

REC-B6NDSL 6 Ton Compression Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huskie Tools REC-B6NDSL
Summary of Contents for Huskie Tools REC-B6NDSL
- Page 1 OPERATION MANUAL OPERATION MANUAL REC-B6NDSL REC-B6NDSL 6 Ton Compression Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protec- tion could result in serious eye injury from flying debris. This safety alert symbol indicates a potential per- sonal injury hazard; it is not used for messages related to property damage only. -
Page 5: Kit Includes
11 JawTypes to Choose From • 2 BP-84 Lithium Ion Batteries • 1 Carrying Strap Battery and Charger • BP-84 Huskie Tools Lithium Ion Battery • CH-94 Huskie Tools Tri-Chemistry Charger • This charger can charge the BP-84, BP-82 and BP-80 only. SLK-JAW... -
Page 6: Specifications
SPECIFICATIONS REC-B6NDSL Specifications Cutting Capacities w/ SLCUT-JAW Output 6 Ton ACSR Up - 4/0 Weight 9.8 lbs. with Battery Standard Guy Wire 3/8” Size 14.3” L x 12” H x 3.1”W Soft Locks 3/8” Jaw Opening 1.4” Soft Steel Bolts 3/8”... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 8: Operating Instructions (Part 2)
OPERATING INSTRUCTIONS COMPRESSION 1. Retract the ram by pressing the release button. 2. (a) Select an appropriate size of die for the connector. Insert the dies into the jaw by pressing the push pins. (HT58 - “W” Dies) When the push pins are released, they will re turn to their original position and hold the die in place. -
Page 9: Operating Precautions
OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. -
Page 10: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 11: Parts List
PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Body Head SLND-21 Release Lever 658-09 Slide Pin Ass'y SLND-22Ass'y G4x12 Dowel Pin 658-10 Stopper Pin 130D-09 Plug SLND-12 Spring (140) 55A-04 Magnet R0B-25 Roller Head SLND-23 P-28 O-Ring 300-21 Roller SLND-24 P-28 Back-Up Ring (B.C.) 55D-03 Stopper Screw... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE Invert tool to allow air to rise TOOL JAWS WILL NOT Air Block in Hydraulic System towards the top of the oil ADVANCE bladder Consult Factory for Repair Defective Hydraulic Circuit... - Page 13 NOTES www.spartacogroup.com 800-860-6170...
- Page 14 NOTES www.spartacogroup.com 800-860-6170...
- Page 15 NOTES www.spartacogroup.com 800-860-6170...
- Page 16 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
