OPERATION MANUAL
OPERATION MANUAL
REC-6750

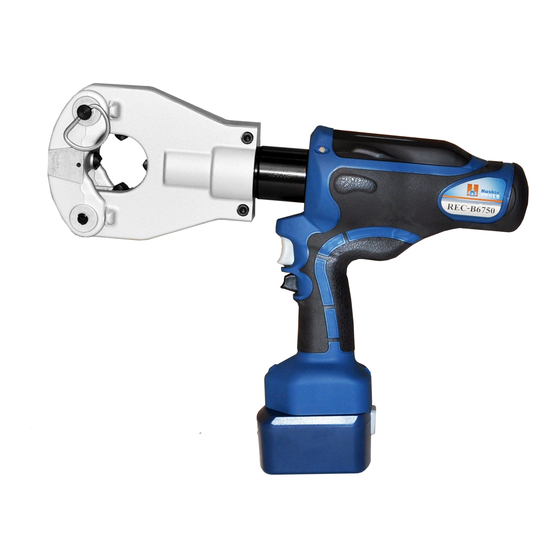

REC-6750: 6.2 Ton Dieless Compression Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Table of Contents
Related Manuals for Huskie Tools REC-6750
Summary of Contents for Huskie Tools REC-6750
- Page 1 OPERATION MANUAL OPERATION MANUAL REC-6750 REC-6750: 6.2 Ton Dieless Compression Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing an Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protec- tion could result in serious eye injury from flying debris This safety alert symbol indicates a potential per- or hydraulic oil. sonal injury hazard; it is not used for messages related to property damage only. -
Page 5: Kit Includes
• 2 BP-84 Lithium Ion Batteries • 1 Carrying Strap Battery and Charger • BP-84 Huskie Tools Lithium Ion Battery • CH-94 Huskie Tools Tri-Chemistry Charger • This charger can charge the BP-84, BP-82 and BP-80 only. Huskie Tools batteries, including the BP-70, BP-70EI and the BP-70MH must be charged with the CH-90, CH-80, or previous charger models. -
Page 6: Specifications
SPECIFICATIONS REC-6750 Specifications Features Output 6.2 Ton • Four-Sided Dieless Crimp System Weight 11.7 lbs. with Battery • *Designed to Crimp Anderson Connectors & Size 16.5”L x 10.8”H x 3.1”W Other Brand Connectors Manufactured to Jaw Opening 1.5” ANSI C119.4 •... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 8: Operating Instructions (Part 2)
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS TRIGGER AND RELEASE BUTTON 1. The ram advances when the trigger is pressed and stops when the trigger is released. 2. To retract the ram, press the release button. The ram continues to retract while the release button is pressed. -
Page 9: Operating Precautions
OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. -
Page 10: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 11: Parts List
PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Yoke 6H-04B Spring (686) EZ-26 Head (1) 6750-02 Spring (420) 9H2-02 Head (2) 6750-03 Bush R14A-19 UC-34 P-3 O-Ring 16-36 Side Jaw 6H-10D P-5 O-Ring (B) 610F-18 Cam Yoke UC-33B P-5 O-Ring 5N-35 Spring (390) 6H-11... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE Invert tool to allow air to rise TOOL JAWS WILL NOT Air Block in Hydraulic System towards the top of the oil ADVANCE bladder Consult Factory for Repair Defective Hydraulic Circuit... - Page 13 NOTES www.spartacogroup.com 800-860-6170...
- Page 14 NOTES www.spartacogroup.com 800-860-6170...
- Page 15 NOTES www.spartacogroup.com 800-860-6170...
- Page 16 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
