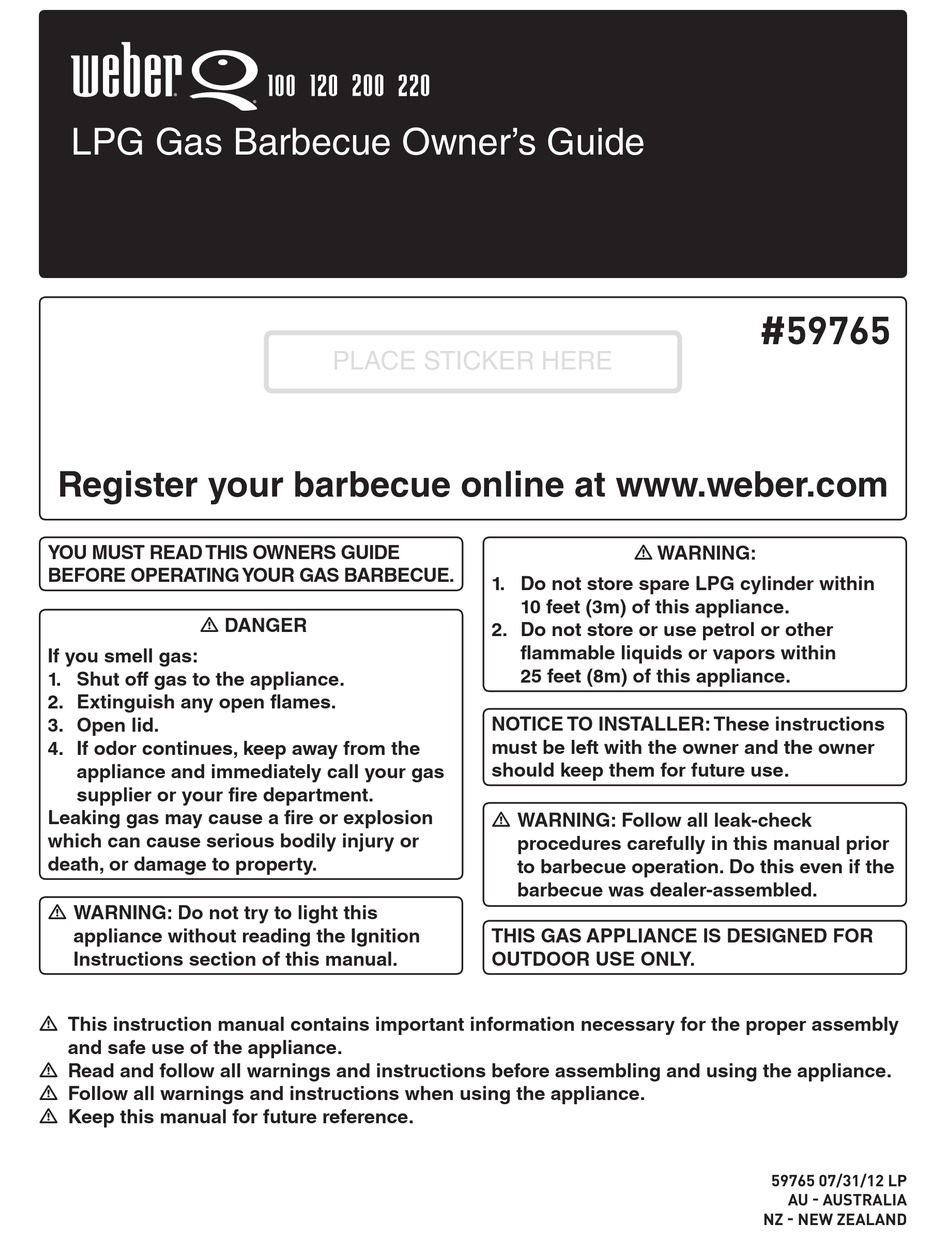

LPG Gas Barbecue Owner's Guide
Register your barbecue online at www.weber.com
YOU MUST READ THIS OWNERS GUIDE
BEFORE OPERATING YOUR GAS BARBECUE.
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
Leaking gas may cause a fire or explosion
which can cause serious bodily injury or
death, or damage to property.
m WARNING: Do not try to light this
appliance without reading the Ignition
Instructions section of this manual.
m This instruction manual contains important information necessary for the proper assembly
and safe use of the appliance.
m Read and follow all warnings and instructions before assembling and using the appliance.
m Follow all warnings and instructions when using the appliance.
m Keep this manual for future reference.
PLACE STICKER HERE
1. Do not store spare LPG cylinder within
2. Do not store or use petrol or other
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
m WARNING: Follow all leak-check
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
m WARNING:
10 feet (3m) of this appliance.
flammable liquids or vapors within
25 feet (8m) of this appliance.
procedures carefully in this manual prior
to barbecue operation. Do this even if the
barbecue was dealer-assembled.
#59765
59765 07/31/12 LP
AU - AUSTRALIA
NZ - NEW ZEALAND
