Alcor HD-1500 User Manual

Hd digital terrestrial receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

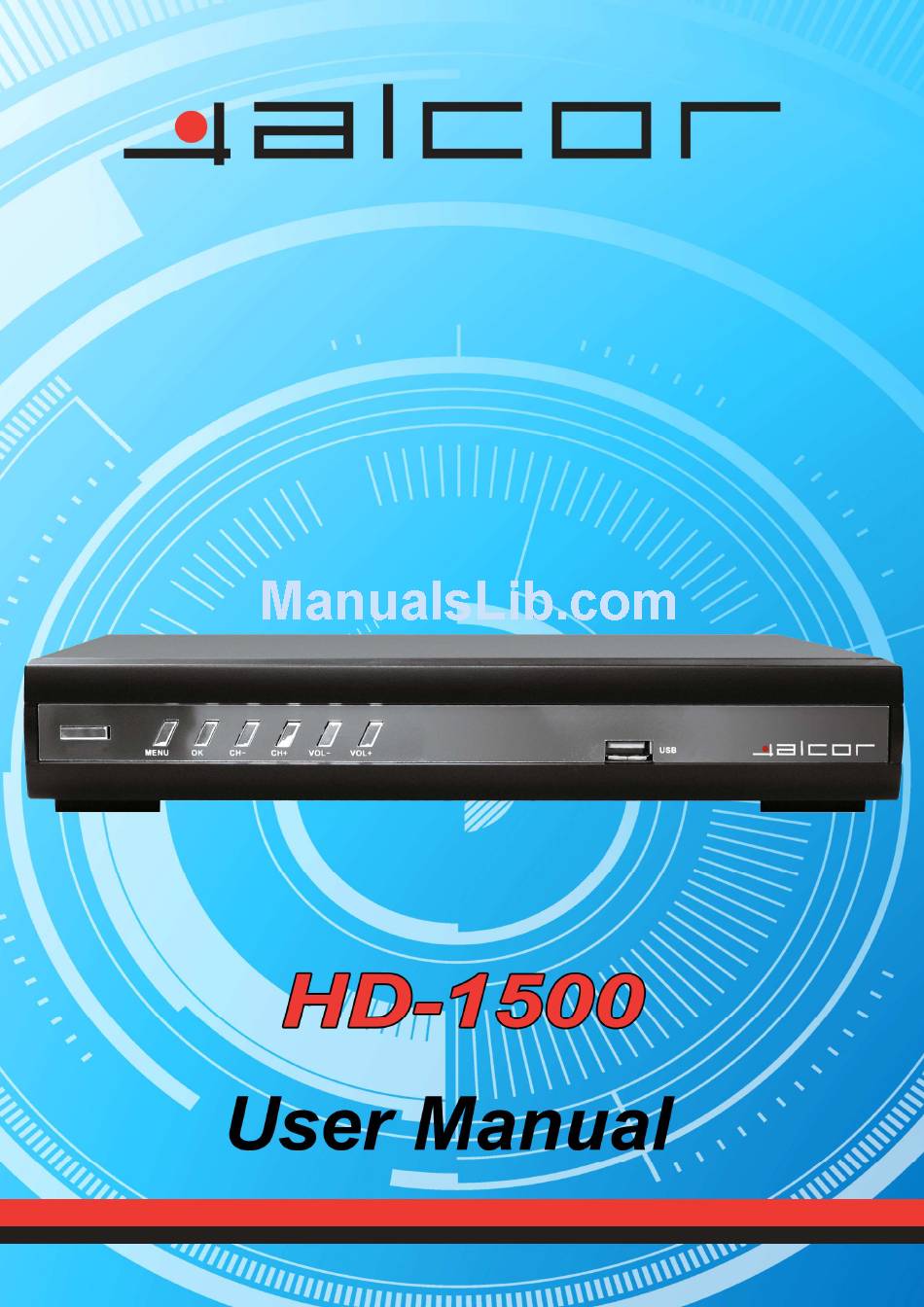

High Definition Terrestrial
Receiver
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Alcor HD-1500

Summary of Contents for Alcor HD-1500

  • Page 1 High Definition Terrestrial Receiver User Manual...

  • Page 2: Table Of Contents

    Table of contents INTRODUCTION ..........................4 MAIN FUNCATIONS AND FEATURE .....................4 THE REMOTE CONTROL .......................5 FRONT AND REAR PANEL......................7 REAR PANEL ..........................7 FRONT PANEL .......................... 7 INSTALLATION ..........................7 ......................7 ONNECTING THE RECEIVER ........................8 NSTALLATION UIDE ............................8 AILY USE INFO.

  • Page 4: Introduction

    1 INTRODUCTION This user manual is intended to guide you through the operation for the DVB-T FTA High Definition Digital Terrestrial Receiver. The password might require while you try to modify same advance option. Default password is “00000000”. 2 MAIN FUNCATIONS AND FEATURE Terrestrial This product is a high performance and cost-effective HDTV receiver.

  • Page 5: The Remote Control

    3 THE REMOTE CONTROL Photograph Function MUTE Disable Audio output STB POWER Power on/off the STB 0-9 numeral buttons, for input of numbers or for 0…..9 selecting a TV channel This is one learning handset and use to learning the TV POWER handset of TV SET.

  • Page 6: Battery Installation

    Battery Installation Insert the batteries while observing the correct (+) and (-) polarities as illustrated below: About the batteries If the remote control unit fails to work even when it is operated near the LCD TV / monitor, please replace the batteries. Use size UM-4 (AAA) batteries.

  • Page 7: Front And Rear Panel

    4 FRONT AND REAR PANEL 4.1 REAR PANEL COAX YPBPR HDMI OPTICAL S-VIDEO VIDEO L-AUDIO-R DC-12V LOOP ANT IN Rear Panel ANT IN Digital Terrestrial TV Broadcast signal input Loop OUT Output of Digital Terrestrial TV Broadcast signal USB2.0 Port for firmware upgrade HDMI Digital HDTV video output with HDCP.

  • Page 8: Installation Guide

    Connect the receiver to TV set. Connect the receiver to the speaker. 5.2 I NSTALLATION UIDE Follow the installation guide to enjoy your high definition digital TV world. Follow the help information that at the bottom of the window to select preference menu language and suitable country (Region) and start channel search.

  • Page 9: Audio Key

    Base information bar Further more information bar. 6.2 A UDIO KEY The program might have multilingual audio language and the audio broadcast on different audio mode such as Stereo, Left or Right. All the available audio languages will display on the audio track windows while you press AUDIO key.

  • Page 10: Sub Key

    6.3 S UB KEY The programs might have multilingual subtitle information. All available subtitle languages would display on the subtitle information window while you press SUBTITLE key. The screenshot is illustrated below. Follow the help information on the subtitle windows to select preference subtitle. 6.4 RES.

  • Page 11: Teletext

    widescreen TV). Normally the aspect ratio of standard definition video should be 4:3 and the high definition video should be 16:9. In order to get excellent quality on the TV set, press the ASPECT key to set suitable aspect ratio. The screenshot of the aspect ratio window is illustrated below. Here is a description of how the aspect ratio conversion mode chosen, the received stream and the user’s television set aspect ratios.

  • Page 12: Epg

    6.7 EPG Press EPG key to display the weekly electronic program guide. You could find when your enjoy program start and the summary of your enjoy program. 6.8 TV C HANNEL AND RADIO HANNEL LIST Press OK key to display all TV channel or all Radio channel. Follow the help information at the bottom of the window to select preference channel.

  • Page 13: Favourite Channel

    6.9 F AVOURITE HANNEL You can add preference channels to favourite’s channel list on the channel edit window. Press FAV key to launch your favourite’s channel list. 6.10 PVR F UNCTION Base on USB PVR function you could record the preference program and playback. Instant recording, EPG recording and timer recording were available.

  • Page 14: Epg Recording

    6.10.2 EPG recording You will never loss any preference program base on fully EPG recording feature. Press OK key to start EPG recording while you browser the EPG. You also could edit or delete EPG recording event on schedule window.

  • Page 15: Timer Recording

    6.10.3 Timer recording You could record preference program freely with timer recording feature. Go to EPG window and press INFO key to enter to the schedule window. You could add, edit and delete timer recording event on schedule window. 6.10.4 Playback recorded program Press PVR key to display the recorded program.

  • Page 16: Multimedia Player

    6.10.5 Multimedia player Multimedia player feature also has been integrated on the receiver. Press PVR key to display multimedia player window. You could show your preference photo, playing music and movie on multimedia player. Known supported file were illustration below. NTFS, FAT32 and FAT16 file system could be supported at the moment.

  • Page 18: Menu

    MENU 7.1 MAIN MENU Most function is available on main menu. Follow the operation help information on the bottom of the menu to modify preference option. The password was required while you trying to modify the settings. Default password is “00000000”. UPDATE THE RECEIVER BY USB2.0 INTERFACE 8.1 COPY THE UPDATE FILE TO THE USB DRIVE FROM PC 1.

  • Page 20: Specification

    SPECIFICATION Tuner Input Connector IEC 16902. Female Input Frequency Range VHF&UHF Num of RF Inputs Input impedance 75 ohm RF output Connector (bypass)IEC 169-2 Male Loop through 47-862 MHz Demodulation Standard ETSI EN300 744 Guard interval Modes 1/32,1/16,1/8 Active Symbol duration FEC Modes Rate 1/2,2/3,3/4,5/6,7/8 Carriers/Constellation...
  • Page 21 CVBS outputs 1 CVBS video output Audio CINCH 2 Analog Audio L/R connectors (white/red color) Optical S/PDIF Digital Audio output YPbPr outputs Analog HDTV video output SCART TV SCART HDMI Digital HDTV video output with HDCP. HDMI version 1.3 USB2.0 Front Panel bi-colored LED Red / Green to indicate the various states of the STB...
