USB
There are 2 USB 3.0 ports (5 Gbps) and 2 USB 2.0 ports on the back panel.
All USB ports support current up to 1A.
Ports on the back are upside down – note when connecting USB plugs.
Depending on the FACE Module used - some models incorporate additional 4 USB 2.0 ports in the front.
Serial port
The RS232 mini-serial port is located on the back panel.
Mini-serial to DB9 cable to connect to standard serial devices is sold separately.
eSATA
fit-PC3 features two eSATA ports. Ports are located on the back panel.

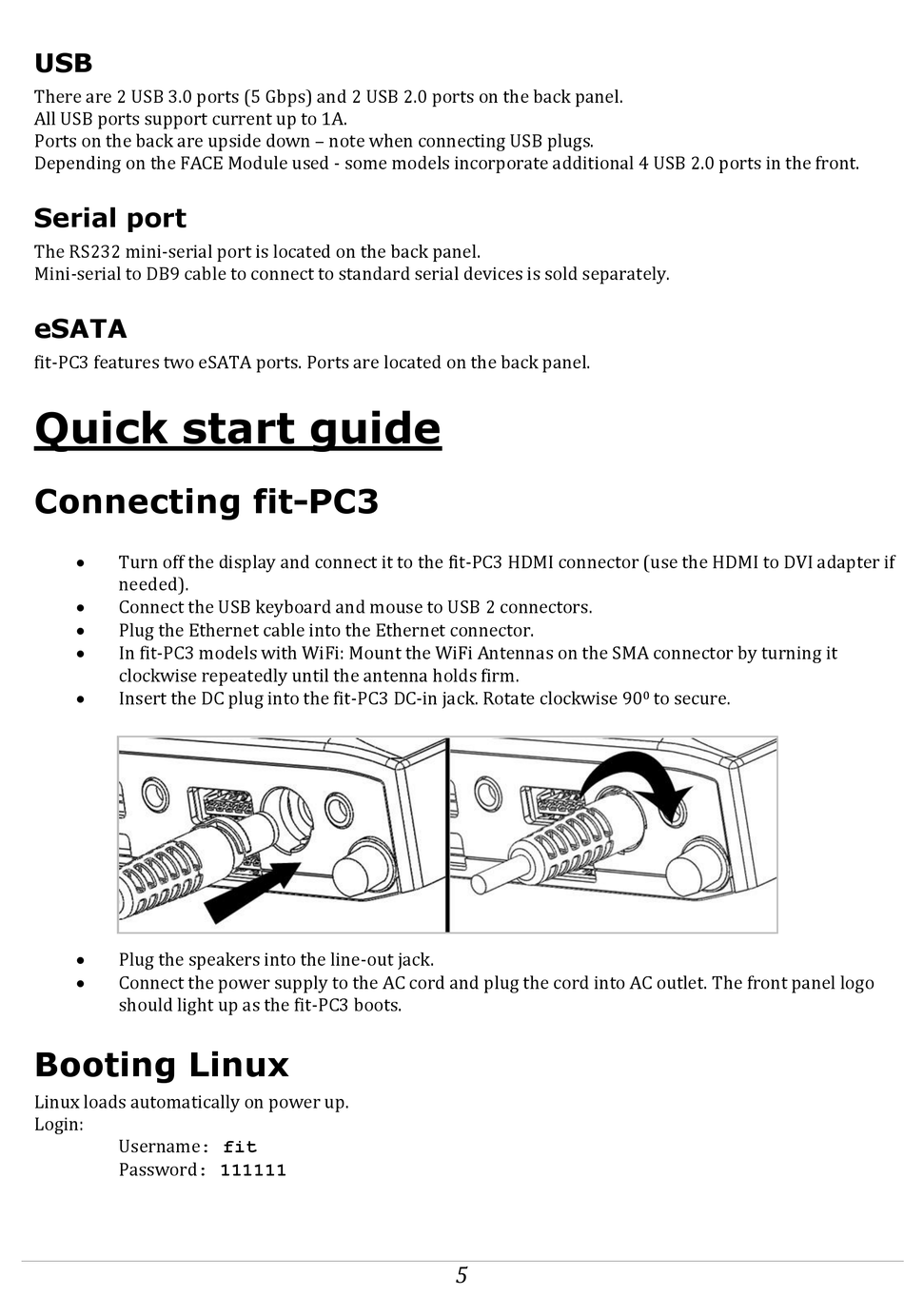

Quick start guide

Connecting fit-PC3

Turn off the display and connect it to the fit-PC3 HDMI connector (use the HDMI to DVI adapter if
needed).

Connect the USB keyboard and mouse to USB 2 connectors.

Plug the Ethernet cable into the Ethernet connector.

In fit-PC3 models with WiFi: Mount the WiFi Antennas on the SMA connector by turning it
clockwise repeatedly until the antenna holds firm.

Insert the DC plug into the fit-PC3 DC-in jack. Rotate clockwise 90

Plug the speakers into the line-out jack.

Connect the power supply to the AC cord and plug the cord into AC outlet. The front panel logo
should light up as the fit-PC3 boots.

Booting Linux

Linux loads automatically on power up.
Login:
Username: fit
Password: 111111
