Duratrax Evader EXT Assembly And Operation Manual page 11

100
48
102
81
98
81
45
44
47
101
47
105

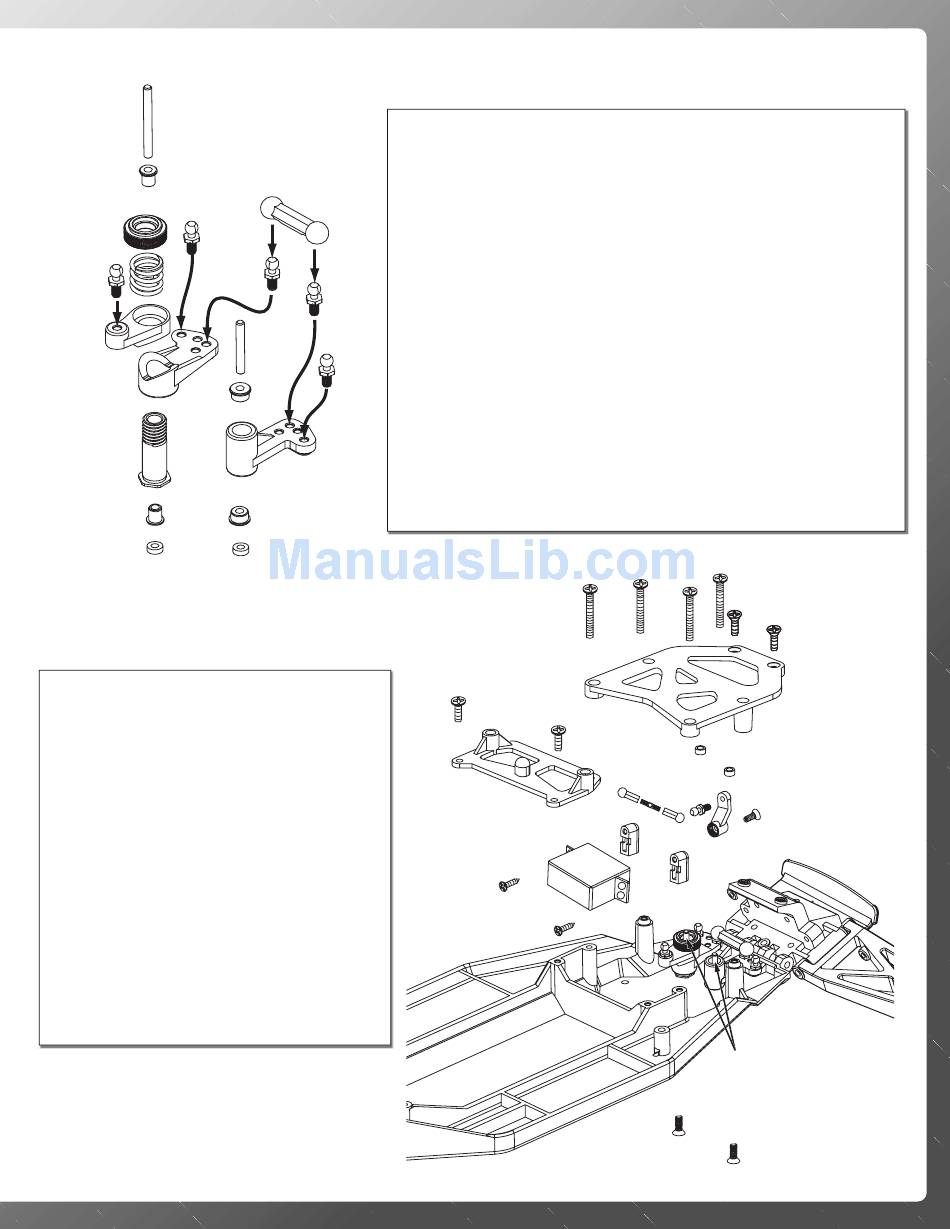

Servo, Servo Brace, Front Brace
1. Attach the steering servo mounts (6) to the front of the
servo mounting lugs using two 3x8mm S/T screws (L).
2. Install a short ball stud (81) into the steering servo horn (8).
3. Install the steering servo horn onto the servo with a
2.6x8mm S/T screw (T). Note: Make sure the transmitter,
steering servo and servo horn are properly centered
before securing the servo horn to the servo.
4. Secure the servo to the chassis with two 4-40x5/16" fl at
head screws (B).
5. Attach the servo brace (56) to the chassis by installing two
3x10mm screws (C) into the two rear holes.
6. Connect the servo horn to the servo saver assembly using
the adjustable steering servo link (5,90).
7. Install two brass bushings (105) into the underside of the
front brace (52). Note: The brass bushings may need to
be slightly tapped into place. The bushings must be
fully seated into the front brace.
8. Install the front brace onto the servo brace and servo saver
assembly. Make sure the servo saver posts insert into the
bushings in the front brace. Secure the front brace with four
3x20mm screws (E) into the chassis and two 4-40x5/16" fl at
head screws (B) into the bulkhead.
1. Insert the short servo saver post (99) into the right brass bushing (105) in the chassis.
2. Install two short ball studs (81) into the right servo saver (46) in the holes shown.
3. Insert a plastic bushing (48) into each end of the right servo saver. Again, make sure the
bushings are fully seated.
43
4. Slide the assembled right half onto the short servo saver post (99).
5. Install two short ball studs (81) into the lower left servo saver (44) in the holes shown.
6. Insert the threaded aluminum servo saver hub (101) into the bottom of the lower left
servo saver. Note: The aluminum servo saver hub is designed to key into the
81
bottom of the lower left servo saver. Make sure that the hex in the hub fully seats
in the servo saver.
81
7. Install a ball stud (81) into the upper left servo saver (45).
8. Slide the upper left servo saver onto the hub. The upper and lower left servo savers are
designed to key together.
9. Place the servo saver spring (98) on top of the two left servo savers.
99
10. Secure the left servo saver assembly together with the servo saver adjustment collar
81
(102). Note: The servo saver adjustment collar is machined on one side for the
servo saver spring to fi t into. Make sure this side goes down against the servo
saver spring. The servo saver spring will need to be properly adjusted once the
entire servo saver assembly has been installed on to the Evader EXT.
11. Insert a plastic bushing (47) into each end of the left servo saver assembly. Again, make
sure the bushings are fully seated.
46
12. Install the long servo saver post (100) into the left brass bushing (105) in the chassis.
13. Slide the assembled left servo saver assembly onto the servo saver post.
14. Attach the left and right servo savers together with the one piece
molded link (43).
48
105
Steering Servo Saver Assembly
E
C
C
56
Servo
L
L
11
E
E
E
B
B
52
105
105
5
90 81 8
T
5
6
6
Servo Saver
Posts
B
B
