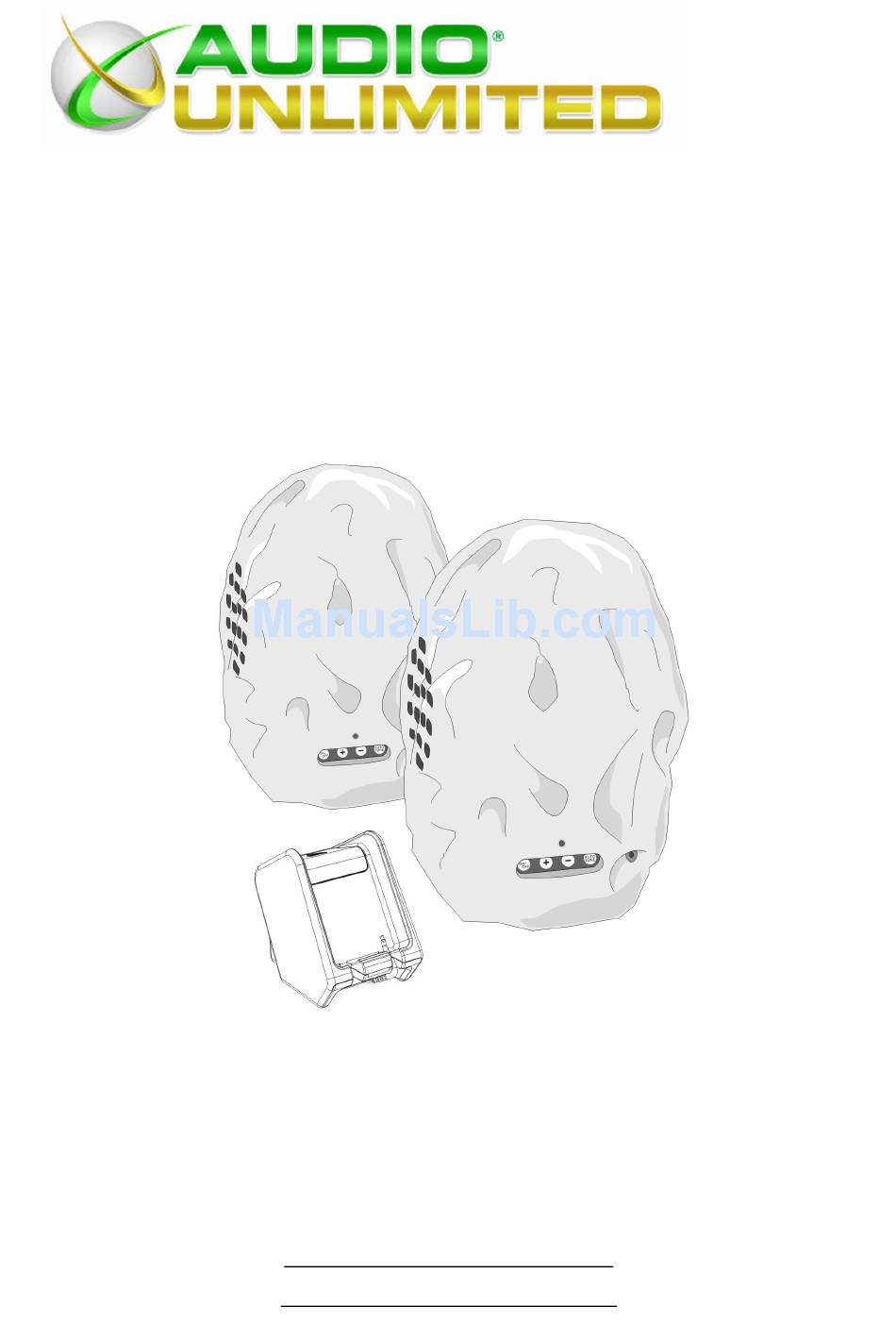

SPK-ROCK-DUO2
Premium 900MHz, Grey Wireless Rock Speaker,
w/ Dual Power Transmitter
Owner's Manual
(Read Instructions Carefully Before Using This System)
www.audio-unlimited.com
www.cablesunlimited.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPK-ROCK-DUO2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Unlimited SPK-ROCK-DUO2

  • Page 1 SPK-ROCK-DUO2 Premium 900MHz, Grey Wireless Rock Speaker, w/ Dual Power Transmitter Owner's Manual (Read Instructions Carefully Before Using This System) www.audio-unlimited.com www.cablesunlimited.com...
  • Page 2 INTRODUCTION This 900 MHz wireless rock speaker system uses the latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. Simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without any complicated wiring and installation with your Audio/Video equipment and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound in minutes.
  • Page 3: Component Identification

    COMPONENT IDENTIFICATION TRANSMITTER SPEAKER RECEIVER...
  • Page 4: Installation

    INSTALLATION TRANSMITTER 1. Connect the supplied AC power adapter to an electrical wall outlet 2. Plug the AC power adapter (12V/200mA) in the DC jack located at the rear of the transmitter, or you can insert 4 X “AA” size ALKALINE batteries (not included) into the battery compartment of the transmitter with correct polarity 3.
  • Page 5: Operation

    2. The rock speaker can be operated either with power supplied by the battery pack or via AC outlet by connecting the power adapter. When the power adapter is connected with the AC outlet, the battery pack will simultaneously be charged while the unit is in operation. Press the “On/Off” button and turn the speaker “ON”.
  • Page 6 5. Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are two channels for selection) on the transmitter, and then press the “AUTO-TUNE” button on the speaker again 6. Switching Off For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for longer than 4 minutes If the audio signal comes back, the transmitter will turn on automatically Turn off the speaker by pressing the ON/OFF button, or automatically going off in...
  • Page 7 TROUBLE SHOOTING NO SOUND Ensure the AC/DC adapter is fully inserted into the AC outlet and the power connection input on the transmitter Ensure the speaker is switch ON Speaker’s battery capacity is low, connect the AC/DC adapter to the speaker Ensure the TV or audio component is ON The connected audio / video equipment is not playing.
  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS Transmission Mode UHF stereo Carrier Frequency 900 MHz Operation Voltage Transmitter, DC 12V 200mA Speaker, built-in lead acid rechargeable battery or DC 15V 1A adapter Frequency Response 40Hz – 12KHz Distortion S/N Ratio 65dB Operation Distance Up to 150 feet Output Power 100Watts (PMPO) Storage Conditions...
  • Page 9 SPK-ROCK-DUO2 Haut-parleur de qualité supérieure 900MHz gris, sans fil en forme de roche avec émetteur à alimentation double Manuel du propriétaire (Veuillez lire ces instructions soigneusement avant l’utilisation de ce système) www.audio-unlimited.com www.cablesunlimited.com...
  • Page 10: Caractéristiques

    INTRODUCTION Ce système de haut-parleur sans fil 900 MHz en forme de roche utilise la technologie sans fil la plus récente, vous permettant ainsi d’apprécier le son de votre musique ou de la télévision en tout endroit que ce soit à l’intérieur ou l’extérieur de votre maison. Branchez tout simplement votre système à une source audio tels celle de la radio, TÉLÉVISION, VCR, chaîne hi-fi ou lecteur CD/MP3/VCD/DVD.
  • Page 11: Identification Des Composants

    IDENTIFICATION DES COMPOSANTS ÉMETTEUR RÉCEPTEUR DU HAUT-PARLEUR P.10...
  • Page 12 INSTALLATION ÉMETTEUR 1. Branchez l’adaptateur d’alimentation AC fourni à une prise murale électrique. 2. Insérez l’adaptateur d’alimentation AC (12V/200mA) dans la prise DC située à l’arrière de l’émetteur, ou insérez 4 piles alcalines « AA » (non comprises) dans le compartiment des piles de l’émetteur, en respectant la polarité.
  • Page 13: Opération

    2. Ce haut-parleur roche s’alimente avec soit, le bloc-piles ou une prise AC en utilisant l’adaptateur d’alimentation. Lorsque l’adaptateur d’alimentation est branché à la prise AC, le bloc-piles se charge simultanément pendant que l’unité est en marche. Appuyez sur le bouton « On/Off » et mettez le haut-parleur sous tension («...
  • Page 14 5. Si vous obtenez un brouillage de fréquence, faites basculer l’interrupteur de canal vers l’autre canal (vous pouvez choisir entre deux canaux) sur l’émetteur et ensuite appuyez à nouveau sur le bouton « AUTO-TUNE » du haut-parleur. 6. Fermeture automatique a) Afin de protéger l’émetteur et économiser l’alimentation, l’émetteur se fermera automatiquement si le signal d’entrée de la source audio est absent pendant 4 minutes.
  • Page 15 DÉPANNAGE AUCUN SON Vérifiez que l’adaptateur AC/DC est complètement inséré dans la prise AC et dans l’entrée d’alimentation sur l’émetteur. Assurez-vous que l’interrupteur du haut-parleur est à la position ON. La capacité de la pile du haut-parleur est basse – branchez l’adaptateur AC/DC au haut-parleur Assurez-vous que la télévision ou autre source audio est sous tension.
  • Page 16: Caractéristiques Techniques

    CARACTÉRISTIQUES TECHNIQUES Mode de transmission Stéréo UHF Fréquence porteuse 900 MHz Tension d’opération Émetteur, DC 12V 200mA Haut-parleur, pile plomb-acide rechargeable ou adaptateur DC 15V 1A Réponse en fréquence 40 Hz – 12KHz Distorsion Ratio S/N 65 dB Distance d’opération Jusqu’à...
  • Page 17: Manual Del Usuario

    SPK-ROCK-DUO2 Altavoz en forma de Roca Gris, inalámbrica a 900MHz, con transmisor de alimentación dual Manual del Usuario (Lea las instrucciones cuidadosamente antes de usar este sistema) www.audio-unlimited.com www.cablesunlimited.com P.16...
  • Page 18 INTRODUCCIÓN Este sistema de altavoz en forma de roca inalámbrico a 900MHz usa la más moderna tecnología inalámbrica para permitirle disfrutar de la música y el sonido de su TV en cualquier lugar dentro y fuera de su hogar. Simplemente conecte el sistema a cualquier fuente de sonido cómo Radio, TV, VCR, Hi-Fi o un reproductor de CD/MP3/VCD/DVD.
  • Page 19: Identificación De Componentes

    IDENTIFICACIÓN DE COMPONENTES TRANSMISOR RECEPTOR DE ALTAVOZ P.18...
  • Page 20: Instalación

    INSTALACIÓN TRANSMISOR Conecte la fuente de alimentación de AC suministrada a cualquier toma de corriente doméstica. Conecte el adaptador de AC (12V/200mA) en el conector de DC ubicado en la parte posterior del transmisor, o bien inserte 4 baterías alkaline “AA” (no incluidas) en el alojamiento de baterías del transmisor observando conectar de acuerdo a la polaridad correcta.
  • Page 21: Operación

    2. El altavoz en forma de roca puede ser operado ya sea con el paquete de baterías o con corriente eléctrica doméstica conectado el adaptador de corriente. Cuando el adaptador de corriente se conecta a una toma de corriente eléctrica doméstica, el paquete de baterías se carga simultáneamente mientras la unidad está...
  • Page 22 5. Si encuentra cualquier conflicto de frecuencia, mueve el selector de canal al otro canal (se cuenta con dos canales para elegir) en el transmisor, y luego oprima de nuevo el botón “AUTO-TUNE” en el altavoz. 6. Cómo apagar el sistema Para protección del transmisor y para ahorrar energía, el transmisor se apagará...
  • Page 23 SOLUCIÓN DE PROBLEMAS NO HAY SONIDO Asegúrese que la clavija del adaptador de corriente esté completamente insertada en la toma de corriente, y la entrada de alimentación en el transmisor esté encendida (en la posición “ON”. Asegúrese que el altavoz esté encendido. Asegúrese que el TV o el componente de audio esté...
  • Page 24: Especificaciones Técnicas

    ESPECIFICACIONES TÉCNICAS Modo de transmisión UHF estéreo Frecuencia portadora 900 MHz Voltaje de operación Transmisor, DC12V 200mA Altavoz, batería recargable de ácido-plomo integrada, o adaptador de DC 15V1A Respuesta en frecuencia 40Hz – 12KHz Distorsión Proporción de sonido/ruido 65dB Distancia de operación Hasta 150 pies (50 m) Potencia de salida 100Watts (PMPO)
