- Page 1 2.4GHz Wireless Speaker BD-9674-N Owner's Manual (Read the instructions carefully before using this system) www.audio-unmimited.com www.cablesunlimited.com...
-

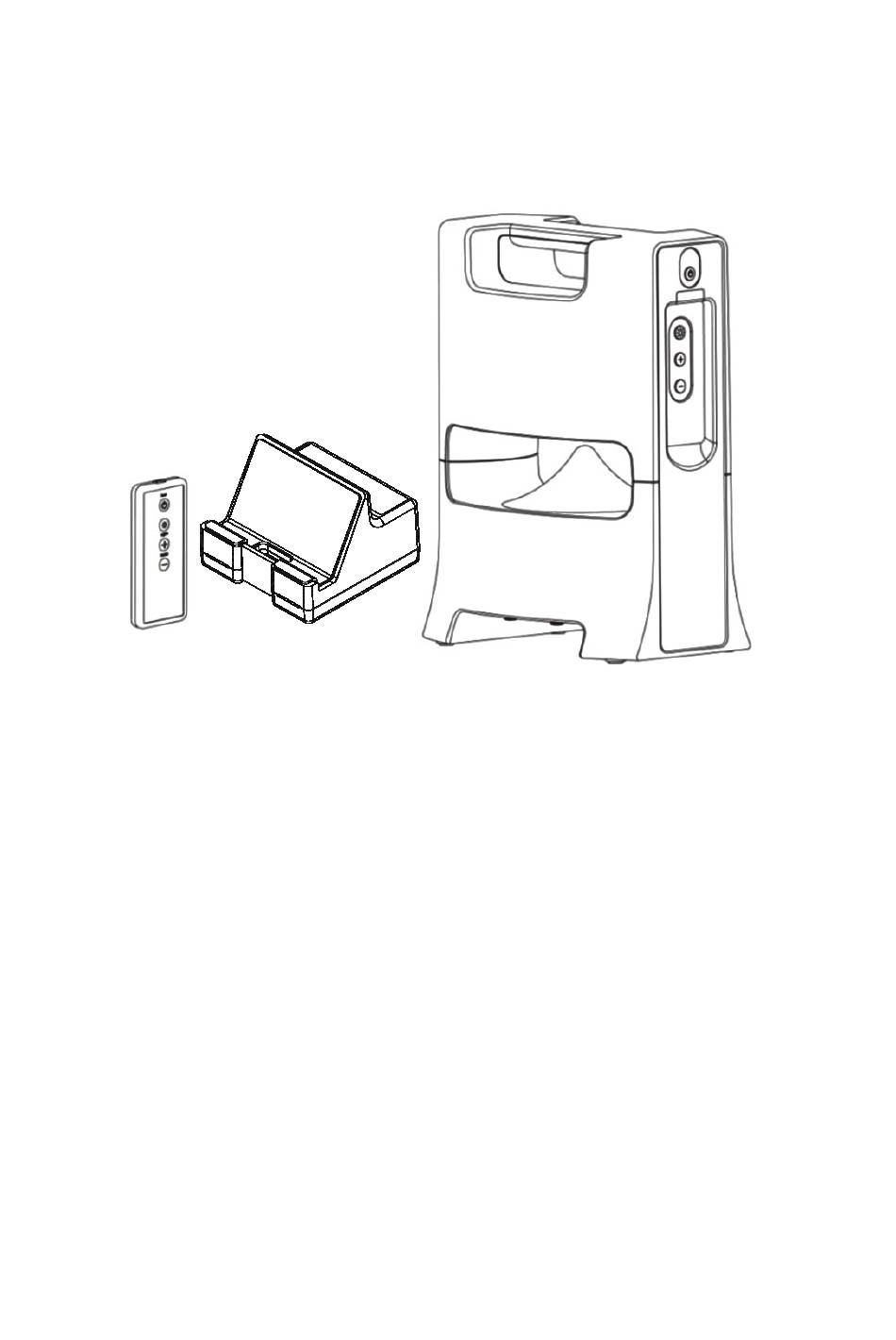

Page 2: Package Content
Introduction This 2.4GHz digital wireless speaker system utilizes the most advanced wireless technology to deliver dynamic, high-quality audio anywhere inside or outside your home. The wireless audio transmission travels freely through walls, floors and other solid objects. Simply connect the system to ANY audio source such as iPhone, iPod, MP3 player, smartphone, computer, TV or home theater system to enjoy full-spectrum, lifelike sound without complicated wiring and installation. -
Page 3: Front View

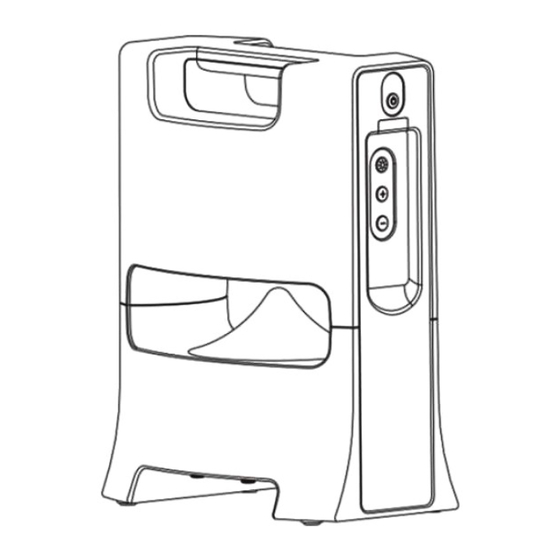

Transmitter Power “ON” indicator Speaker Power on/off Mood light / Pair Volume Up/Down Remote Control Storage Front View Aux In R/M/L Switch DC IN 12V Battery Compartment Rear View... -
Page 4: Remote Control
Remote Control Power ON/OFF Mood Light Volume Up/Down Installation Transmitter 1. Plug the included AC/DC adapter into a standard wall outlet. 2. Insert the adapter connector plug firmly into the DC IN jack located on the rear panel of the transmitter base, OR 3. - Page 5 Speaker Battery Power 1. To operate the speaker using battery power, gently turn the speaker over and open the battery compartment cover located underneath. 2. Insert six (6) D alkaline batteries (not provided) into the battery compartment, observing proper +/- polarities as indicated in the speaker compartment. 3.
-
Page 6: Basic Operation
Operation 1. To turn on the speaker, press and hold the POWER button for 3 seconds. The GREEN power LED illuminates. 2. To turn off the speaker, press and hold the POWER button for 3 seconds again. Power on/off Mood light / Pair Volume Up/Down Remote Control Storage Front View... -
Page 7: Mono Playback
typically take no more than 5 seconds. 4. If the audio source connected to the transmitter is turned off for less than 4 minutes, the BLUE lights on the transmitter and the speaker remain on, but no sound is transmitted. When the audio signal is turned back on, sound is transmitted again. - Page 8 effective operational range. If either speaker is out of range it will cause distortion to both speakers. AUX In To connect an audio device directly to the speaker insert a 3.5mm audio cable (not included) from the source device into the ‘AUX In’ jack located on the back panel of each speaker. This feature sends audio directly to the connected speaker.
-
Page 9: Troubleshooting
Troubleshooting No sound − Ensure the AC adapter is securely plugged into the wall outlet and the transmitter DC IN jack. − If using batteries to power the transmitter a blinking BLUE light on transmitter indicates drained batteries. Replace with 4 fresh AA batteries −... -
Page 10: Specifications
Specifications Transmission Mode: UHF Stereo Carrier Frequency: 2.4GHz Digital Operation Voltage: Transmitter, DC 6V 2A Speaker, DC 12V 1.5A or 6 x D alkaline batteries (not included) Remote Control, 1 x CR2032 button cell Frequency Response: 30 Hz – 20 KHz Distortion: 0.5% S/N Ratio:... - Page 11 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.”...
