Omron HEM-6052 Instruction Manual

Automatic wrist blood pressure monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

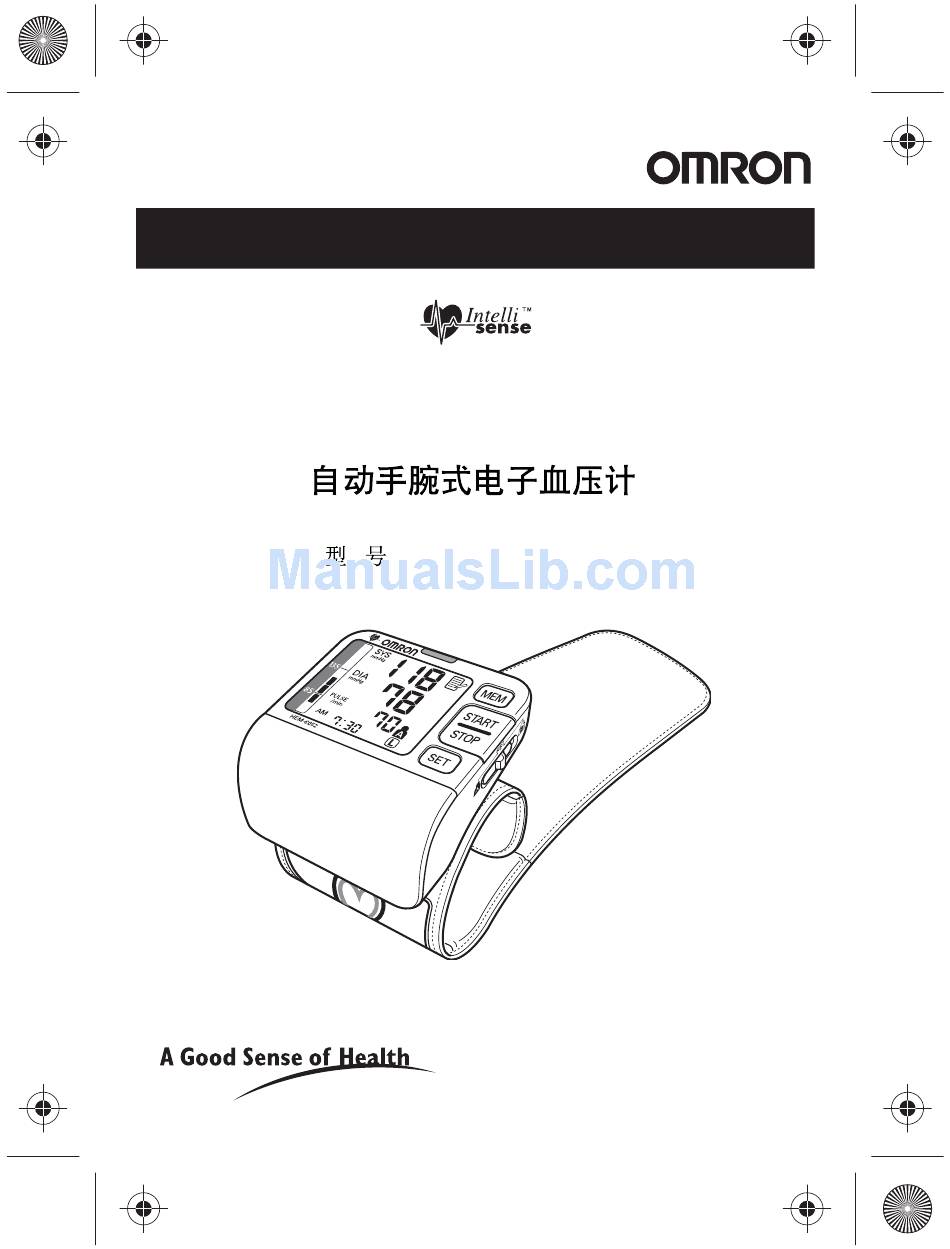

INSTRUCTION MANUAL
Automatic Wrist Blood Pressure
Monitor
Model
HEM-6052

Advertisement

Table of Contents
loading

Related Manuals for Omron HEM-6052

Summary of Contents for Omron HEM-6052

  • Page 1 INSTRUCTION MANUAL Automatic Wrist Blood Pressure Monitor Model HEM-6052...

  • Page 2: Table Of Contents

    HEM-6052-C1_B_M.fm Page 2 Tuesday, March 9, 2010 9:15 AM Contents Before using the unit Introduction ..........3 Important Safety Information ...... 4 1. Overview ........... 6 2. Preparation ..........8 2.1 Installing/Replacing the Batteries..8 2.2 Setting the Date and Time ....10 2.3 Setting the Advanced Positioning...

  • Page 3: Introduction

    The small, pre-formed wrist cuff is very convenient and easy to apply. With the push of a button the HEM-6052 measures your blood pressure and pulse and displays the reading on a clear digital panel.

  • Page 4: Important Safety Information

    HEM-6052-C1_B_M.fm Page 4 Tuesday, March 9, 2010 9:15 AM Important Safety Information Consult your doctor during pregnancy, arrhythmia and arteriosclerosis. People with poor peripheral circulation may find that results for measurements taken at the wrist vary from those taken on the upper arm. Please read this section carefully before using the unit.
  • Page 5 HEM-6052-C1_B_M.fm Page 5 Tuesday, March 9, 2010 9:15 AM Important Safety Information • Do not use a mobile phone, or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit. • Do not operate unit in a moving vehicle (car, airplane).

  • Page 6: Overview

    HEM-6052-C1_B_M.fm Page 6 Tuesday, March 9, 2010 9:15 AM 1. Overview Main Unit A. Display F. User ID selection switch B. Battery compartment G. SET button C. Wrist cuff H. Date/Time setting ( D. Memory (MEM) button button E. START/STOP button...
  • Page 7 HEM-6052-C1_B_M.fm Page 7 Tuesday, March 9, 2010 9:15 AM 1.Overview Display L M N O Z Y X W V L. Deflation symbol T. User ID symbol (A or B) M. Systolic blood pressure (If “GUEST” is selected, A N. Positioning indicator or B will not be displayed.)

  • Page 8: Preparation

    HEM-6052-C1_B_M.fm Page 8 Tuesday, March 9, 2010 9:15 AM 2. Preparation Installing/Replacing the Batteries Remove the battery cover by pulling it off in the direction of the arrow. Insert two 1.5V “AAA” alkaline (LR03) batteries in the battery compartment. Make sure their polarity (+/–) is aligned with the polarity (+/–) as indicated in the...
  • Page 9 HEM-6052-C1_B_M.fm Page 9 Tuesday, March 9, 2010 9:15 AM 2.Preparation Battery Life & Replacement If the battery low symbol ( ) appears on the display, replace both batteries at the same time. - When the battery low symbol ( ) starts to blink, you will still be able to use the unit for a short while.

  • Page 10: Setting The Date And Time

    HEM-6052-C1_B_M.fm Page 10 Tuesday, March 9, 2010 9:15 AM 2.Preparation Setting the Date and Time Your blood pressure monitor automatically stores up to 100 measurement values in its memory and calculates an average value based on the last three measurements. To make use of the memory and average value function: •...
  • Page 11 HEM-6052-C1_B_M.fm Page 11 Tuesday, March 9, 2010 9:15 AM 2.Preparation Repeat steps 2 and 3 to set the month and day. Repeat steps 2 and 3 to set the hour and minute for the time. Press START/STOP button to turn the monitor off.

  • Page 12: Setting The Advanced Positioning Sensor (Aps)

    HEM-6052-C1_B_M.fm Page 12 Tuesday, March 9, 2010 9:15 AM 2.Preparation Setting the Advanced Positioning Sensor (APS) You can modify the options for the various settings of your monitor. This is done by pressing the SET button to changing a setting, then pressing the MEM button to select the options for that setting.
  • Page 13 HEM-6052-C1_B_M.fm Page 13 Tuesday, March 9, 2010 9:15 AM 2.Preparation Setting the Wrist for Measurement While in the setting mode, press the SET button until the wrist symbol ) appears on the display. Notes: • The default setting is “...

  • Page 14: Setting The Buzzer

    HEM-6052-C1_B_M.fm Page 14 Tuesday, March 9, 2010 9:15 AM 2.Preparation Setting the Buzzer While in the setting mode, press the SET button until the buzzer symbol ( ) appears on the display. Note: The default setting is “on1” or “on”, depending on the Positioning indicator you set.

  • Page 15: Using The Monitor

    HEM-6052-C1_B_M.fm Page 15 Tuesday, March 9, 2010 9:15 AM Operating instructions 3. Using the Monitor Applying the Wrist Cuff You can take a measurement on either your left or right wrist. Notes: • You can take a measurement on either your left or right wrist.
  • Page 16 HEM-6052-C1_B_M.fm Page 16 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor Place the wrist cuff over your left wrist with your left thumb facing upward. ulna Note: Make sure that the wrist cuff does not cover the protruding part of the wrist bone (ulna) on the outside of the wrist.

  • Page 17: Taking A Reading

    HEM-6052-C1_B_M.fm Page 17 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor Taking a Reading Note: This section is the example for the measurement with the default setting (the positioning indicator is “on1”, the wrist for measurement is “ ”, and the buzzer is “on1”).
  • Page 18 HEM-6052-C1_B_M.fm Page 18 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor Relax. Bending. Griping. Do not move your wrist and fingers. Lower than Higher than Far away Keep at the the heart. the heart. from the center of the heart.
  • Page 19 HEM-6052-C1_B_M.fm Page 19 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor Notes: • Sit still and do not talk or move until the measurement is completed. • Keep the monitor at heart level until the measurement is completed. • To cancel the measurement, press the START/STOP button at any time during measurement.
  • Page 20 HEM-6052-C1_B_M.fm Page 20 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor Important: • Recent research suggests that the following values can be used as a guide to high blood pressure for measurements taken at home. Systolic Blood Above 135 mmHg...
  • Page 21 HEM-6052-C1_B_M.fm Page 21 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor What is Irregular Heartbeat? An irregular Normal Heartbeat heartbeat is a heartbeat rhythm Pulse that varies by Blood pressure more than 25% from the average Irregular Heartbeat heartbeat rhythm...

  • Page 22: Using The Memory Function

    HEM-6052-C1_B_M.fm Page 22 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor Using the Memory Function The monitor is designed to store the blood pressure and the pulse rate in the memory for two people (user A and user B) every time a measurement is completed.
  • Page 23 HEM-6052-C1_B_M.fm Page 23 Tuesday, March 9, 2010 9:15 AM 3.Using the Monitor To View Previous Readings Stored in Memory Press the MEM button, while the average reading is displayed, to view readings stored in memory from the most recent to the oldest.

  • Page 24: Handling Errors And Problems

    HEM-6052-C1_B_M.fm Page 24 Tuesday, March 9, 2010 9:15 AM Care and maintenance 4. Handling Errors and Problems Symptom Cause Correction Replace with new Batteries are empty. batteries. No display appears when the START/STOP button is Insert the batteries Batteries were pressed.
  • Page 25 HEM-6052-C1_B_M.fm Page 25 Tuesday, March 9, 2010 9:15 AM 4.Handling Errors and Problems Error Symbol Cause Correction Cuff is over inflated. Press the START/STOP button once to turn off the power. Sit still, restart measurement and do not talk Movement during measurement.

  • Page 26: Storage And Maintenance

    HEM-6052-C1_B_M.fm Page 26 Tuesday, March 9, 2010 9:15 AM 5. Storage and Maintenance To protect your monitor from damage, please avoid the following: • Subjecting your monitor to extreme temperatures, humidity, or direct sunlight. • Washing the cuff or exposing the cuff or monitor to water.

  • Page 27: Technical Data

    HEM-6052-C1_B_M.fm Page 27 Tuesday, March 9, 2010 9:15 AM 6. Technical Data Name OMRON Wrist Blood Pressure Monitor Model HEM-6052 Display LCD Digital Display Measurement Oscillometric method Pressure: 0 to 299 mmHg/ Measurement Range Pulse: 40 to 180 beats/min 100 Measurements with date and time for...
  • Page 28 This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601- 1-2:2007 standard for both immunity and emissions.

  • Page 29: Some Useful Information About Blood Pressure

    HEM-6052-C1_B_M.fm Page 29 Tuesday, March 9, 2010 9:15 AM 7. Some Useful Information about Blood Pressure What is Blood Pressure? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart’s cycle.
  • Page 30 HEM-6052-C1_B_M.fm Page 30 Tuesday, March 9, 2010 9:15 AM 7.Some Useful Information about Blood Pressure Upper curve: systolic blood pressure Lower curve: diastolic blood pressure Time of day Example: fluctuation within a day (male, 35 years old) Classification of Blood Pressure by the World...
  • Page 32 HEM-6052 HEM-6052 HEM-6052...
  • Page 33 • • • • • • 299 mmHg • • •...
  • Page 34 • “AAA” LR03 • • • • • “ ” • • • • •...
  • Page 35 (MEM) J. 2 “AAA” LR03 • •...
  • Page 36 L M N O Z Y X W V...
  • Page 37 “AAA” LR03 +/– +/–...
  • Page 38 • • • • 1.5V “AAA” LR03 • •...
  • Page 39 • • 2009 • 2009 2030 2030 2009 •...
  • Page 40 START/STOP...
  • Page 41 START/STOP...
  • Page 42 • •...
  • Page 43 START/STOP...
  • Page 44 • Omron • • •...
  • Page 46 GUEST START/STOP...
  • Page 48 • • • START/STOP START/STOP...
  • Page 49 • 135 mmHg 85 mmHg • 如果你測量過程中移動身体，顯示 上將出現移動錯誤符號（ ）。 保持正确姿勢再次測量。...
  • Page 51 • • •...
  • Page 52 2 - 3 START/STOP...
  • Page 53 START/STOP [+] [-] START/STOP...
  • Page 54 START/STOP OMRON “AAA” LR03...
  • Page 55 • • • • • • OMRON • Omron • Omron...
  • Page 56 OMRON HEM-6052 299 mmHg ±3 mmHg ±5% 1.5V “AAA” LR03 23°C 10°C 40°C 30 85% RH -20°C 60°C 10 95% RH 70 mm x 70 mm x 21 mm 13.5 cm 21.5 cm “AAA” LR03 •...
  • Page 57 mmHg 140/90 140 mmHg 90 mmHg...
  • Page 58 (mmHg) (mmHg) 100 110 100 mmHg...
  • Page 60 HEM-6052-C1_B_M.fm Page 31 Tuesday, March 9, 2010 9:15 AM OMRON HEALTHCARE Co., Ltd. 24, Yamanouchi Yamanoshita-cho Ukyo-ku, Kyoto, 615-0084 JAPAN OMRON HEALTHCARE EUROPE B.V. Kruisweg 577, 2132 NA Hoofddorp THE NETHERLANDS OMRON HEALTHCARE SINGAPORE PTE LTD. Asia Pacific 438A Alexandra Road, #05-05/08,...
