Summary of Contents for One Stop Systems OSS-PCIe-HIB25-x8-H

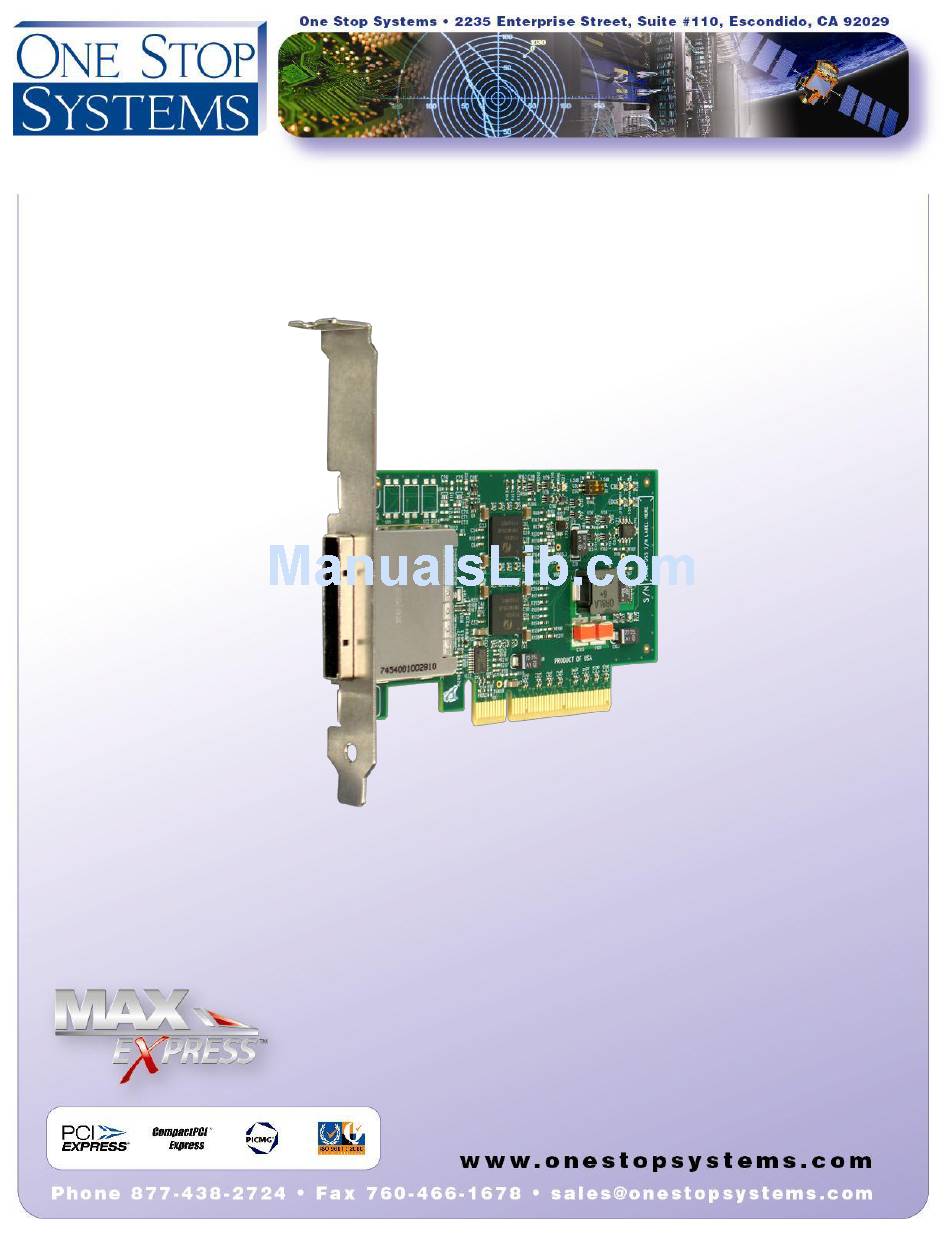

- Page 1 User Manual, PCIe x8 GEN 2 Cable Adapter OSS-PCIe-HIB25-x8-H (Host) OSS-PCIe-HIB25-x8-T (Target)
-
Page 2: Table Of Contents
2.c. Installing the host cable adapter ......................6 2.d. Removing the host cable adapter ......................7 2.e. When using with any third party I/O device ................... 7 3. Ordering information 3.a. Ordering Information ..........................8 4. Appendix One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 2... -
Page 3: Overview
The target cable adapter (Part# OSS-PCIe-HIB25-x25-x8-T) installs into the target slot of an OSS 2-slot backplane and extends the PCIe bus to a single add-in board installed in the I/O slot of the 2-slot backplane. Note: This area is populated on target board One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 3... -
Page 4: Specifications
Agency Compliance: UL60950, FCC Class A, CE, KCC Class B, 이 기기는 가정용(B 급) 전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다. Environmental Compliance: EU Directive 2002/95/EC (RoHS) One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 4... -
Page 5: Block Diagram
PCIe Signal Redriver +3.3v CPRSNT# LEDs Cable Present/ Pwr Upstream Downstream LEDs X8 PCI Express PCIe lane status X8 PCI Express Card Edge Connector Cable Connector *Clock direction shown in Host configuration One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 5... -
Page 6: Initial Set-Up
3) The connectors on either end of the PCIe x8 cable are identical. Each connector is equipped with a retractor to allow the connector to be locked into place. Output swing control dip Holes in the cable switch (Table 2) shell Connector teeth Equalizer and de-emphasis adjustments (Table 1, 3) One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 6... -
Page 7: Removing The Host Cable Adapter
Install the downstream board into the appropriate PCIe slot. Connect the external power source (separate from the host system power supply) to the downstream device if necessary. Connect the PCIe cable to both the upstream host adapter and the downstream device. One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A... -
Page 8: Ordering Information
OSS-PCIe-HIB25-x4-T – PCIe x4 Gen 2 target cable is only used with the OSS 2-slot PCIe backplane to add a single PCIe card to a host. OSS-PCIe-HIB25-x8-H – PCIe x8 Gen 2 host cable adapter installs in a x8 or x16 expansion slot of a host system to extend the host PCIe bus to an expansion system or PCIe device. -
Page 9: Appendix
Receiver differential pair, Lane 1 Ground PERn1 PETp2 Ground Transmitter differential pair, Lane 2 PETn2 Ground Ground PERp2 Receiver differential pair, Lane 2 Ground PERn2 PETp3 Ground Transmitter differential pair, Lane 3 PETn3 Ground One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 9... - Page 10 Transmitter differential pair, Lane 7 PETn7 Ground Ground PERp7 Receiver differential pair, Lane 7 PRSNT2# Hot-Plug presence detect PERn7 Ground Ground Table 1: Pin-out for the PCIe x8 Card Edge Connector on the Host Cable Adapter One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 10...
- Page 11 SB_RTN PWR RTN PETn6 PERn6 PETp2 PERp2 CPSRNT$# CWAKE# PETn2 PERn2 CPWRON CPERST# PETp7 PERp7 PETn7 PERn7 PETp3 PERp3 PETp4 PETp4 PETn3 PERn3 PETn4 PERp4 PIN- out for the PCIe x8 Cable One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 11...
- Page 12 PoWeR: Provides local power for in-cable redriver circuits. Only needed on long cables. Power does not go across the cable.) PWR_RTN PoWeR ReTurN: Provides local power return path for PWR pins. CWAKE# Cable WAKE CPERST# Cable PCI Express Reset One Stop Systems OSS-PCIe-HIB25-x8-H/T Rev. A Page 12...
