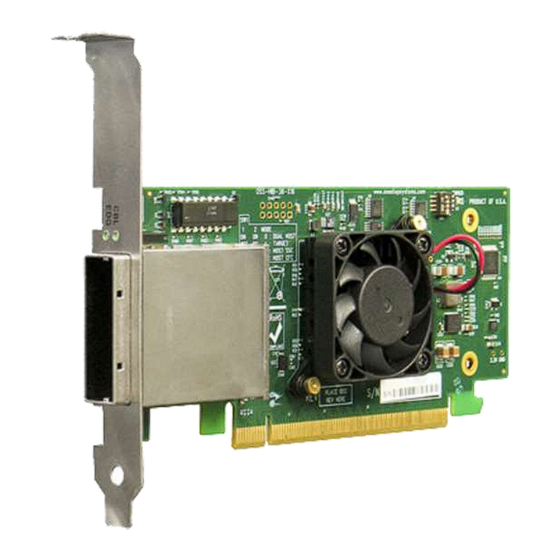

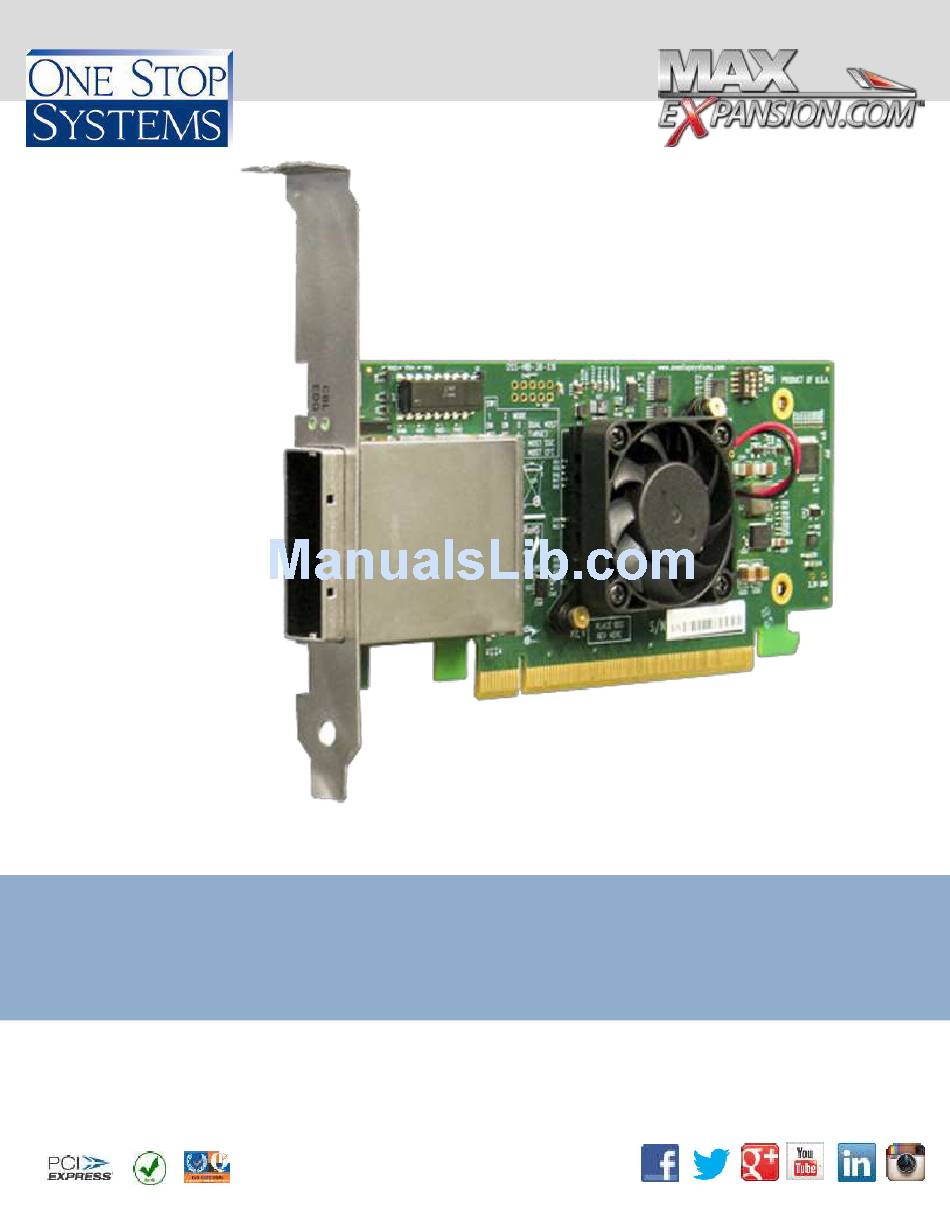

- Page 1 User Manual, PCIe x16 GEN 3 Cable Adapter OSS-PCIe-HIB38-x16-H (Host) OSS-PCIe-HIB38-x16-T (Target)
-
Page 2: Table Of Contents
2.b. Installing the host cable adapter ......................6 2.c. Removing the host cable adapter ......................7 2.d. When using with any third party I/O device ................... 7 3. Ordering Information 4. Appendix One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 2... -
Page 3: Overview
1. Overview 1.a. Host cable adapter The host adapter is installed into the host computer’s PCIe x16 slot. The host cable adapter (Part # OSS-PCIe-HIB38-x16-H) allows communication between a processor and an I/O point. Slot Cover (also available in low profile... -
Page 4: Specifications
0 to 50°C 10 to 90% relative humidity Storing Environment -40 to 85°C 5 to 95% relative humidity Agency Compliance FCC class A RoHS 1.d. Dip Switch Settings and Block Diagrams One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 4... - Page 5 One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 5...
-
Page 6: Initial Set-Up
The connectors on either end of the PCIe x16 cable are identical. Each connector is equipped with a retractor to allow the connector to be locked into place. One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice... -
Page 7: Removing The Host Cable Adapter
Connect the external power source (separate from the host system power supply) to the downstream device if necessary. Connect the PCIe cable to both the upstream host adapter and the downstream device. One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice... -
Page 8: Ordering Information
3. Ordering Information OSS - PCIe-HIB38-x16 - H - One Stop Systems HIB38 x16 host cable adapter. OSS - PCIe-HIB38-x16 - T - One Stop Systems HIB38 x16 host cable adapter. One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice... -
Page 9: Appendix
Receiver differential pair, Lane 1 Ground PERn1 PETp2 Ground Transmitter differential pair, PETn2 Ground Lane 2 Ground PERp2 Receiver differential pair, Lane 2 Ground PERn2 PETp3 Ground Transmitter differential pair, One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 9... - Page 10 4 Board side pin-out on both sides of the Link is identical. The cable assembly incorporates a null modem for the PCIe transmit and receive pairs. PCI Express x16 Connector Pin Assignment Row B, Pin 19 Row A, Pin 1 One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 10...
- Page 11 Pull Centerline to Radius 13.97 ±0.10 Pull Centerline to Radius 20.67 ±0.10 Pull Centerline to Latch 63.57 ±3.00 Pull Thickness 1.25 Text Height - PCIe 2.70 Text Height - x16 5.60 One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 11...
- Page 12 PoWeR: Provides local power for in-cable redriver circuits. Only needed on long cables. Power does not go across the cable.) PWR_RTN PoWeR ReTurN: Provides local power return path for PWR pins. CWAKE# Cable WAKE CPERST# Cable PCI Express Reset One Stop Systems OSS-PCIe-HIB38-x16-H/T Specifications subject to change without notice Page 12...
