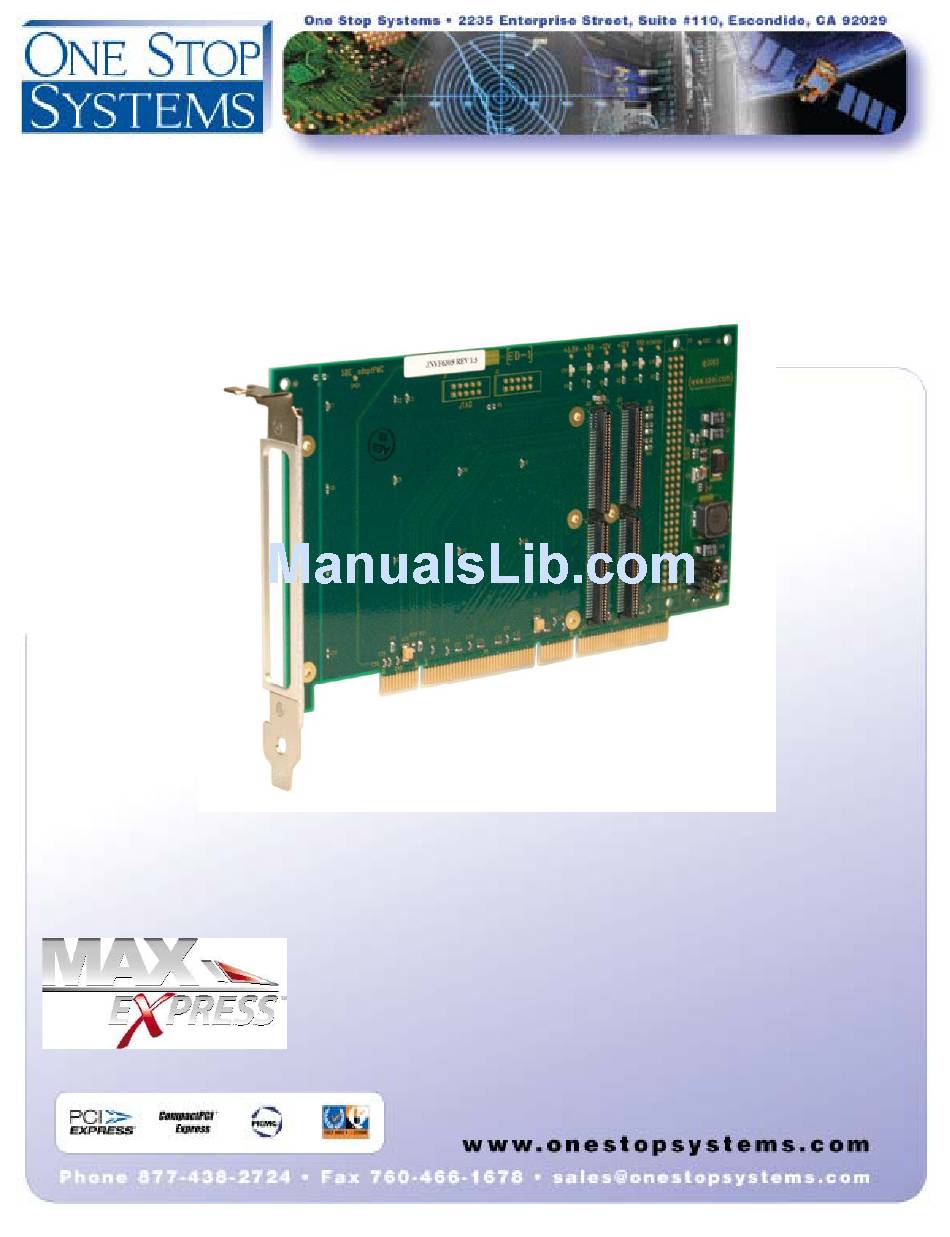

- Page 1 Four Port Gigabit PCI Adapter OSS-adaptPCI-PMC One Stop Systems, Inc. OSS-adaptPCI-PMC User Manual Rev. A...
- Page 2 Inspect the equipment for shipping damage. Save all packing material for storage or return shipment of the equipment. For repairs or replacement of equipment damaged during shipment, contact One Stop Systems, Inc. to obtain a Return Materials Authorization (RMA) number and further shipping instructions.
- Page 3 OSS-adaptPCI-PMC: Installing Insert the OSS-adaptPCI-PMC an open PCI slot. The adapter is a universal-keyed 64 bit 3.3V or 5V board. Make sure that the adapter is well seated and tighten the screw. Close the chassis according to your system documentation Attach the ethernet cables.
- Page 4 5 to 90% non-condensing Shock: 30g acceleration peak (11ms pulse) Vibration: 5-17 Hz 0.5” double amplitude displacement; 7-2000Hz, 1.5g acceleration. Agency Compliance Designed to meet, but not tested Pending Block Diagram One Stop Systems, Inc. OSS-adaptPCI-PMC User Manual Rev. A...
- Page 5 PRSNT1# -R20 PRSNT2#- R21 Add-in Card Configuration Open Open No card Installed Ground Open Card In, 25W Card Open Ground Card In, 15W Card Ground Ground Card In, 7.5W Card One Stop Systems, Inc. OSS-adaptPCI-PMC User Manual Rev. A...
- Page 6 Any Other State Jn1 through Jn3 connectors The Jn1 through Jn3 connectors map directly to the PCI edge card connector. See the IEEE P1386.1-2001 specification, Table 1, for the mapping by signal name. One Stop Systems, Inc. OSS-adaptPCI-PMC User Manual Rev. A...
- Page 7 The JN4 connector is mapped to a VME style P2 connector as shown in the following table. This connection conforms to VITA 36- 199X Draft 0.1, July 19, 1999. POWER +3.3V +3.3V One Stop Systems, Inc. OSS-adaptPCI-PMC User Manual Rev. A...
- Page 8 Two test points for ground are also provided. Both test points are located at the top edge of the board, one at the front (GND1), and the other (GND2) at the rear of the card Power test points Power test points are provided directly above the associated power LED One Stop Systems, Inc. OSS-adaptPCI-PMC User Manual Rev. A...
