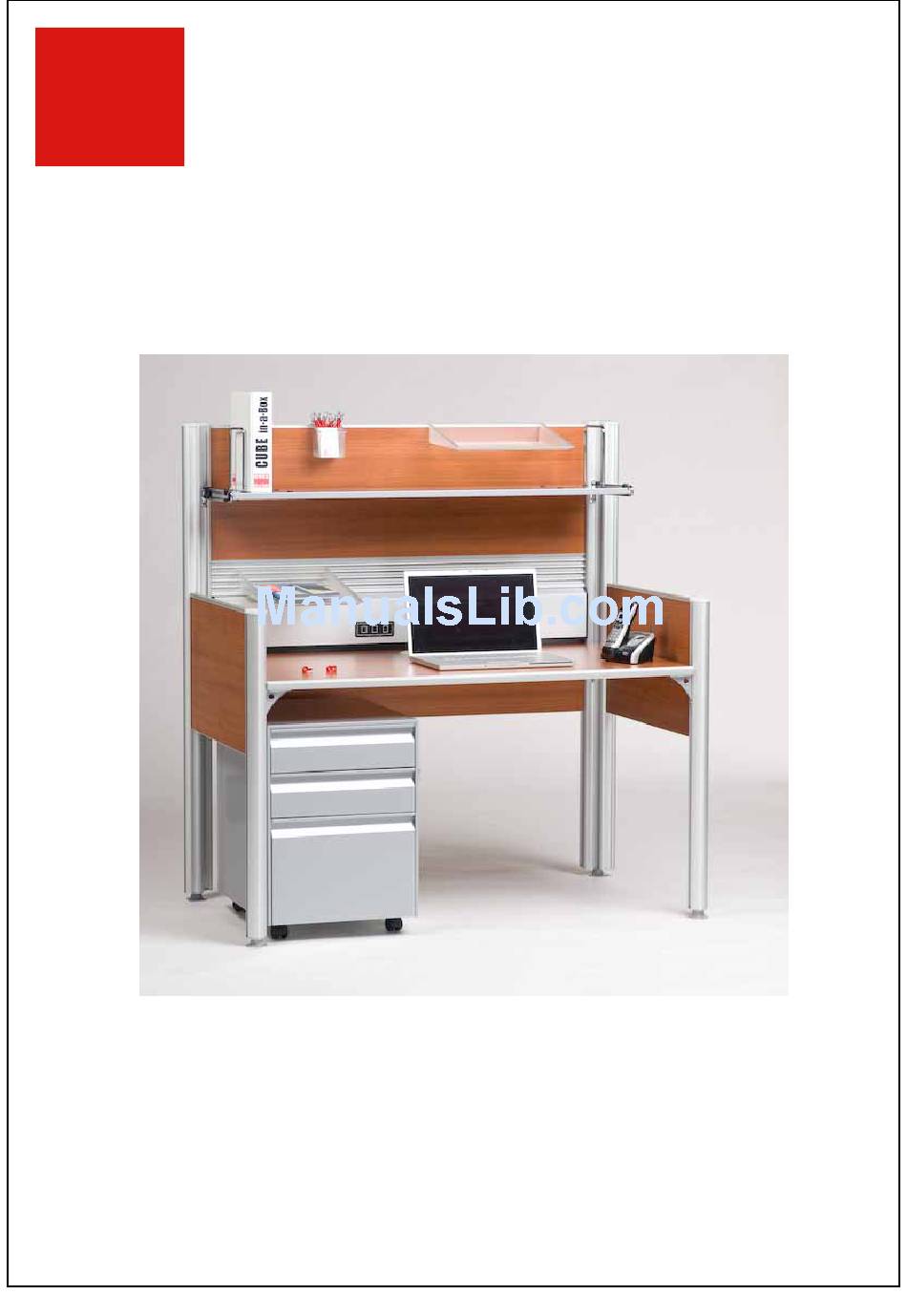

- Page 1 CUBE in-a-box V1.series Detailed Assembly Instructions Tools needed: 1 screwdriver (or drill), Philips head Time of assembly: 20-30 minutes with 2 people For help call our Toll Free Customer Service at: 1.855.882.3905...
- Page 3 - 1 - Cube in-a-Box – V1.series Unpack carefully all the parts, and double check quantities with the packing list. If there is a problem with the count, call our Customer Service at 1.855.882.3905 or email us at infosales@cubeinabox.com Slide first panel 1T (28”W) into end-post A (37”H) on...
- Page 4 - 2 - Insert each filler designed to hide the empty space on both posts B, as per pictures, right and left. Assemble the 2 plastic wire-guides and make sure the 4 bracket have their big chromed screws in place. Slide/adjust at first the 2 wire-guides into posts B where you will need them,...
- Page 5 - 3 - Use the leveler to adjust the work-top and brackets. You may use an electric drill to screw the work-top. Use the black wood-screws. Place the raceway cover on top of the plastic cavaliers on each side of the panel. To close the raceway cover, push down on each side of the cover until it clips in.
- Page 6 - 4 - Place the metal-caps on top of each post. Tighten them with the self tapping metal-screws. Place the magnet plastic caps on top. Place the 2 paper trays and the pencil box wherever you want them, inside or outside the cubicle.
