CUBE in-a-box V3 Series Manual

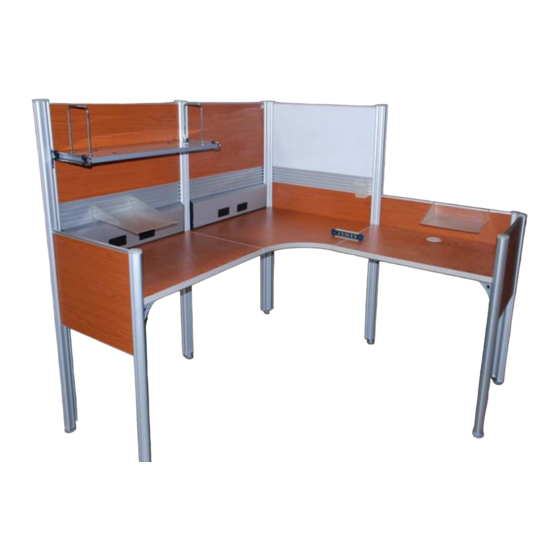

Standard cubicle 72"w x 72"d

Table of Contents

Need help?

Do you have a question about the V3 Series and is the answer not in the manual?

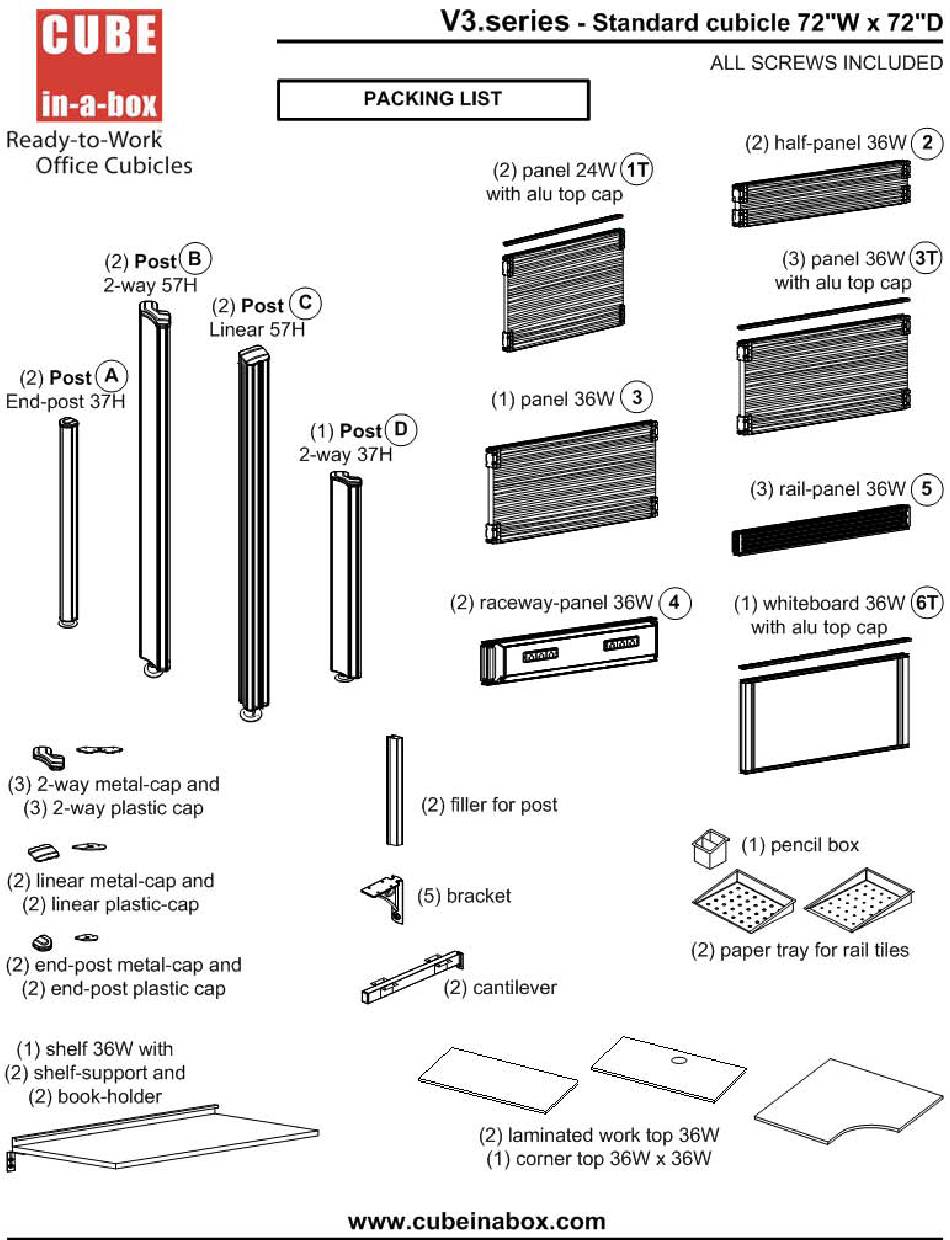

Page 2 - 1 - Cube in-a-Box – V3.series – Assembly Instructions Unpack all the parts, check quantities with the packing list. If there is a problem with the count, call our customer service at 1-888-880-2823 (Pacific Time) or email at infosales@cubeinabox.com Slide panel 1T * (24”W) in...
Page 3 - 2 - Slide raceway-panels 4 on top of the half-panels 2. Slide rail-panels 5 ** on top of the raceway-panels. **TIP 2: Rail-panels must be installed with hooks facing up so paper and pencil trays can hold on them. Slide panels 3T (36”W) on top of the rail-panels 5.
Page 4 - 3 - Repeat for all brackets and cantilevers. You just need to tighten the big chromed- screw to make it hold. Display brackets on all corners and on all end posts. Insert each fillers to hide the empty space at end of posts B and C, as per pictures.
Page 5 - 4 - Display the shelf on top of the shelf-supports, then push vertically on each of the black plastic brackets until it fits in. Push the shelf against the panel. Display the book-holders as per the holes. Use a leveler to adjust the shelf-supports height.
