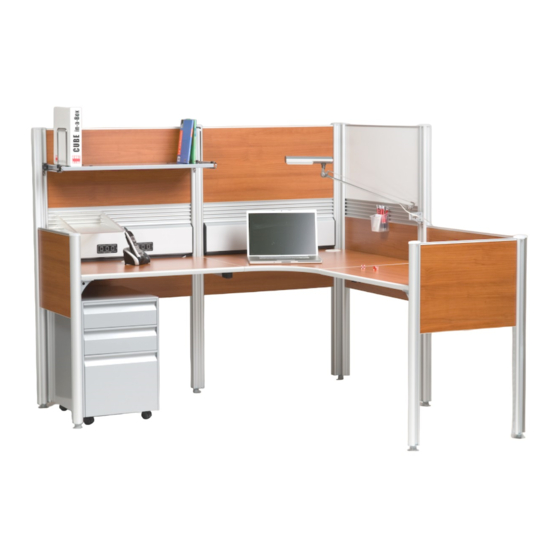

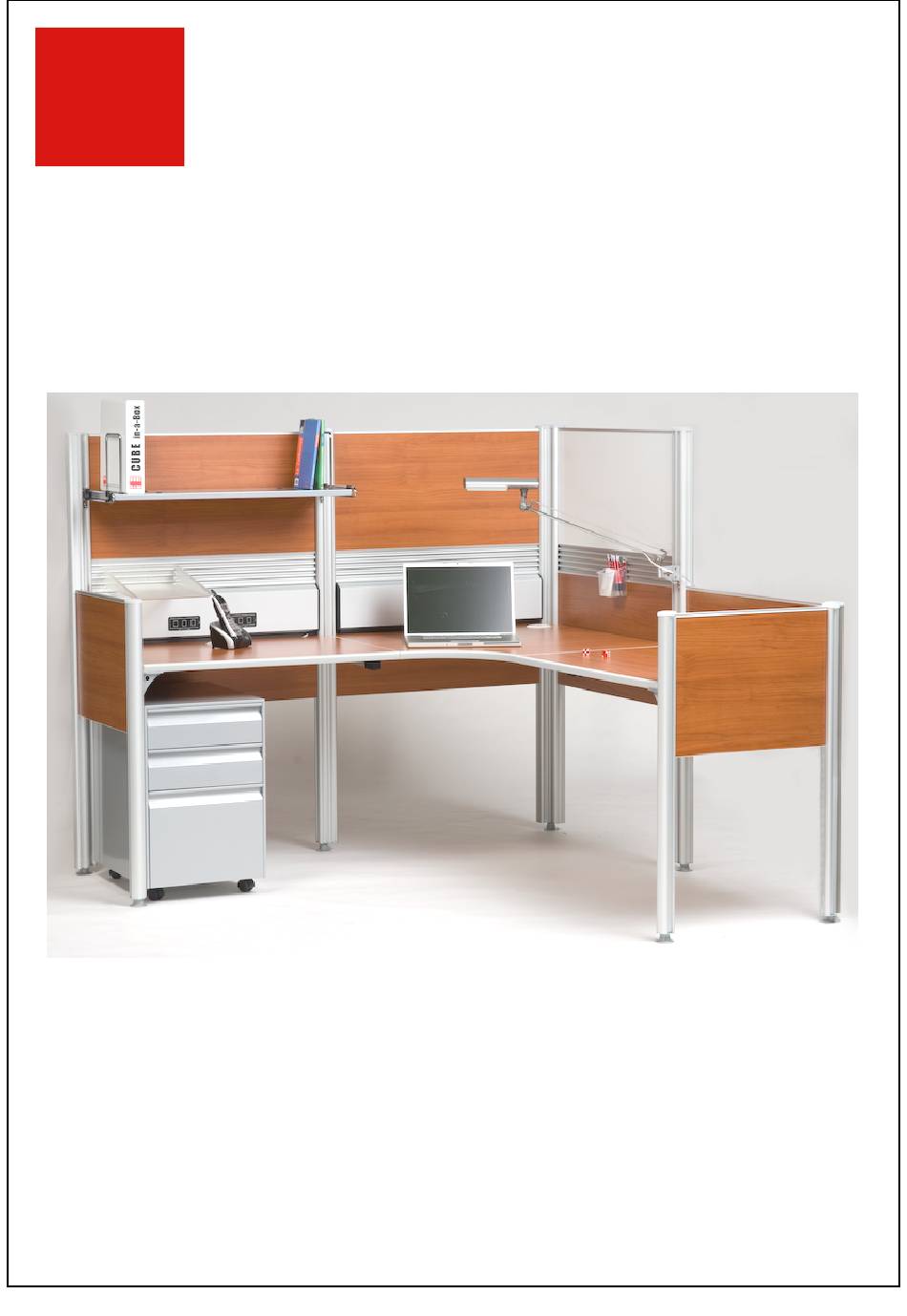

- Page 1 CUBE in-a-box V3.series Detailed Assembly Instructions Tools needed: 1 screwdriver (or drill), Philips head Time of assembly: 30-45 minutes with 2 people For help call our Toll Free Customer Service at: 1-888-880 CUBE (2823)
- Page 2 - 1 - Cube in-a-Box - Assembly Instructions V3.series Unpack all the parts, Double check quantities with the packing list. If there is a problem with the count, call our Customer Service at 1-888-880-2823 (US Pacific Time) or email at:...
- Page 3 - 2 - Slide panel 1T* (24”W) in between end-post A (37”H), and a 2-way post B (57”H). Then slide half-panel 2 (36”W) in between post B and linear-post C (57”H). *TIP 1: letter T is for panels with a pre-installed alu cap (only on top panels).
- Page 4 - 3 - Slide whiteboard-panel 7T on top of the last rail-panel 6 between posts B and C. Make sure all the panels are stacked all the way down in the posts. Assemble the two wire-guides and slide them into posts where you will need them, preferably under work top level.
- Page 5 - 4 - Place the raceway cover on top of the plastic cavaliers on each side of the frame. To close the raceway cover, push down on each side of the cover until it clips in. Display and level the 3 work tops then screw them (you may use an electric drill).
- Page 6 - 5 - Place the 2 paper trays and the pencil box wherever you want them, inside or outside the cubicle. You are done, enjoy your workstation!! Tell your friends about us!
