Page 1: Gps Receiver

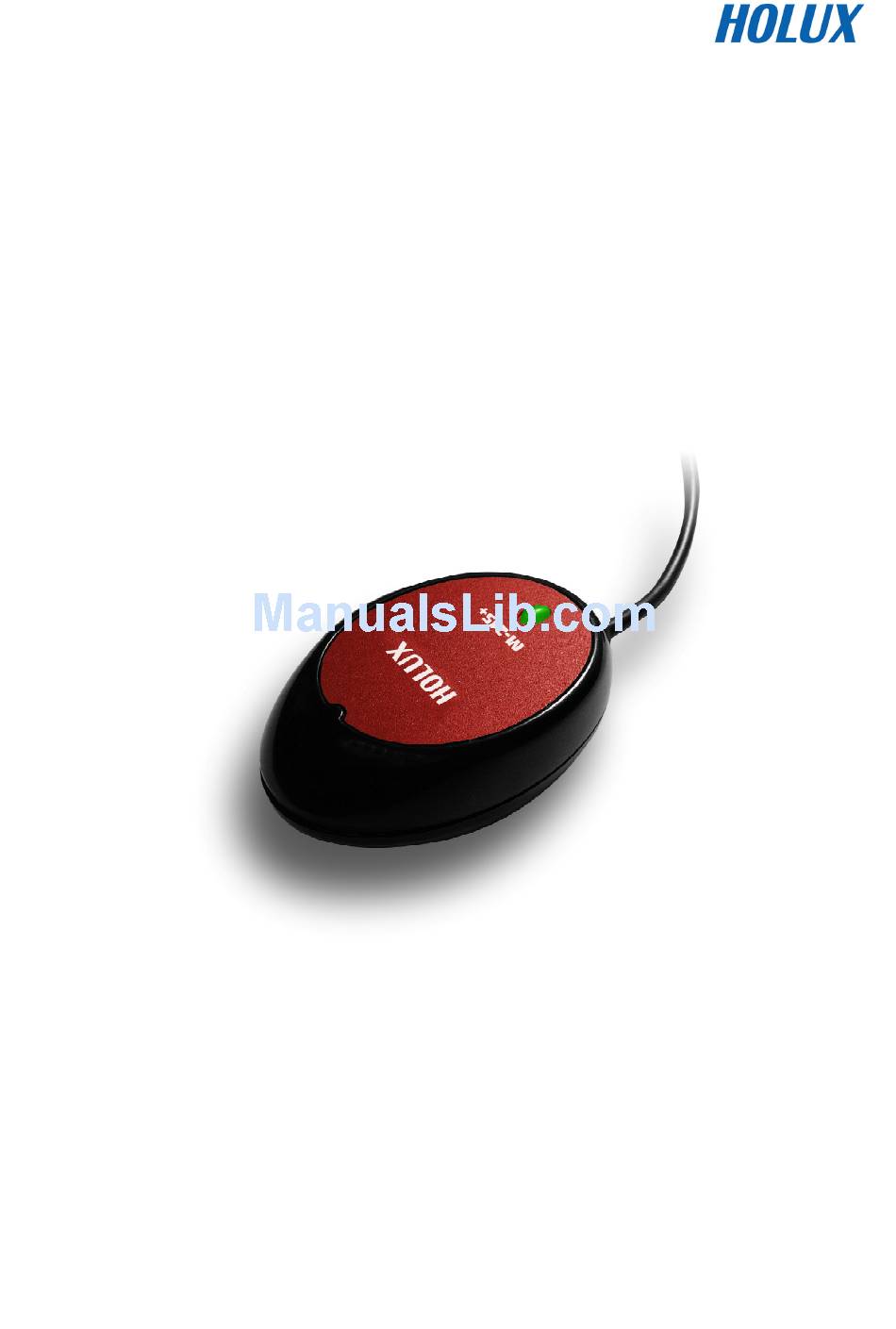

GPS Receiver M-215+ User Manual Version: 1.0... -
Page 3: Table Of Contents
Table of Contents Overview..........................3 Packing List ........................4 Main features........................4 Technical Specification ....................5 Product Overview ......................7 M-215+ ....................7 INTRODUCTION ................8 UTPUT TERMINAL AND DEFINITION USB connector ....................8 PS2 Female connector..................8 RJ-45 Connector ....................9 Optional accessory ......................10 CA-RS232: DB 9 PS-2 : ........10 PINS EMALE AND MALE CONNECTOR... -
Page 4: Warranty Statement
HOLUX, or repairs done by anyone other than HOLUX and authorized retail/service providers. -
Page 5: Overview
Overview The HOLUX M-215+ GPS Receiver provides a easy-to-use trip guiding tool. You are able to enjoy a brand new experience in driving with GPS Receiver. It can support USB, RS-232 (PS2 connector) or RJ-45 cable connection via; it’s more convenient and flexible. -
Page 6: Packing List
Thank you for purchasing the M-215+ GPS Receiver. Before you start, make sure that the following items are included in your package. If any of these items are missing, please contact your original local HOLUX dealer or distributor. M-215+ GPS receiver 1 Set •... -
Page 7: Technical Specification
Technical Specification MTK MT3333 GPS/ GLONASS chipset • 66 parallel searching, 22 tracking channels • Receiver: L1, 1575.42 MHz • C/A code: 1.023 MHz • Update rate: 1Hz. • Antenna type: Built in patch antenna • Basic Minimum signal tracked: -165dBm •... - Page 8 Stop bit: 1 Output format: • Standard: GPGGA(1time/1sec), GPRMC、GNRMC(1time/1sec) GPVTG(1time/1sec), GPGSA (1time/5sec), GNGSA(2time/5sec) GPGSV(1time/5sec), GLGSV(1time/5sec) Altitude: < 18,000 meters (60,000 feet) • Velocity: < 515 meters/ second (1000 Knots) • Use Limitation Acceleration: 4 G • Jerk: 20 meters / second , max •...
-
Page 9: Product Overview
Product Overview M-215+ introduction M-215+ body description see below: LED of GPS（Green） LED status COLOR STATUS DESCRIPTION Light on Acquiring Satellites Green Blinking Position Fixed Position Fixed... -
Page 10: Output Terminal And Definition
Output terminal and definition Three kinds of output type: USB connector • PS2 Female connector • RJ-45 connector • USB connector Signal Name +5V DC Ground PS2 Female connector Signal Name +5V DC N.C. Ground DGPS IN or (N.C.) N. C.: No connection... -
Page 11: Rj-45 Connector
RJ-45 Connector Signal Name N.C. Ground N.C. N.C. N.C. +5V DC N. C.: No connection... -
Page 12: Optional Accessory
Optional accessory M-215+ includes an antenna in a unique style waterproof gadget. Simply connect USB connector or PS-2 female connector to one of the optional accessories linking to your notebook PC, PDA or other devices. CA-RS232: DB 9 pins Female and PS-2 male connector: Cable Length to M-215+: 1 meter RS-232 to PS-2: 45 cm DB 9 pins Female connector function definition:... -
Page 13: Ca-6V30V: High Power Connector
CA-6V30V: High power connector CA-6V30V High power connector Color Signal Name Black Ground +6~30V DC Green White Orange DGPS IN CA-USB: USB connector The USB A Type is equipped with M-215+. The function definition is as follows: Signal Name +5V DC Ground Optional Cigarette Adapter The optional cigarette adapter is with 2-meter cable for using in a car or boat. -
Page 14: Driver Installation
• System: Windows 98/2000/XP/VISTA • Installation Starts the driver installer from HOLUX website. II. Connect M-215+ to computer. System will search new hardware and install the driver automatically. III. Click <Start> menu, select → <Setting>, then enter→ <Controller> IV. After entering <Controller>, and select <System>. -
Page 15: Installation Of Mini Gps Viewer Program
Installation of Mini GPS Viewer program We provide a program “Mini GPS viewer.exe” for end user to watch the satellite signal receiving status on laptop or PDA device. For Windows 2000/XP OS, you can execute “Mini GPS viewer_PC” directly. For Microsoft Pocket PC, please copy “Mini GPS viewer_PPC” to SD card or device, then execute “Mini GPS viewer_PPC”. -
Page 16: Troubleshooting
Troubleshooting Problems Possible Reasons Methods No GPS’s CN Weak or no GPS signal at the Test under an open sky at a place of M-215+ fixed location and run the Mini value output but GPS timer is GPS Viewer “Cold start” counting function. -
Page 17: Federal Communications Commission (Fcc) Statement
Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
