The high-speed wireless USB 2.0 client adapter is the most convenient way to let you put a
desktop/notebook computer almost anywhere without the hassle of running network cables.
Now you don't need to suffer from drilling holes and exposed cables. Once you are connected,
you can do anything, just like the wired network. This USB client adapter operates seamlessly in
2.4GHz frequency spectrum supporting the 802.11b, 802.11g, and 802.11nwireless standards.
It's the best way to add wireless capability to your existing wired network or simply surf the web.
For advanced configuration, refer to the User's Manual in the CD-ROM provided.

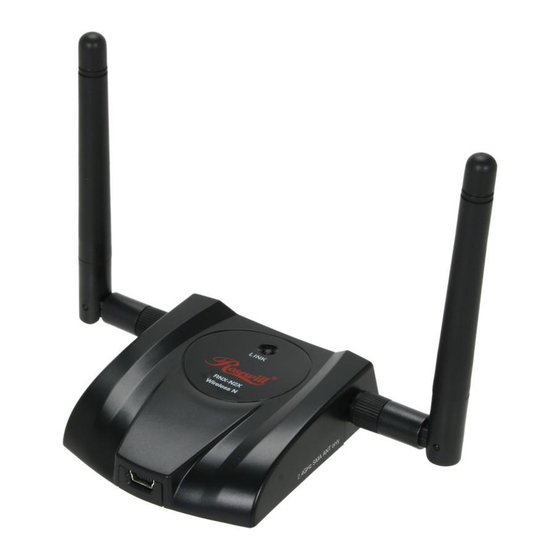

USB Adapter Description

The USB adapter is a standard USB adapter that fits into any USB interface. The USB adapter has two
LED indicators and a built-in antenna.
USB Connector
USB Adapter for Windows 2000/XP/Vista – Installation
During the installation, Vista may need to copy systems files from its installation CD. Therefore,
you may need a copy of the Windows installation CD at hand before installing the drivers.
Follow the steps below in order to install the USB adapter drivers:
1. Insert the CD-ROM that was provided to you in this package. The setup should run
automatically. If the setup does not run automatically, then you must manually select the
setup.exe file from the CD-ROM drive.
2. Once the setup begins you will see the InstallShield Wizard. Select Rosewill Configuration
Tool and then click on the Next> button.
Quick Installation Guide
Wireless Adapter
LINK LED Indicator
1
RNX-N2X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RNX-N2X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosewill RNX-N2X

Summary of Contents for Rosewill RNX-N2X

  • Page 1: Quick Installation Guide

    If the setup does not run automatically, then you must manually select the setup.exe file from the CD-ROM drive. 2. Once the setup begins you will see the InstallShield Wizard. Select Rosewill Configuration Tool and then click on the Next> button.
  • Page 2 Quick Installation Guide Wireless Adapter RNX-N2X 3. Click on the Install button to begin the installation. 4. The installation is complete. Click on the Finish button.
  • Page 3 Quick Installation Guide Wireless Adapter RNX-N2X 5. Carefully insert the USB adapter into the USB port. Windows will then detect and install the new hardware. 6. An R icon will then appear in the system tray. Right click on the R icon and then click on Launch Config Utilities.
  • Page 4 4. TX Power: Select a transmit power from the drop-down list.. 5. Click on the Apply button to save the changes. Laptop clip Hardware Installation/ Uninstallation 1. Connect laptop clip to RNX-N2X wireless adapter. 2. Connect laptop clip to Your Laptop LCD monitor.
  • Page 5 Quick Installation Guide Wireless Adapter RNX-N2X 3. Uninstallation: Take off the laptop clip from RNX-N2X as picture. RNX-N2X Application Direction A type ( For Laptop ) Connect to laptop by flexible stainless steel extended connector. B type ( For Laptop ) Connect to laptop by laptop clip and USB Cable.
