- Page 1 Wireless N Adapter RNX-N2LX Quick Installation Guide...
-
Page 2: About This Guide
Wireless N Adapter RNX-N2LX Quick Installation Guide About This Guide This Quick Installation Guide only provides you some basic configuration instructions. For more detailed information, please refer to the Wireless Network Adapter User Manual. Before you begin, you must check the following minimum system requirements... -
Page 3: Install Driver And Utility
Wireless N Adapter RNX-N2LX Quick Installation Guide Install Driver and Utility Software Installation Insert the Driver and Utility CD-ROM into the CD-ROM driver. The Wizard should run automatically, and Figure 1-1 should appear. If not, click the Start button and choose Run. In the field that appears, enter D:\autorun.exe (if ‘’D’’... - Page 4 Wireless N Adapter RNX-N2LX Quick Installation Guide Figure 1-2 Click Next Figure 1-3 Click Install to start installing...
- Page 5 Wireless N Adapter RNX-N2LX Quick Installation Guide Figure 1-4 Follow the InstallShield Wizard steps, and click Finish when done. Figure 1-5 Now your PC or notebook will restart automatically.
-
Page 6: Install Wireless Adapter

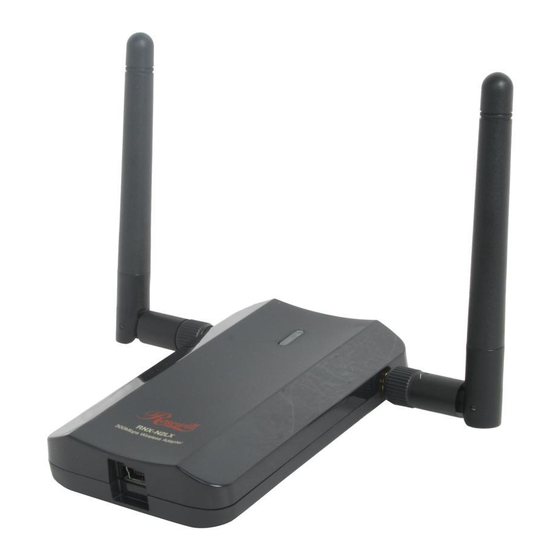

Wireless N Adapter RNX-N2LX Quick Installation Guide Install Wireless Adapter The wireless USB Adapter supports up to 300 Mbps wireless connection. This USB adapter is fully compliant with the specifications defined in IEEE802.11n standard. It is designed to complement USB2.0 computers and supports Windows98SE/Me/2000/XP/Vista/Win7. - Page 7 Wireless N Adapter RNX-N2LX Quick Installation Guide Figure 1-7 Now you have completed the driver and hardware installation for the adapter. Configure your wireless adapter Double-click the icon on your desktop to run Figure 1-8 Select Available Network tab and click Refresh button to refresh current...
- Page 8 Wireless N Adapter RNX-N2LX Quick Installation Guide Figure 1-9 Double-click a wireless network which you want to connect...
- Page 9 Wireless N Adapter RNX-N2LX Quick Installation Guide Figure 1-10 Choose the Network Authentication Mode and Data encryption from the drop-down menu and import the network key in popup window. Then click OK button.
- Page 10 Wireless N Adapter RNX-N2LX Quick Installation Guide Figure 1-11 Congratulations! You’ve successfully configured your wireless adapter and connected to a wireless network!
