05-8. Baud-Rate Configuration

1) New MFC can be used as a communicational distributor for any devices with its various
communicational speeds.

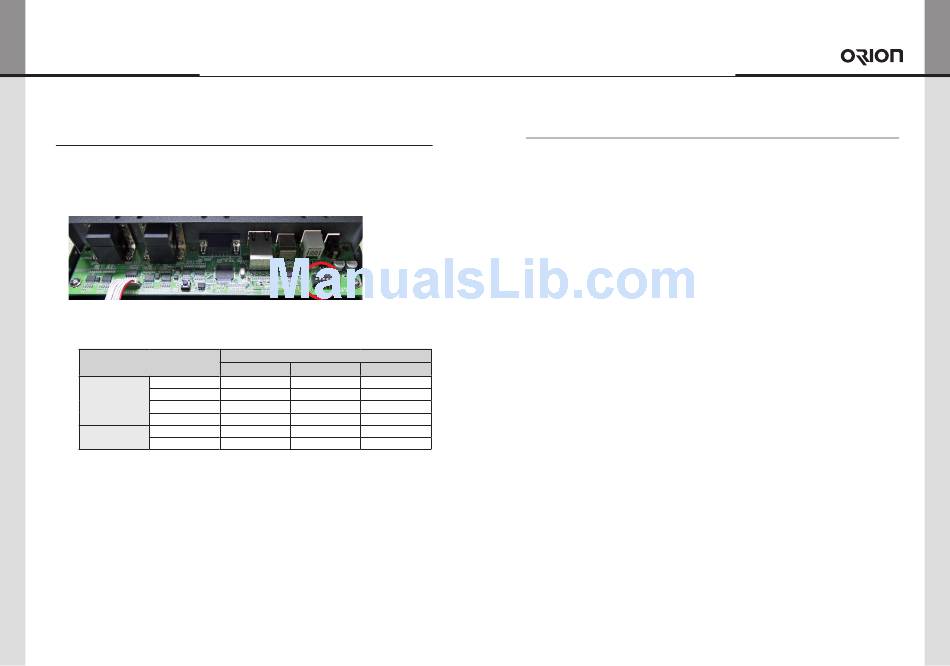

2) To configure the baud-rate, adjust the baud-rate switch(SW6), which is circled at the lower
right corner of the following picture.
* SW6 is used for BIC on/off (Pin No.1) and baud-rated configuration (Pin No.3~5) commonly.
3) Baud-Rate Configuration
Mode
9600bps
19200bps
Daisy-chain In
57600bps
115200bps
9600bps
Daisy-chain Out
115200bps
26 | ORION CO., LTD.
Switch (SW6) - 3,4,5
3pin 4pin 5pin
On On -
Off On -
On Off -
Off Off -
- - On
- - Off
06.
Before calling for service
Before calling for service, check the following and then contact the dealership
where you purchased this product.
1. New MFC is not turned off even after product power cable is
disconnected.
- New MFC and product set work with the independent power supplies.
When you need to turn on the product again, please connect power cable and press "ON"
button in the New MFC.
- If you want to turn off New MFC, please disconnect the power cable of the New MFC.
2. New MFC does not work with no reason.
- Please disconnect and reconnect the adapter.
- Please replace batteries of the remote controller.
ORION CO., LTD. | 27
