Summary of Contents for Smeg SA37X

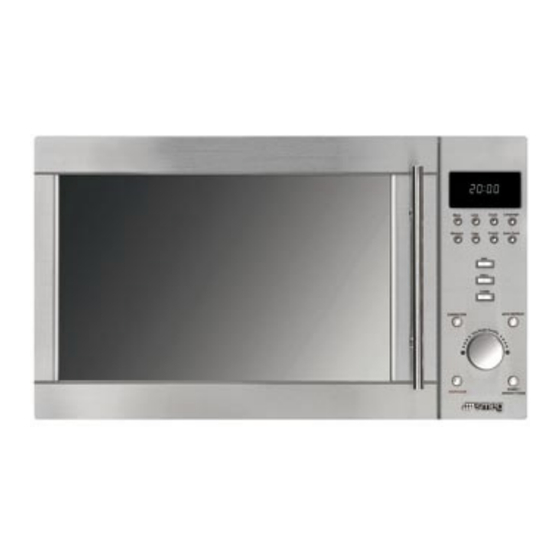

- Page 1 � � � � � � and operating technology with style instructions SA37X microwave...
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1. -
Page 4: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. -
Page 5: Specifications
SPECIFICATIONS POWER SUPPLY 240V~ / 50Hz, SINGLE PHASE WITH EARTHING POWER CONSUMPTION 1400 W MICROWAVE OUTPUT POWER 1000 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 560 X 344 X 471 mm CAVITY DIMENSIONS (W X H X D) 369 X 240 X 390 mm NET WEIGHT APPROX. -
Page 6: Features Diagram
FEATURES DIAGRAM 1 Safety interlock system-Prevents the oven 5 Door seal-The door seal surfaces prevent from operating while the door is opened. microwaves escaping from the oven cavity. The oven will only operate with the door fully 6 Glass cooking tray-Made of special heat closed. - Page 7 FEATURES DIAGRAM ( continued ) Defrost Auto Cook Weight Time Kitchen Lock no/cups Timer Kitchen More Less Clock Timer Frozen Frozen Dish vegetable Pasta pizza warmer Power Auto Def. Defrost Auto Cook Speedy Cook Stop/Clear Start 9 Display- Cooking time, power level, indicators y Auto Def.- Used to defrost foods.
-
Page 8: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a 240V 50Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 9: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power ever turns off, the display shows “ :0” when the power comes back on. 1. -
Page 10: Time Defrosting
TIME DEFROSTING When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Press Defrost button. The Time indicator appears and “ : 0” is Defrost displayed. -
Page 11: Cooking In Two Stage
COOKING IN TWO STAGE 1. Press Power button. (Select The M/W 1 indicator appears and the display Power the desired power level.) will show what you selected. This example shows power level 6. NOTE: If step 1 is omitted, the oven will cook at full power. -
Page 12: Sequence Programming
SEQUENCE PROGRAMMING The oven allow you to automatically begin microwave cooking after defrosting. 1. Press either Defrost or Auto The Time or Weight indicator appears and “ : 0” Defrost Def. is displayed. 2. Turn the DIAL KNOB to adjust The display will show what you selected. -
Page 13: One Touch Cooking
ONE TOUCH COOKING One touch cook allows you to cook or reheat many of your favorite foods by pressing just one button. To increase quantity, press chosen button until number in display is same as desired quantity to cook. 1. Touch Frozen Vegetable When you touch Frozen Vegetable pad once, Frozen pad once for 200g or twice for... -
Page 14: Speedy Cooking
ONE TOUCH COOKING (CONTINUED) 1. Press Dish Warmer button When you press Dish Warmer button once, Dish once for 350g or twice for 450g. “350” is displayed. Warmer After the 1.5 seconds, the display changed into cooking time and the oven starts cooking. * DISH WARMER * •... -
Page 15: Auto Cook
AUTO COOK AUTO COOK allows you to cook or reheat many of your favorite foods by repeatedly touching AUTO COOK button. 1. Press Auto Cook button. When you press Auto Cook button once, Auto Cook “AC-1” is displayed. By repeatedly pressing this button, you can select one of the four menu programs as shown in the chart below. -
Page 16: Less, More
LESS, MORE To alter one touch cooking or cooking time whilst oven is in operation, use Less or More.(except for defrosting) Press Less or More button to decrease/increase the one touch cooking time in multiples of 10 seconds. The overall one touch cooking time can be increased to a maximum of 99 minutes 00 second. CHILD SAFETY LOCK SAFETY LOCK lock prevents unwanted oven operation such as by small children. -
Page 17: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN 1. Turn the oven off before cleaning. 6. It is occasionally necessary to remove the 2. Keep the inside of the oven clean. glass tray for cleaning. Wash the tray in warm When food spatters or spilled liquids adhere to sudsy water or in a dishwasher. -
Page 18: Before You Call For Service
BEFORE YOU CALL FOR SERVICE Refer to the following checklist, you may prevent an unnecessary service call. * The oven doesn't work; 1. Check that the power cord is securely plugged in. 2. Check that the door is firmly closed. 3. -
Page 19: Questions And Answers
QUESTIONS AND ANSWERS * Q : Why do eggs sometimes pop? A : When baking or poaching eggs, the yolk may pop due to steam build-up inside the yolk membrane. To prevent this, simply pierce the yolk with a toothpick before cooking. Never cook eggs without piercing their shells. -
Page 20: Utensil Test
Only use utensils that are suitable for use in microwave ovens. UTENSILS TEST Place the utensil in question next to a glass measure filled with water, in the microwave oven. Microwave at high power for 1-2 minutes. If the water heats up, but the utensil remains cool, the utensil is microwave-safe. -
Page 21: Use Your Microwave Oven Safely
USE YOUR MICROWAVE OVEN SAFELY General Use Do not attempt to defeat or tamper with safety interlocks. Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. Never use abrasive powders or pads. Do not subject the oven door to strain or weight such as a child hanging on an open door. -
Page 22: Microwaving Principles
MICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones. HOW MICROWAVES COOK FOOD Microwave oven is a Group 2 ISM equipment in which radiofrequency energy is intentionally generated and used in the form of electromagnetic radiation for the treatment of material. -
Page 23: Cooking Techniques
COOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, The colder the food, the longer it takes to heat up. require standing time(inside or outside of the oven) Food from a fridge takes longer to reheat than food after cooking, to allow heat to finish conducting to at room temperature. -
Page 24: Defrosting Guide
DEFROSTING GUIDE • Do not defrost covered meat. Covering might allow cooking areas. If still slightly icy, return to microwave oven very to take place. Always remove outer wrap and tray. Use only briefly, or let stand a few minutes. After defrosting, allow containers that are microwave-safe. -
Page 25: Cooking & Reheating Chart
COOKING & REHEATING CHART Item Power Level Cooking Time Per lb./g MEAT Beef Standing / rolled Rib - Rare P-80 9-11 min. - Medium P-80 10-12 min. - well done P-80 12-14 min. Ground Beef (to brown for casserole) P-HI 5-7 min. -
Page 26: Vegetable Chart
VEGETABLE CHART * Note : Use power level High (P-HI) unless otherwise noted. VEGETABLES AMOUNT TIME SPECIAL INSTRUCTIONS Asparagus Fresh spears 1 lb./450g 5-8 min. In medium casserole, place cup water. Frozen spears 10 oz./280g package 4-7 min. In medium casserole. Beans Fresh green 1 lb./450g cut in half... -
Page 27: Recipe
RECIPE TOMATO & ORANGE SOUP 1 oz.(25g) butter 1. Melt the in a large bowl on P-HI for 1 minute. 1 medium onion, chopped 2. Add the onion, carrot and potato and cook on P- 1 large carrot & 1 large potato, chopped HI for 6 minutes. -
Page 28: White Sauce
BLUE CHEESE & CHIVE JACKETS 2 baking potatoes, 1. Prick each potato in several places. Cook on P-HI (approx.9 oz.(250g) each) for 12-13 minutes. Halve and scoop the flesh into 2 oz.(50g) butter a bowl, add the butter, cheese, chives, mushrooms, salt and pepper, mix thoroughly. - Page 29 SCRAMBLED EDD oz.(15g) butter 1. Melt the butter in a bowl on P-HI for 1 minutes. 2 eggs 2. Add the eggs, milk and seasoning and mix well. 2 tbsp(30ml) milk 3. Cook on P-HI for 3 minutes, stirring every 30 seconds.
