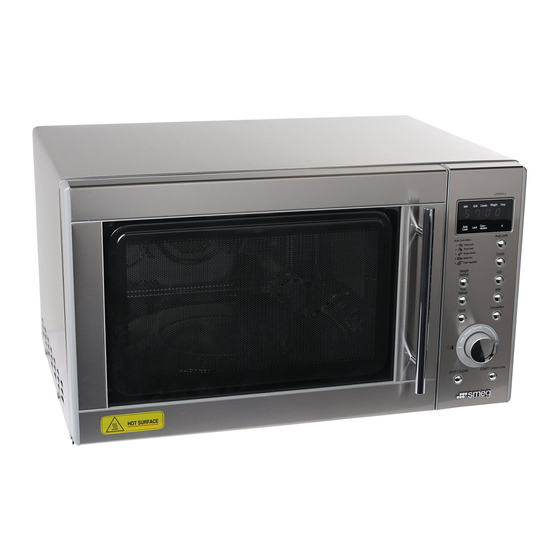

- Page 1 MICROWAVE CONVECTION/GRILL OVEN SA985-2CX OWNER’S MANUAL Before operating this oven, please read these manual completely.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. - Page 3 INSTALLATION AND EARTHING INSTRUCTIONS How to examine your microwave oven after unpacking. We recommend the use of good quality plugs and wall sockets that can be switched off when the machine is not in use. Unpack oven, remove all packing material, and examine the oven for any damage such as dents, broken door, latches or IMPORTANT-The wires in the mains lead fitted to this appliance cracks in the door.
-
Page 4: Installation And Earthing Instructions
IMPORTANT SAFETY INSTRUCTONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE When using electrical apliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 11. - Page 5 General Use READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 11.
-
Page 6: Which Utensils Can Be Used In The Oven
WHICH UTENSIL CAN BE USED IN THE OVEN? Before use, the user should check that utensils are suitable for use in microwave ovens. Utensils made of china and ceramic excellent to use in your Grill & Microwave Combined microwave oven. Most types of glass are also very good. Convection Material cooking... -
Page 7: Cooking Instructions
COOKING INSTRUCTIONS Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry. The following table lists various of utensil and indicates whether and how they should be used in a microwave oven. -
Page 8: Feature Diagram
FEATURES DIAGRAM 1 DOOR HOOK - When the door is closed, it will 8 TURNTABLE TRAY - Rotates during cooking and ensure automatically lock shut. If door is opened while oven is even distribution of Microwaves. operating, the magnetron will immediately stop operating. It can also be used as a cooking utensil. - Page 9 FEATURES DIAGRAM(continued) 1 Display : Cooking time, power level, indicators and present time are displayed. MW : When blinking, the oven is operating in MICROWAVE COOK. Grill : When blinking, the oven is operating in GRILL. Combi : When blinking, the oven is operating in COMBI. Defrost Weight : When blinking, the oven is operating in WEIGHT DEFROST.
-
Page 10: Accessories
ACCESSORIES This oven comes equipped with several accessories. They can be used in various ways to facilitate cooking. Turntable tray or turntable This metal tray fits over the rotating base and locks into place. Rotating base This is to be used in the oven for all cooking. It rotates This fits over the shaft in the center of the oven’s cavity floor. -
Page 11: Before Operation
BEFORE OPERATION SETTING THE CLOCK When your oven is plugged in, the display will flash “ :0” and a tone will sound. If the AC power ever goes off, the display shows “ :0” when the power comes back on. Your oven has multiple(12hr/24hr) clock system. -
Page 12: Child Lock And Power Save Mode
CHILD LOCK AND POWER SAVE MODE Child lock : The child lock prevents the oven from being used. For example because children could hurt themselves on hot liquids etc. Power save mode : This function is used for saving energy. To set child lock 1. -
Page 13: Operation
OPERATION Tips : Also remember to read this operating instruction for proper safety information and instruction before using the oven. Prior to setting the controls, place one cup of water in the oven, on a heat-proof glass measuring cup, for testing purposes. Note : When the operation is finished the oven beeps three times, "... -
Page 14: Grill Cooking
GRILL COOKING The grill enables you to heat and brown food quickly, without using microwaves. 1. Press Grill button once. GRILL(upper grill) indicator lights. 2. Turn the dial knob to set the grilling time. For a grilling time of 11 minutes, turn the dial knob to the right to set 11:00.( up to 60 minutes ) “11:00”... -
Page 15: Convection Cooking(With Pre-Heat)
CONVECTION COOKING(with pre-heat) For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. The maximum preheating time is 30 minutes. If the cooking is not started immediately after preheating, the convection indicator will continue to flash and the preheated oven temperature will be displayed. -
Page 16: Convection Cooking(Traditional Cooking)
CONVECTION COOKING(traditional cooking) The convection mode enables you to cook food in the same way as in a traditional oven. Microwaves are not used. Always use oven gloves when touching the recipients in the oven, as they will be very hot. 1. -
Page 17: Combination Cooking
COMBINATION COOKING ( Microwave + Convection + Upper Grill ) This function allows you to combine convection operation with microwave to produce traditional baked or roasted results in less time. Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. -
Page 18: Weight Defrost
WEIGHT DEFROST Auto Defrost automatically sets the defrosting times and power levels to give even defrosting results for frozen food. During the defrosting process the oven will beep to remind you to check the food. The oven will beep, open the door, turn the frozen food over and close the door, press the START/SPEEDY COOK button. -
Page 19: Auto Cook
AUTO COOK This function allows you to simply and automatically cook a range of popular foods. Always use oven gloves when touching the recipients in the oven. 1. Press Auto Cook button once. Auto Cook indicator light. "AC-1 " will show in the display. 2. -
Page 20: Speedy Cook
SPEEDY COOK The speedy cook function allows the oven to being cooking immediately on full power. The speedy cook button has been pre-programmed to increase in increments of 30 seconds up to a maximum time of 5 minutes. 1. Press START/SPEEDY COOK button. The oven will be "... -
Page 21: General Guide Lines
GENERAL GUIDE LINES Covering food helps: Since microwave cooking to some extent is different from • To reduce spattering traditional cooking, the following general guidelines should be • To shorten cooking times considered whenever you use your microwave oven • To retain food moisture If the food is undercooked All covering, which will allow microwaves to pass through are suitable-See above “Which utensils can be used in the oven?”... -
Page 22: Keep The Oven Clean
KEEP THE OVEN CLEAN DOOR While the oven door is still warm, any spatters or food soils should be wiped off with a damp sudsy cloth or sponge. Rinse with water and wipe dry with a cloth. If steam or condensation appears around this area, wipe with a cloth. -
Page 23: Before Calling For Service
BEFORE CALLING FOR SERVICE You can often correct operating problems yourself. Note: If your microwave/grill oven fails to work properly, It is quite normal for steam to be emitted around the door locate the operating problem in the chart below and during the cooking cycle. -
Page 24: Questions And Answers
QUESTIONS AND ANSWERS * Q : I accidentally ran my microwave oven without any * Q : What does “standing time” mean? food in it. Is it damaged? A : “Standing time” means that food should be removed from the oven and covered for additional time to allow it A : Running the oven empty for a short time will not damage the oven. -
Page 25: Specifications
SPECIFICATIONS Power supply 240V~,50Hz Power consumption 1450 W Microwave Output power 900W ( IEC 705 ) Frequency 2,450 MHz Grill power consumption 950 W Convection power consumption 1550 W Combination heating power consumption 1550 W Outside Dimension(W x D x H) 542(21.3) x 515(20.3 x 329(13.0)mm (inch) Cavity Dimensions(W x D x H) 350(13.8) x 355(14.0) x 230(9.1)mm (inch)
