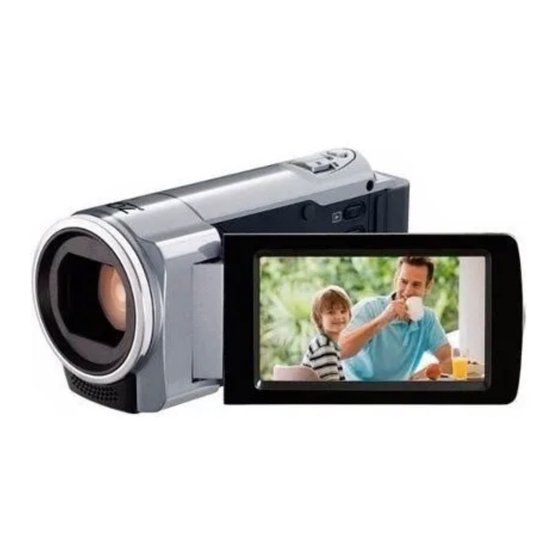

MEMORY CAMERA GZ-MS150U Basic User Guide Dear Customers Thank you for purchasing this JVC product. Before use, please read the Safety Precautions and Cautions on p. 2 and p. 24 to ensure safe use of this product. Detailed User Guide A “Basic User Guide”...
The battery pack, the camcorder with battery installed, and the remote control with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Page 3
Make a backup of important recorded data use caution when moving the cart/ JVC will not be responsible for any lost data. It is recommended to copy your important recorded apparatus combination data to a disc or other recording media for storage.
A “Basic User Guide” (this manual) and a “Detailed User Guide” are available for this product. For more details on operating this product, please refer to the “Detailed User Guide” at the following website. http://manual.jvc.co.jp/index.html/ You can also access the website from the supplied CD-ROM. (p. 18) Verifying the Accessories...
: Forward search OK/INFO Button Confirms the selection. / Displays information as follows. Recording : Displays the remaining time and battery power. Playback : Displays file information such as recording date. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Goes out CAUTION Be sure to use JVC battery packs. If you use any other battery packs besides JVC battery packs, safety and performance cannot be guaranteed. Charging time: Approx. 2 h 10 m (BN-VG108U)/1 h 50 m (BN-VG107U) (using supplied battery pack) * The charging time is when the unit is used at 25°C (77°F).
Open the lever on Close the lever the strap lock of the belt Using as a Hand Strap Adjust the length of the belt and loop it around your wrist. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
To protect the data, do not touch the terminals of the SD card. Eye-Fi manufactures SD memory cards with wireless LAN function. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Page 9
E Select “YES” and press OK. formatting. F After formatting, press OK. A Press MENU. B Select “MEDIA SETTINGS” and press OK. C Select “FORMAT SD CARD” and press OK. FORMAT SD CARD For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
CLOCK/AREA SETTING Select “YES” and press OK when “SET DATE/TIME!” is displayed. SET DATE/TIME! To return to the previous screen Press MENU. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
“SET DATE/TIME!” is displayed when you turn on this unit after it has not been used for a prolonged period. Charge this unit for more than 24 hours before setting the clock. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
The estimated recording time of the supplied battery pack is approximately 40 minutes. (p. 21) Do not remove the battery pack, AC adapter, or SD card when the access lamp is lighted. The recorded data may become unreadable. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Zoom T / Vol.+ Increases volume level Zoom W / Vol.- Decreases volume level UP/< Reverse search Frame-by-frame playback in reverse direction DOWN/> Forward search Frame-by-frame playback in forward direction For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Images are projected vertically on SETTINGS” menu to “4:3”. the TV. Adjust the TV’s screen accordingly. Images are projected horizontally on the TV. Adjust the TV’s screen accordingly. The color of images looks strange. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
* For details on how to create a disc using a computer, refer to the Detailed User Guide. NOTE It is not possible to connect and record to a DVD writer, external Blu-ray drive, or external hard disk. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
SETTINGS” menu to “ON”. Set “ON-SCREEN DISPLAY” in the playback menu to “ON”. Start recording. Start playback on this unit and press the record button on the recorder. After playback is complete, stop the recording. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Graphic: Intel G945 or higher recommended NOTE If your PC does not meet the above system requirements, the provided software cannot be used. For more information, contact your PC’s manufacturer. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
“Windows Installer” appears after a while. Installation ends and icon is created on If it doesn’t appear, double-click the the desktop. CD-ROM icon in “My Computer”. Click “Next”. Follow the on-screen instructions. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Page 19
The provided software LoiLoScope D Disconnect the USB cable and MediaBrowser starts up on the PC. close the LCD monitor. The subsequent operations are to be performed on the PC. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
DISPLAY ON TV VIDEO OUTPUT MEDIA SETTINGS FORMAT SD CARD To return to the previous screen Press MENU. For more information on the settings, refer to the Detailed User Guide. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Use of this software is authorized according to the terms of the software license. (for inquires regarding this unit) When c ontacting the nearest JVC office or agency in your country (refer to the JVC Worldwide Service Network at http://www.jvc-victor.co.jp/english/worldmap/index-e.html) about this software, please have the following information ready.
A Turn off the power. (Close the LCD monitor.) B Remove the AC adapter and battery pack from this unit, reattach them, and this unit powers on automatically. 5 If the above do not solve the problem, consult your nearest JVC dealer or JVC service center. Trouble...
“MEDIA SETTINGS” menu. (All data will be deleted.) Appears for 5 seconds after power is turned on if CHECK LENS COVER the lens cover is closed or when it is dark. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
“Siemens Plug”, as shown. • Be sure to follow the guidelines below For this AC plug adapter, consult your nearest to prevent corruption or damage to your JVC dealer. Plug Adapter recorded data. • Do not bend or drop the recording medium, or subject it to strong pressure, jolts or vibrations.
Page 25
... near appliances generating strong magnetic Changes or modifications not approved by or electric fields (speakers, broadcasting JVC could void the user’s authority to operate antennas, etc.). the equipment. This equipment has been ... in places subject to extremely high (over 40°C tested and found to comply with the limits for or 104°F) or extremely low (under 0°C or 32°F)
Digital zoom: Up to 200x Video recording format MP4 standard, Video: MP4 SD, Audio: AAC (2ch Mono) Recording Media SDHC/SDXC card (commercially available) Eye-Fi card (commercially available) Clock battery Rechargeable battery For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
* When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit. The specifications and appearance of this product are subject to changes for further improvement without prior notice. For more information, refer to the Detailed User Guide http://manual.jvc.co.jp/index.html/...
Page 29
GZ-MS150U Guía básica del usuario Estimado cliente: Gracias por haber adquirido este producto JVC. Antes de su uso, lea las precauciones de seguridad y advertencias en p. 2 y p. 24 para garantizar un uso seguro de este producto. Guía detallada del usuario Un “Guía básica del usuario”...
Realice una copia de seguridad de los provocadas por caídas. datos importantes que haya grabado 12. Desenchufe este aparato durante estruendos JVC no se responsabilizará de cualquier de relámpagos o cuando esté fuera de uso por pérdida de datos. Le sugerimos que guarde los largo tiempo.
Para más detalles sobre el funcionamiento de este producto, consulte el “Guía detallada del usuario” en el siguiente sitio web. http://manual.jvc.co.jp/index.html/ También puede acceder al sitio web desde el CD-ROM provisto. (p. 18) Comprobación de los accesorios Cable USB Batería...
Grabación : Muestra el tiempo y carga de batería restantes. Reproducción : Muestra la información de los archivos como por ejemplo la fecha de grabación. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
PRECAUCIÓN Asegúrese de utilizar baterías JVC. Si utiliza alguna otra batería que no sea JVC, no se pueden garantizar la seguridad ni el rendimiento del producto. Tiempo de carga: Aprox. 2 h 10 m (BN-VG108U)/1 h 50 m (BN-VG107U) (utilizando la batería suministrada)
Abra la palanca en la Cierre la palanca traba de la correa la correa Uso de la correa de muñeca Regule la longitud de la correa y ajústela en su muñeca. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Para proteger los datos, no toque las terminales de la tarjeta SD. Eye-Fi fabrica tarjetas de memoria SD con función de LAN inalámbrico. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Page 37
OK. formateado. A Presione MENU. B Seleccione “CONFIG. MEDIOS” y presione OK. C Seleccione “FORMATEAR TARJETA SD” y presione OK. FORMATEAR TARJETA SD Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
LCD, se apaga la unidad. diferencia horaria. Seleccione “SÍ” y presione OK CONFIG. RELOJ/ÁREA cuando se visualice “¡AJUSTE FECHA/HORA!”. ¡AJUSTE FECHA/HORA! Para volver a la pantalla anterior SÍ Presione MENU. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Page 39
“¡AJUSTE FECHA/HORA!” aparece si se enciende esta unidad después de no haberla utilizado durante un periodo prolongado de tiempo. Cargue esta unidad durante más de 24 horas antes de ajustar el reloj. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
40 minutos. (p. 21) Cuando la luz de acceso se ilumina, no extraiga la batería, el adaptador de CA ni la tarjeta SD. Es posible que los datos grabados no puedan leerse. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Disminuye el nivel del volumen UP/< Búsqueda hacia atrás Reproducción fotograma por fotograma en dirección hacia atrás DOWN/> Búsqueda hacia adelante Reproducción fotograma por fotograma en dirección hacia adelante Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Las imágenes se proyectan Ajuste las pantallas del televisor según horizontalmente en el televisor. corresponda. El color de las imágenes es Ajuste las pantallas del televisor según extraño. corresponda. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
* Para obtener información sobre cómo crear un disco utilizando un ordenador, consulte la Guía detallada del usuario. NOTA No es posible conectar y grabar en una grabadora de DVD, unidad externa de Blu-ray o disco duro externo. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
“ON”. Ajuste “DATOS EN PANTALLA” del menú de reproducción en “ON”. Inicie la grabación. Inicie la reproducción en esta unidad y presione el botón de grabación en la grabadora. Una vez que haya finalizado la reproducción, detenga la grabación. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Si su PC no cumple con los requisitos del sistema mencionados, no se puede utilizar el software proporcionado. Para obtener más información, póngase en contacto con el fabricante de su Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Page 46
Aparecerá “Windows Installer” luego de un momento. Si no apareciera, haga doble clic en el icono del CD-ROM en “Mi PC”. Haga clic en “Siguiente”. Siga las instrucciones que aparecen en pantalla. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Page 47
El software proporcionado LoiLoScope MediaBrowser se inicia “Aceptar”. en el PC. D Desconecte el cable USB y cierre Las demás operaciones se deben el monitor LCD. realizar en el PC. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
OBTUR. LENTA AUTOM. SALIDA DE VÍDEO CONFIG. MEDIOS FORMATEAR TARJETA SD Para volver a la pantalla anterior Presione MENU. Para más información sobre los ajustes, consulte la Guía detallada del usuario. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
El uso de este software está autorizado de acuerdo con las condiciones de la licencia de software. JVC (para información sobre esta unidad) Cuando se ponga en contacto con la oficina o agencia JVC más cercana de su país (consulte la Red de servicios internacionales JVC en http://www.jvc-victor.co.jp/english/worldmap/index-e.html) para hacer consultas sobre este software, tenga a mano la siguiente información.
También puede acceder al sitio web desde el CD-ROM provisto. (p. 18) 3 Consulte las preguntas frecuentes de los nuevos productos en la página web de JVC. http://www.jvc.com/ 4 Esta unidad es un dispositivo controlado por microordenador. La descarga electrostática, el ruido exterior y la interferencia (de un televisor, radio, etc.) pueden provocar que la unidad...
Aparece durante 5 segundos después de que se COMPRUEBE LA CUBIERTA encienda la alimentación si la cubierta de la lente DEL OBJETIVO está colocada o cuando está oscuro. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
C73, emplee un enchufe adaptador de CA, Asegúrese de seguir las siguientes pautas denominado “Siemens Plug”, como el mostrado. para evitar corromper o dañar los datos Consulte con su distribuidor JVC más cercano grabados. para obtener este enchufe adaptador. Enchufe adaptador •...
Page 53
Los cambios o modificaciones no aprobados por vibraciones excesivas. JVC podrian anular la autoridad del usuario para cerca de un televisor. utilizar el equipo. Este equipo ha sido examinado cerca de aparatos que generen campos y cumple con los límites de dispositivos...
Formato de grabación de MP4 estándar, Vídeo: MP4 SD, Audio: AAC (2ch Mono) vídeo Grabación de soportes Tarjeta SDHC/SDXC (disponible comercialmente) Tarjeta Eye-Fi (disponible comercialmente) Batería del reloj Batería recargable Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
Page 55
* Si utiliza un adaptador de CA en el extranjero, utilice un enchufe adaptador comercialmente disponible para el país o región en la que se encuentre. Las especificaciones y el aspecto de este producto están sujetos a cambios sin previo aviso. Para obtener más información, consulte la Guía detallada del usuario http://manual.jvc.co.jp/index.html/...
