Step 1 – Assemble the Antenna Riser
Note: If you are not able to get a strong signal with the antenna that comes with the package, other
options are available. Contact Baseline Support at 866-294-5847.

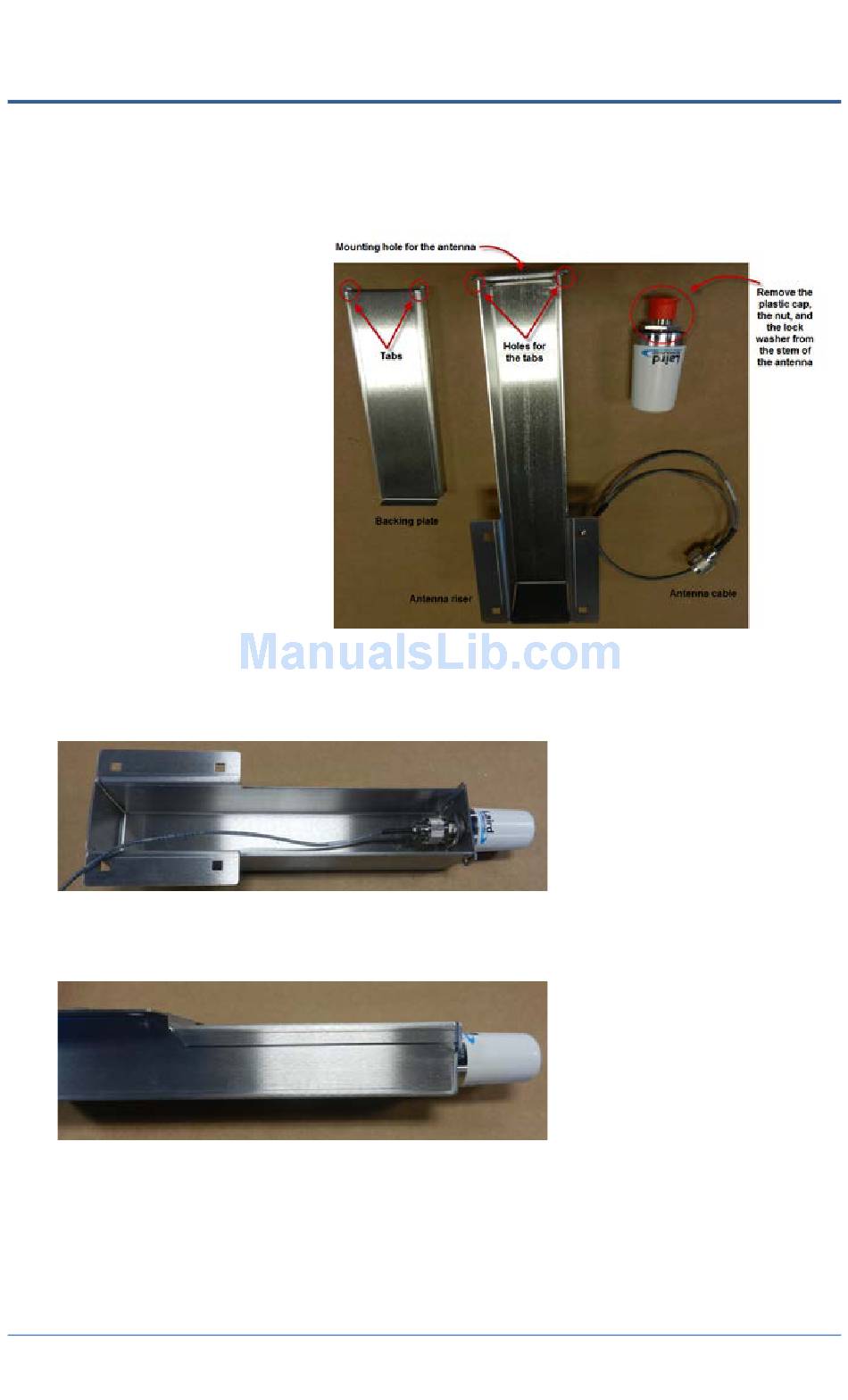

1. Remove the antenna assembly and antenna from its packaging.
2. Remove the plastic cap, the
nut, and the lock washer from
the stem of the antenna.
3. Put the stem of the antenna
through the mounting hole on
the top of the antenna riser so
the antenna is positioned on
top of the riser.
4. Put the lock washer onto the
stem of the antenna, and then
thread the nut onto the stem.
Use a wrench or pliers to
tighten the nut sufficiently to
ensure that the antenna
makes good contact with the
outside of the antenna riser.
5. Thread the coax connector on the antenna cable onto the stem of the antenna and
hand-tighten it. Route the antenna cable towards the bottom of the antenna riser.
6. Insert the tabs on the backing plate into the holes at the top edge of the riser and make sure
the plate is snug along the back of the riser.
