Installation and User Guide for Baseline Cell Modems in Pedestal Enclosures

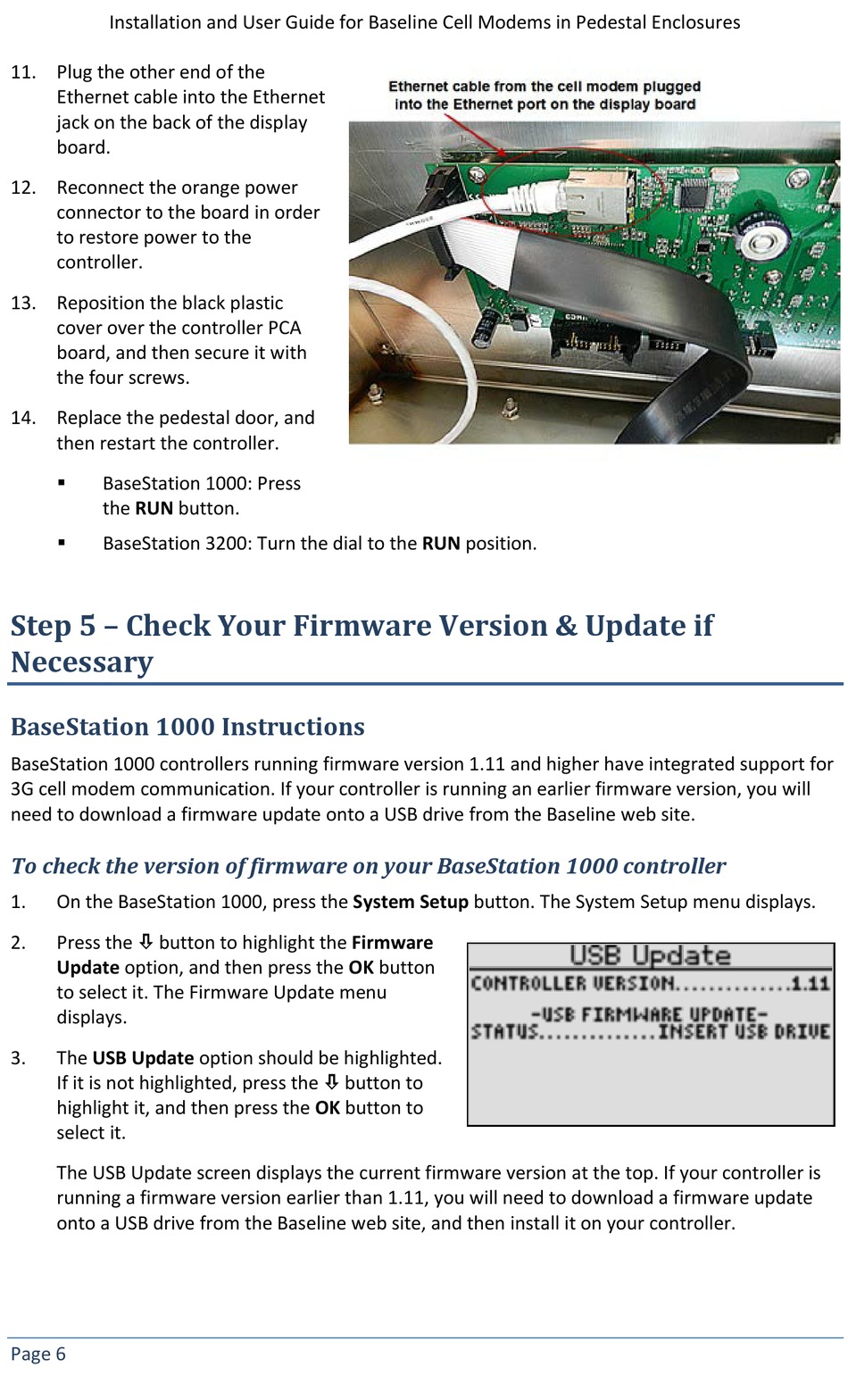

11. Plug the other end of the
Ethernet cable into the Ethernet
jack on the back of the display
board.
12. Reconnect the orange power
connector to the board in order
to restore power to the
controller.
13. Reposition the black plastic
cover over the controller PCA
board, and then secure it with
the four screws.
14. Replace the pedestal door, and
then restart the controller.
BaseStation 1000: Press

the RUN button.
BaseStation 3200: Turn the dial to the RUN position.

Step 5 – Check Your Firmware Version & Update if
Necessary

BaseStation 1000 Instructions

BaseStation 1000 controllers running firmware version 1.11 and higher have integrated support for
3G cell modem communication. If your controller is running an earlier firmware version, you will
need to download a firmware update onto a USB drive from the Baseline web site.

To check the version of firmware on your BaseStation 1000 controller

On the BaseStation 1000, press the System Setup button. The System Setup menu displays.
1.
Press the  button to highlight the Firmware
2.
Update option, and then press the OK button
to select it. The Firmware Update menu
displays.
3. The USB Update option should be highlighted.
If it is not highlighted, press the  button to
highlight it, and then press the OK button to
select it.
The USB Update screen displays the current firmware version at the top. If your controller is
running a firmware version earlier than 1.11, you will need to download a firmware update
onto a USB drive from the Baseline web site, and then install it on your controller.
Page 6
