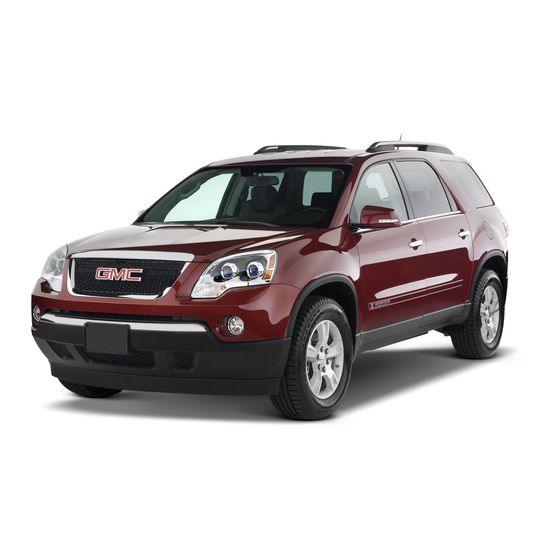

GMC Acadia 2011 Owner's Manual
Hide thumbs Also See for Acadia 2011:
Table of Contents

Advertisement

2011 GMC Acadia/Acadia Denali Owner Manual
In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . 1-4
Vehicle Features . . . . . . . . . . . . . 1-16
Performance and
Maintenance . . . . . . . . . . . . . . . . 1-20
Keys, Doors and Windows . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-2
Doors . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Vehicle Security. . . . . . . . . . . . . . 2-13
Exterior Mirrors . . . . . . . . . . . . . . . 2-16
Interior Mirrors . . . . . . . . . . . . . . . . 2-19
Windows . . . . . . . . . . . . . . . . . . . . . 2-20
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Seats and Restraints . . . . . . . . . 3-1
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats . . . . . . . . . . . . . . . . . . . . 3-3
Rear Seats . . . . . . . . . . . . . . . . . . . 3-11
Safety Belts . . . . . . . . . . . . . . . . . . 3-16
Airbag System . . . . . . . . . . . . . . . . 3-32
Child Restraints . . . . . . . . . . . . . . 3-48
Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Additional Storage Features . . . 4-3
Roof Rack System . . . . . . . . . . . . . 4-4
Instruments and Controls . . . . 5-1
Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . 5-11
Information Displays . . . . . . . . . . 5-25
Vehicle Messages . . . . . . . . . . . . 5-36
Vehicle Personalization . . . . . . . 5-45
Universal Remote System . . . . 5-53
Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Interior Lighting . . . . . . . . . . . . . . . . 6-5
Lighting Features . . . . . . . . . . . . . . 6-6
Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Audio Players . . . . . . . . . . . . . . . . 7-13
Rear Seat Infotainment . . . . . . . 7-38
Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-49
Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Air Vents . . . . . . . . . . . . . . . . . . . . . 8-12
Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-2
Starting and Operating . . . . . . . 9-17
Engine Exhaust . . . . . . . . . . . . . . 9-24
Automatic Transmission . . . . . . 9-25
Drive Systems . . . . . . . . . . . . . . . . 9-28
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-29
Ride Control Systems . . . . . . . . 9-31
Cruise Control . . . . . . . . . . . . . . . . 9-34
Object Detection Systems . . . . 9-36
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-42
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-47
Conversions and Add-Ons . . . 9-56
Vehicle Care . . . . . . . . . . . . . . . . . 10-1
General Information . . . . . . . . . . 10-2
Vehicle Checks . . . . . . . . . . . . . . . 10-4
Headlamp Aiming . . . . . . . . . . . 10-30
Bulb Replacement . . . . . . . . . . 10-30
Electrical System . . . . . . . . . . . . 10-32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Acadia 2011 and is the answer not in the manual?

Questions and answers

Summary of Contents for GMC Acadia 2011

  • Page 1 2011 GMC Acadia/Acadia Denali Owner Manual In Brief ......1-1 Storage ..... . . 4-1 Climate Controls .
  • Page 2: Table Of Contents

    2011 GMC Acadia/Acadia Denali Owner Manual Wheels and Tires ... 10-39 Jump Starting ....10-84 Towing ..... . 10-89 Appearance Care .
  • Page 3 For vehicles first sold in Canada, limited to, GM, the GM logo, GMC, substitute the name General Helm, Incorporated the GMC Truck Emblem, ACADIA, Motors of Canada Limited for GMC P.O.
  • Page 4: Index

    Introduction Using this Manual Symbols WARNING To quickly locate information The vehicle has components and These mean there is something about the vehicle, use the Index labels that use symbols instead of that could hurt you or other in the back of the manual. It is an text.
  • Page 5 Introduction Vehicle Symbol Chart : Fuses Here are some additional symbols : Headlamp High/Low-Beam that may be found on the vehicle Changer and what they mean. For more : LATCH System Child information on the symbol, refer Restraints to the Index. : Malfunction Indicator Lamp : Airbag Readiness Light : Oil Pressure...
  • Page 6 Introduction NOTES...
  • Page 7: In Brief

    In Brief In Brief Safety Belt ....1-10 Performance and Maintenance ® Sensing System for StabiliTrak System ..1-20 Passenger Airbag .
  • Page 8 In Brief Instrument Panel...
  • Page 9 In Brief A. Air Vents on page 8 12. Instrument Panel Illumination Dual Automatic Climate Control Control on page 6 5. System on page 8 4. B. Windshield Wiper/Washer on page 5 5. Data Link Connector (DLC). Q. Console Shift Lever See Malfunction Indicator Lamp (If Equipped).
  • Page 10: Initial Drive Information

    In Brief Initial Drive Remote Keyless Entry Press to lock all doors. (RKE) System Information Lock and unlock feedback can be personalized. The RKE transmitter is used to This section provides a brief remotely lock and unlock the doors To open or close the liftgate, press overview about some of the from up to 60 m (195 feet) away and hold...
  • Page 11: Remote Vehicle Start

    In Brief Remote Vehicle Start Canceling a Remote Start Power Door Locks To cancel a remote start: On vehicles with power door locks, Starting the Vehicle the controls are located on the front Aim the RKE transmitter at With this feature the engine can be doors.
  • Page 12 In Brief Power Liftgate Windows Seat Adjustment On vehicles with a power liftgate, Manual Seats the vehicle must be in P (Park) to 1. Pull the handle under the seat to operate it. unlock the seat. Press and hold the liftgate 2.
  • Page 13: Memory Features

    In Brief Power Seats Raise or lower the entire seat by Memory Features moving the control (A) up or down. See Power Seat Adjustment on page 3 4. To raise or recline the seatback, tilt the top of the control (B) forward or rearward.
  • Page 14: Second Row Seats

    In Brief Storing Memory Positions See Memory Seat and Mirrors Second Row Seats under Power Seat Adjustment on To save into memory: page 3 4 and Vehicle 1. Adjust the driver seat, seatback Personalization (With DIC Buttons) recliner, and both outside on page 5 45 for more information.
  • Page 15: Heated Seats

    In Brief Third Row Seats Heated Seats Head Restraint Adjustment The third row seats can be folded Heated Front Seats forward or removed. Do not drive until the head restraints On vehicles with this feature, the for all occupants are installed and heated seat controls are located adjusted properly.
  • Page 16: Sensing System For Passenger Airbag

    1-10 In Brief Safety Belt Sensing System for conditions. The driver airbag, seat mounted side impact airbags, Passenger Airbag and roof rail airbags are not affected by the passenger sensing system. The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started.
  • Page 17: Mirror Adjustment

    In Brief 1-11 Mirror Adjustment Folding Mirrors Steering Wheel Adjustment To adjust each mirror: Exterior Mirrors 1. Press (C) to fold the mirrors out to the driving position. 2. Press (D) to fold the mirrors in to the folded position. For vehicles with manual folding mirrors, push the mirror toward the vehicle.
  • Page 18 1-12 In Brief Interior Lighting Dome Lamp Override Reading Lamps Press the button near each lamp to Dome Lamps turn them on or off. The dome lamps are located in the For more information, see: overhead console and above the rear seat passengers.
  • Page 19 In Brief 1-13 Windshield Wiper/Washer 1 : Slow wipes. : Turns the automatic light control on or off. 2 : Fast wipes. The windshield wiper/washer lever AUTO : Automatic operation of the is located on the left side of the Windshield Washer headlamps at normal brightness and steering column.
  • Page 20: Climate Controls

    1-14 In Brief Climate Controls A. Fan Control E. REAR (Rear Climate Control) B. Temperature Control Air Recirculation C. Air Delivery Mode Control G. Rear Window Defogger D. Air Conditioning...
  • Page 21 In Brief 1-15 Transmission Electronic Range Select (ERS) Mode ERS mode allows you to choose the top-gear limit of the transmission and the vehicle's speed while driving down hill or towing a trailer. The vehicle has an electronic shift position indicator within the instrument panel cluster.
  • Page 22: Vehicle Features

    1-16 In Brief Vehicle Features : Change the display between the radio station frequency and the Radio(s) time, if equipped. While the ignition is off, press to display the time. For more information about these and other radio features, see Operation on page 7 2.
  • Page 23: Portable Audio Devices

    In Brief 1-17 Each page of favorites can contain Satellite Radio Portable Audio Devices any combination of AM, FM, or XM Vehicles with an XM Satellite This vehicle may have an auxiliary stations. Radio tuner and a valid XM Satellite input located on the radio faceplate See AM-FM Radio on page 7 7.
  • Page 24 1-18 In Brief Steering Wheel Controls Cruise Control : Increases or decreases volume. : Press to reject an incoming call, or to end a call. SRCE : Press to switch between the radio, CD, and for vehicles with, DVD, front auxiliary, and rear auxiliary.
  • Page 25 In Brief 1-19 Storage Compartments Power Outlets : Press to disengage cruise control without erasing the set The vehicle has three 12 volt speed from memory. accessory power outlets which See Cruise Control on page 9 34. can be used to plug in electrical equipment, such as a cell phone Navigation System or MP3 player.
  • Page 26: Maintenance

    1-20 In Brief Sunroof Performance and Tire Pressure Monitor Maintenance The ignition must be in ON/RUN This vehicle may have a Tire or ACC/ACCESSORY to operate Pressure Monitor System (TPMS). the sunroof and power sunshade. ® StabiliTrak System See Retained Accessory Power (RAP) on page 9 19.
  • Page 27 In Brief 1-21 This may be an early indicator that Engine Oil Life System 3. If the vehicle has Driver the tire pressures are getting low Information Center (DIC) The engine oil life system calculates and the tires need to be inflated to buttons: Press and hold the engine oil life based on vehicle use the proper pressure.
  • Page 28: Driving For Better Fuel Economy

    Mexico: 01-800-466-0801 online service reminders, vehicle conditions are appropriate, maintenance tips, online owner use cruise control. As the owner of a new GMC, you manual, special privileges, are automatically enrolled in the Always follow posted speed and more. Roadside Assistance program.
  • Page 29 In Brief 1-23 ® OnStar How OnStar Service Works available on all vehicles. For more information, see the OnStar Owner's : Push this blue button to Guide; visit www.onstar.com (U.S.) connect to a specially trained or www.onstar.ca (Canada); contact OnStar advisor to verify your OnStar at 1-888-4-ONSTAR account information and to (1 888 466 7827) or TTY...
  • Page 30 1-24 In Brief OnStar service can t work unless control may prevent service to you, Your Responsibility your vehicle is in a place where such as hills, tall buildings, tunnels, Increase the volume of the radio if OnStar has an agreement with weather, electrical system design the OnStar advisor cannot be heard.
