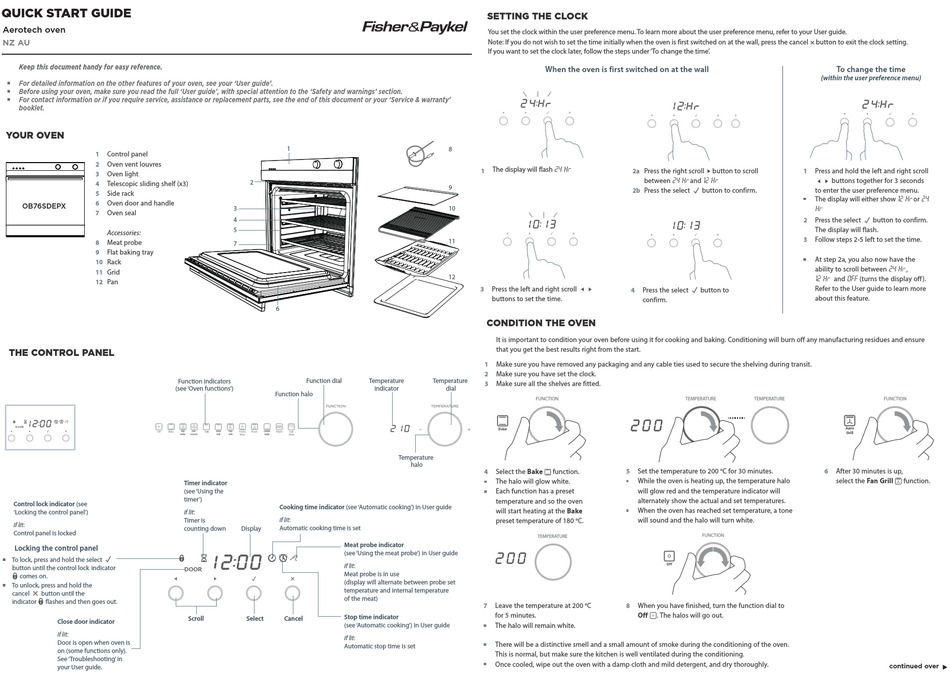

QUICK START GUIDE

Aerotech oven
NZ AU
Keep this document handy for easy reference.
For detailed information on the other features of your oven, see your 'User guide'.
Before using your oven, make sure you read the full 'User guide', with special attention to the 'Safety and warnings' section.
For contact information or if you require service, assistance or replacement parts, see the end of this document or your 'Service & warranty'
booklet.

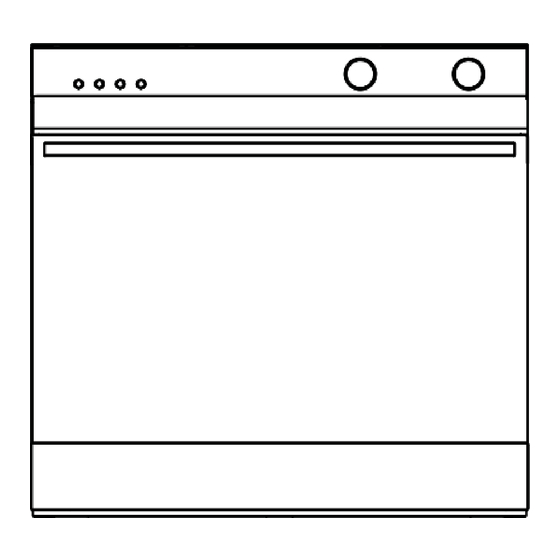

YOUR OVEN

1 Control panel
Oven vent louvres
2
Oven light
3
Telescopic sliding shelf (x3)
4
5 Side rack
Oven door and handle
6
OB76SDEPX
Oven seal
7
Accessories:
8 Meat probe
Flat baking tray
9
Rack
10
11 Grid
12 Pan

THE CONTROL PANEL

Function indicators
(see 'Oven functions')
Fan
Bake
Control lock indicator (see
'Locking the control panel')
if lit:
Control panel is locked
Locking the control panel
To lock, press and hold the select
button until the control lock indicator
comes on.
To unlock, press and hold the
cancel button until the
indicator flashes and then goes out.
Close door indicator
if lit:
Door is open when oven is
on (some functions only).
See 'Troubleshooting' in
your User guide.
1
2
3
4
5
7
6
Function dial
Function halo
Fan Maxi Fan Classic
Forced Grill Grill Bake
Timer indicator
(see 'Using the
timer')
Cooking time indicator (see 'Automatic cooking') in User guide
if lit:
if lit:
Timer is
Automatic cooking time is set
counting down Display
Meat probe indicator
(see 'Using the meat probe') in User guide
if lit:
Meat probe is in use
(display will alternate between probe set
temperature and internal temperature
of the meat)
Stop time indicator
Scroll Select Cancel
(see 'Automatic cooking') in User guide
if lit:
Automatic stop time is set

SETTING THE CLOCK

You set the clock within the user preference menu. To learn more about the user preference menu, refer to your User guide.
Note: If you do not wish to set the time initially when the oven is first switched on at the wall, press the cancel button to exit the clock setting.
If you want to set the clock later, follow the steps under 'To change the time' .
When the oven is first switched on at the wall
8
The display will flash
1
9
10
11
12
3 Press the left and right scroll
buttons to set the time.

CONDITION THE OVEN

It is important to condition your oven before using it for cooking and baking. Conditioning will burn off any manufacturing residues and ensure
that you get the best results right from the start.
1 Make sure you have removed any packaging and any cable ties used to secure the shelving during transit.
Make sure you have set the clock.
2
Temperature Temperature
Make sure all the shelves are fitted.
3
indicator dial
F U N C T
Temperature
halo
4 Select the Bake
The halo will glow white.
Each function has a preset
temperature and so the oven
will start heating at the Bake
preset temperature of 180
E T M P R E
Leave the temperature at 200
7
for 5 minutes.
The halo will remain white.
There will be a distinctive smell and a small amount of smoke during the conditioning of the oven.
This is normal, but make sure the kitchen is well ventilated during the conditioning.
Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
24 H r.
Press the right scroll button to scroll
2a
24 H r 12 H r
between and
2b Press the select button to confirm.
4 Press the select button to
confirm.
O I N E T M P R E T A U E R
Set the temperature to 200 o C for 30 minutes.
function. 5
While the oven is heating up, the temperature halo
will glow red and the temperature indicator will
alternately show the actual and set temperatures.
When the oven has reached set temperature, a tone
o C. will sound and the halo will turn white.
F U N C T O I N
T A U E R
o C When you have finished, turn the function dial to
8
Off . The halos will go out.
To change the time
(within the user preference menu)
Press and hold the left and right scroll
1
buttons together for 3 seconds
to enter the user preference menu.
12 H r 24
The display will either show or
H r
Press the select button to confirm.
2
The display will flash.
3 Follow steps 2-5 left to set the time.
At step 2a, you also now have the
24 H r
ability to scroll between ,
12 H r
OFF
and (turns the display off ).
Refer to the User guide to learn more
about this feature.
E T M P R E T A U E R F U N C T O I N
Aero
Grill
After 30 minutes is up,
6
select the Fan Grill function.
continued over
