Designated Hazardous Location WayCool
Certified for Class I, Division 2, Group D Class II, Groups F & G & Class III Hazardous (Classified) Locations
Class I:
Hazardous location is one in which flammable gases or vapors may be present in the air in sufficient quantities to be explosive or
ignitable.
Class II:
Are those areas made hazardous by the presence of combustible dust.
Class III:
Are areas where there are easily-ignitable fibers or flyings present, due to the types of materials being handled, stored, or processed.
Division 2:
Not normally present in an explosive concentration (but may accidentally exist).
Testing/Certifications Standards: Electrical Equipment for Use in Class I and Class II, Division 2 and Class III Hazardous (Classified) Locations.
[UL 1604, Third Edition, October 6, 1995, Including: Bulletins dated 3/22/95 & 5/17/96]
Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations [CSA C22.2 No. 213-M1987]
Electrical Fans [UL-507, Ninth Edition, 9/24/01 and Fans and Ventilators [CSA C22.2 No. 113-M1989. Sixth Edition]
Portable Evaporative Cooling Fans
Model WC-1HP-DHL
USER'S MANUAL
ETL certified for United States
and Canada
®
Advertisement
Table of Contents
Related Manuals for Schaefer Waycool WC-1HP-DHL
Summary of Contents for Schaefer Waycool WC-1HP-DHL

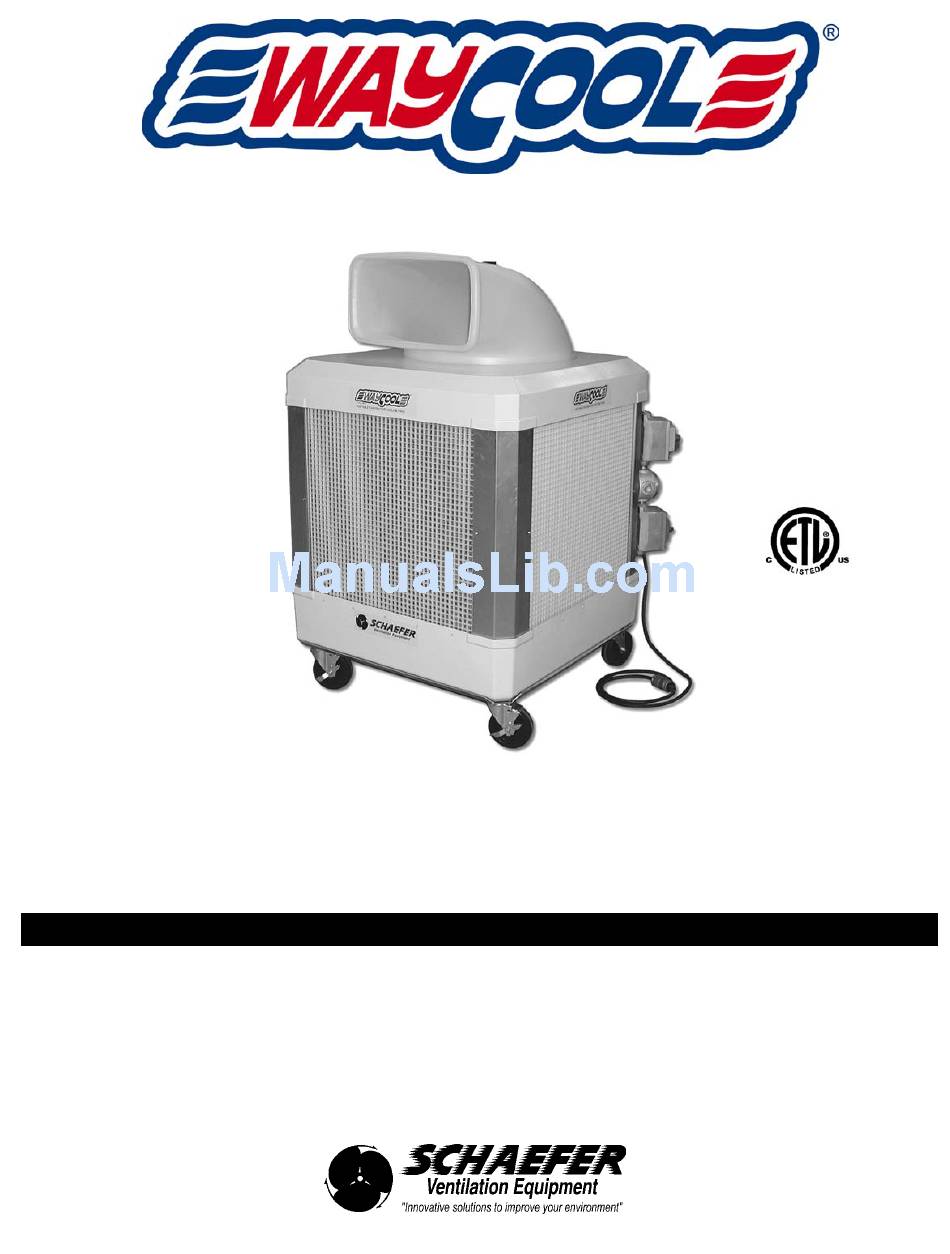

- Page 1 ETL certified for United States and Canada ® Designated Hazardous Location WayCool Model WC-1HP-DHL USER’S MANUAL Certified for Class I, Division 2, Group D Class II, Groups F & G & Class III Hazardous (Classified) Locations Class I: Hazardous location is one in which flammable gases or vapors may be present in the air in sufficient quantities to be explosive or ignitable.
-
Page 2: Table Of Contents
How evaporative cooling works?-------------------------------------------------------------------------- 4 ABOUT THIS MANUAL------------------------------------------------------------------------------------------------ 5 SAFETY INFORMATION---------------------------------------------------------------------------------------------- 6 SAFETY RECOMMENDATIONS----------------------------------------------------------------------------------- 8 WC-1HP-DHL SPECIFICATIONS---------------------------------------------------------------------------------- 10 WC-1HP-DHL UNIT DESCRIPTION------------------------------------------------------------------------------- 11 WATER SUPPLY SYSTEM------------------------------------------------------------------------------------------ 11 COOLING PAD ASSEMBLY----------------------------------------------------------------------------------------- 14 BLOWER AND DUCTWORK----------------------------------------------------------------------------------------- 15 CONTROL----------------------------------------------------------------------------------------------------------------- 16 OPERATION AND MAINTENANCE-------------------------------------------------------------------------------- 17... -
Page 3: Introduction
INTRODUCTION WHY USE EVAPORATIVE COOLERS IN YOUR WORKPLACE? ® • The WayCool evaporative cooler requires little space, has a low initial cost, is inexpensive and simple to operate and requires minimal scheduled maintenance. • Due to the design and construction of the cooling pads, cooling efficiency is normally maintained near optimum throughout the life of the pads, which can easily last for about two seasons with proper care. -
Page 4: How Evaporative Cooling Works
INTRODUCTION HOW EVAPORATIVE COOLING WORKS Figure WC-1HP-DHL.02 - Evaporative Cooling Principle Evaporative cooling is the same process your body uses to cool itself. When you perspire, and air moves across your skin, a portion of the perspiration (water) evaporates. Evaporation requires heat to change liquid water-to-water vapor and this heat is taken from your skin, producing the cooling effect. -
Page 5: About This Manual
ABOUT THIS MANUAL The intent of this manual is to help you in two ways: to provide you with step-by-step instructions for quick and easy assembly of your product and to serve as a reference for simple maintenance and questions regarding your product. -
Page 6: Safety Information
SAFETY INFORMATION Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. Replace missing or damaged safety decals immediately. Using the equipment for purposes other than specified in this manual may cause personal injury and/or damage to the equipment. -
Page 7: Follow Safety Instructions
WARNING! This unit can ONLY be use in the Hazardous Locations listed on this label. The unit is certified for Not-Normally Hazardous Locations: Figure WC-1HP-DHL.03 - Decals Class1, Division 2, Group D Class 2, Division 2, Groups F & G Class 3 Locations As described by the “National Fire Protection Association”... -
Page 8: Safety Recommendations
SAFETY RECOMMENDATIONS READ AND SAVE THESE INSTRUCTIONS! • This is an electric device with moving components. There is the possibility of fire, electric shock, or injury to persons. Ensure all the safety recommendations are adhered to in order to minimize this risk. •... -
Page 9: Wc-1Hp-Dhl Specifications
Optional Water Supply - Standard ¾" hose connection (garden hose size) • Housing - High impact ABS plastic w/UV protection • Evaporation Media - Chemically treated cellulose paper Actual WC-1HP-DHL WayCool ® Varies slightly from unit shown here. Figure WC-1HP-DHL-04.Waycool Evaporative Cooler Overview... -
Page 10: Wc-1Hp-Dhl Unit Description
WC-1HP-DHL UNIT DESCRIPTION ® The WayCool evaporative cooler is a completely self-contained, portable unit capable of delivering 40 MPH velocity of air with a temperature drop of up to 20°. The unit is composed of: • Level-controlled water supply system •... -
Page 11: Water Supply System
The bottom can be supplied continuously with an ordinary garden hose by attaching the supplied hose adapter (see Figure WC-1HP-DHL.08) to the fill connection, or it can be filled manually. With a continuous water supply connected, the float valve in the bottom (like the one in your toilet tank) rises and falls with the water level. - Page 12 The pump can be easily removed and replaced with the services of a qualified electrician. Plastic Screen Pump Impeller Figure WC-1HP-DHL.06 – Pump A small plastic screen covers the pump inlet to prevent foreign matter from entering and damaging the pump impeller. The screen snaps in place and can be easily removed for inspection or cleaning.
- Page 13 WATER SUPPLY SYSTEM A clear vinyl hose connects the pump to the filter. From the filter, a "T" connector supplies two lines that run along the bottom and up opposite frame corners to supply the PVC pipe with water. Each vinyl hose connects to two PVC pipes, which run horizontally along the top of the frame above the cooling pads.
-
Page 14: Cooling Pad Assembly
COOLING PAD ASSEMBLY The cooling pads are critical for proper, efficient cooler operation. They are made of laminated cellulose (paper) fibers and arranged to give a large surface area for evaporation and to provide a rigid structure. The shape of the cells allows high velocity airflow through the pad at a minimum pressure drop. At the same time, the air passages between the cells force the incoming air to impinge on the wet cell surfaces and maximize evaporation. -
Page 15: Blower And Ductwork
Note: The WC-1HP-DHL unit requires 120 volts and 20 amps of power. This is normally available on most circuits. However, if you are running a number of other items on the same circuit, you may trip the breaker. -
Page 16: Control
ON/OFF – single speed Pump Selector Switch Figure WC-1HP-DHL.08 - WayCool Control Switch Both the manual Motor starter switch and the Pump switch function as ON/OFF only. The unit can run with pump only ON, fan (motor) only ON or both ON. -
Page 17: Operation And Maintenance
OPERATION & MAINTENANCE UNIT PLACEMENT AND OTHER CONSIDERATIONS Figure WC-1HP-DHL.09 Typical WayCool® Unit Arrangement ® The WayCool unit(s) should be placed at one end of the building and an appropriate exhaust fan should be at the opposite end to pull the cool air from the WayCool® unit and discharge the warm air out of the building. -
Page 18: Unpacking And Initial Setup
® WayCool WC-1HP-DHL is fully assembled and ready for service except for thoroughly cleaning manufacturing dust from the cooling pads before running it for the first time. CAUTION: Be careful when you move the unit while it is in the shipping container and when moving it around with the container removed. -
Page 19: Regular Cleaning
OPERATION & MAINTENANCE 9. Ensure the frame legs are straight and in alignment, and that the blower is sitting level and in proper position. Maintenance Note: If you notice any damage to your unit, immediately contact the dealer where you purchased it. 10. -
Page 20: Normal Startup
OPERATION & MAINTENANCE NORMAL STARTUP 1. Place the unit in the position where it will be run. Do not attempt to lift or move the unit once it is filled. Damage to the unit or a large spill may occur. Note: When you decide where to place the unit, make sure there are no obstructions in the way that will disrupt or block the airflow. -
Page 21: Troubleshooting
Inspect and clean the pump discharge filter. c. Inspect and clean the pump intake filter. d. Ensure the impeller on the inside of the pump turns freely – see figure WC-1HP-DHL.05 – Pump. e. Filter may have an air lock. Remove clear filter cap and screen. Turn on pump until water flows through. -
Page 22: Splattering Out Front
TROUBLESHOOTING SPLATTERING Out Front See “ Line Clogs or Obstructions”. LEAKING Out Bottom Check for cracks on the bottom. If a crack is found, a new bottom will have to be ordered. See “Ordering Replacement Parts – page 24. Troubleshooting... -
Page 23: General
Thank you The employees of Schaefer Ventilation Equipment would like to thank you for your recent Schaefer purchase. If a problem should arise, your Schaefer dealer can supply the necessary information to help you. Dealer & Product Information... -
Page 24: Warranty
WARRANTY THE SCHAEFER WARRANTY Schaefer Ventilation Equipment, LLC, warrants to the original purchaser that our products which prove to be defective in material or workmanship within one year (unless otherwise specified) from date of purchase will be repaired or replaced at the option of Schaefer Ventilation Equipment, LLC, F.O.B. - Page 25 Schaefer Ventilation Equipment M-WC1HPDHL 10-03...
