Schaefer PFM126P13 Operator's Manual

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSES
1. Improper wiring
2. Fan control set above room temperature
3. Blown fuse or tripped breaker
Fan not operating
4. Fan blade contacting fan
5. Fan control defective
6. Motor defective
1. Shutter jammed
Insufficient airflow 2. Guard, shutter, fan blade dirty
3. Fan blade facing wrong direction
1. Fan blade contacting fan panel
Excessive fan noise
2. Motor bearing defective
1. Motor loose in mount
Excessive vibration 2. Fan blade damaged
3. Motor shaft bent
1. Thermostat set incorrectly
Fan does not turn off
2. Control set for continuous operation

WARRANTY

Pinnacle Climate Technologies Limited Warranty Policy
Pinnacle Climate Technologies (PCT) provides the following limited warranty from the date of invoice to the initial purchaser of our products or to its
customer with a dated proof of purchase:
Two-year coverage (unless otherwise indicated below) applies to all products, components and assemblies provided by PCT that prove to be defective in
material or workmanship. Any such defective product will be repaired or replaced at PCT's option, with the defective product or component returned-upon
approval, to PCT, F.O.B Sauk Rapids, Minnesota. This warranty does not cover: failure, damage or malfunction as a result of: Improper installation or installation
not in accordance with installation instructions. Operating conditions that vary from PCT's operating instructions. Misuse, abuse, negligence, alteration, or
accident. Transporting the product. Improper operation or lack of appropriate or regular maintenance of the product. Loss of time, inconvenience, loss of use of
the product or other consequential or incidental damages. Parts that need replacement due to normal wear and tear. Superficial or cosmetic rust or corrosion.
Any product whose name plate has been removed.
Full warranty statement may be printed or downloaded from www.schaeferventilation.com
All information, illustrations and specifications provided here are based on the latest product
information available at the time of printing. Product specifications subject to change.
www.schaeferventilation.com • 800-779-3267
All information, illustrations and specifications provided here are based on the
latest product information available at the time of printing. Product specifications subject to change.
CORRECTIVE ACTION
1. Ensure wiring is done correctly
2. Set to a lower temperature
3. Replace fuse or reset breaker
4. Realign fan blade in fan housing
5. Repair or replace control
6. Repair or replace motor
1. Clean shutter and fan housing
2. Clean guard, shutter and fan blade
3. Orient fan blade correctly
1. Realign fan blade in fan housing
2. Repair or replace motor
1. Tighten fasteners
2. Replace fan blade
3. Repair or replace motor
1. Set to the desired temperature
2. Set fan control correctly
©2020 Schaefer ® All rights reserved.

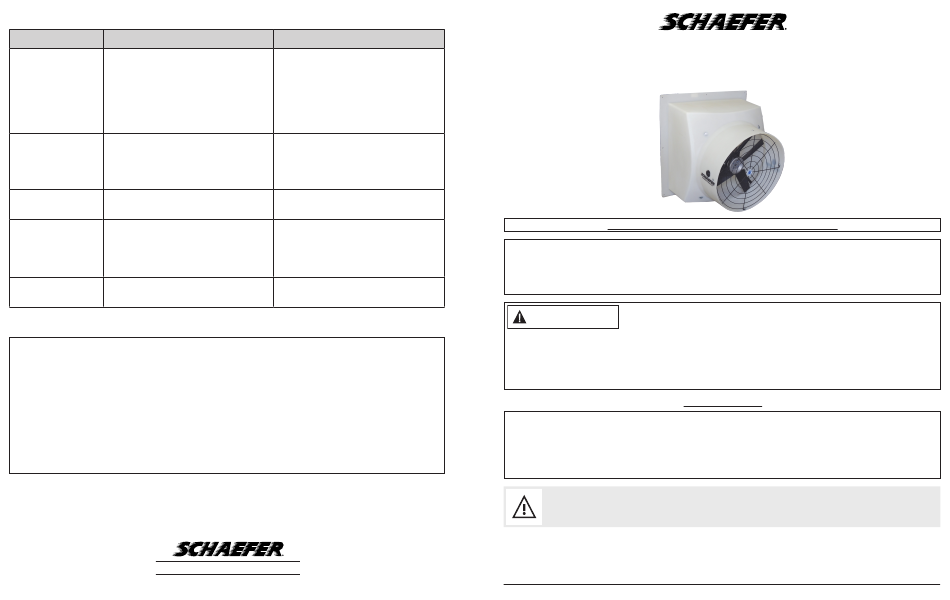

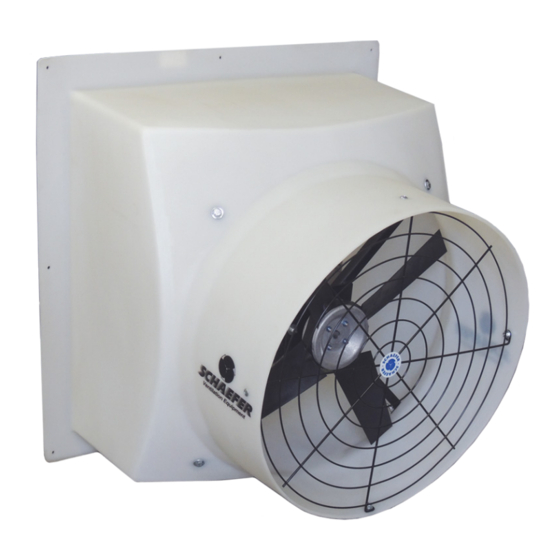

Polyethylene Flushmount Exhaust
Fan Series Operators Manual
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before attempting to assemble, install, operate or service the product described. Failure to
comply with instructions could result in personal injury and/or property damage.
Using this product for any other purpose than it was intended, or not within the operating specifications in this manual will
void the warranty and may cause damage to the fan or serious injury to personnel.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK:
• Do not expose fan to water or rain.
• The power source must conform to the electrical requirements of the fan. Consult your local electrician before wiring and follow all national,
state, and local electrical codes.
• Disconnect all power before performing maintenance.
• DO NOT use a variable speed control device, unless your fan has been equipped with a VFD-compatible motor.
• This fan is intended for general use only. Do not use near hazardous or explosive materials or vapors.
• Never insert fingers or any other objects into the fan when in operation.
• Use of an OSHA complying guard if within seven feet of floor is recommended.
• Use of a guard, shutter or hardware cloth if above seven feet of floor is recommended.
• Carefully read all safety messages in this manual and on your equipment safety decals. Follow recommended precautions and safe
operating practices.
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to
cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
©2020 Schaefer®. All Rights Reserved.
M-PFMEF
GENERAL SAFETY
Polyethylene Flushmount Exhaust Fan Operators Manual
SCFC-411
