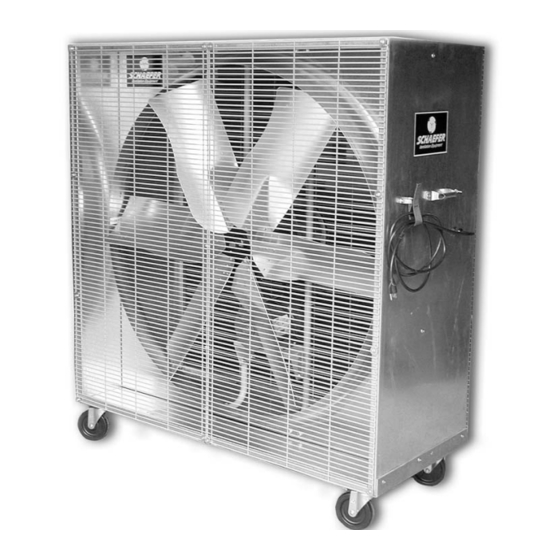

- Page 1 Mobile Box Fan OPERATOR'S MANUAL MOB36612-2 / MOB42634-2 / MOB4861-2 800-779-3267 sales@schaeferfan.com • www.schaeferfan.com ©2010 Schaefer Ventilation Equipment...
-
Page 2: Table Of Contents
Table of Contents About this Manual ......2 Safety Recommendations ....2 Safety Information . -
Page 3: Safety Information
Safety Information Follow Safety Instructions Carefully read all safety messages in this manual and the safety decals on your equipment. Follow all recommended precautions and safe operating practices. Keep safety decals in good condition. Replace missing or damaged safety decals. Decal Description This diagram shows the proper location of the safety decals as shipped from the factory. -
Page 4: Setup And Operation
Grease zerks of run time. • Do not overgrease. Annually Check belt tension (MOB36612-2 and MOB4861-2). • Correct adjustment is 3/4" deflection at 10 lbs of force. • Belt tension is adjusted automatically by the assembly. Over time, the belt will become worn and the tensioner will no longer be able to pull the belt tight enough. -
Page 5: Troubleshooting
Troubleshooting Symptom Possible causes Corrective action Fan not operating 1. Ensure you have power 1. Plug fan in 2. Ensure wiring is done properly 2. Ensure wiring is correct 3. Blown fuse or tripped breaker 3. Replace fuse or reset breaker 4. -
Page 6: Parts List
Parts List MOB36612-2 36" Mobile Box Fan, MOB4861-2 48" Mobile Box Fan, 6-wing, 1/2 HP, 2-speed 6-wing, 1 HP, 2-speed ITEM NUMBER DESCRIPTION ITEM NUMBER DESCRIPTION PBBA205-16 Pillow Block Bearing PBBA205-16 Pillow Block Bearing FS1X15.5 Fan Shaft, 1"x15 " FS1X15.5 Fan Shaft, 1"x15... -
Page 7: Warranty
Schaefer Ventilation Equipment, LLC Schaefer Limited Warranty Policy Schaefer Ventilation Equipment, LLC (SVE) provides the following limited warranty from the date of purchase to the original purchaser of our products: Two-year coverage (unless otherwise indicated below) applies to all products, components and assemblies provided by SVE that prove to be defective in material or workmanship. - Page 8 800-779-3267 www.schaeferfan.com ©2010 Schaefer Ventilation Equipment 1-11-10/M-MOB...
