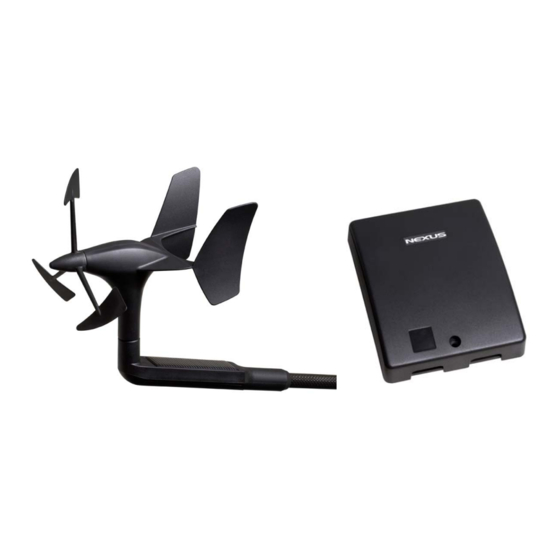

- Page 1 NX Wireless Wind transducer set Installation and Operation Manual English...
- Page 2 NX Wind transducer set English...
- Page 3 English NX Wind transducer set Edition: April 2007...
-
Page 4: Table Of Contents
NX Wind transducer set English Mounting instruction Tri-transducer Installation ......................4 Location......................4 Part specification....................4 Mounting in the mast head ................4 Mounting step by step ..................6 Pairing the Transducer to the WSI-box ............7 Specifications ....................10 Dimensions: .................... -
Page 5: Installation
In addition, a compass or GPS antenna may be used to compute true wind direction relative North This transducer set can be used in any Nexus Network system. It may even be installed in a Nexus or NX2 system substituting the standard wired transducer. - Page 6 NX Wind transducer set English...
-
Page 7: Mounting Step By Step
English NX Wind transducer set Mounting step by step 1. Mark the mounting holes using 2. Drill the three mounting holes the bracket as an template using a 3,2mm drill 3. Mount the bracket with the three 4. Insert the transducer into the supplied screws bracket from front to back 5. -
Page 8: Pairing The Transducer To The Wsi-Box
“pin”. If the batter lid is open, you may see the LED. The built in LED will flash 2 times then lit for 2s, before it is turned off. Your Nexus system is now ready for use. - Page 9 If you have been using the Wireless wind for several seasons, you may need to change the rechargeable cells. Use Nexus original NiMh cells. IMPORTANT! Do not change the rechargeable cell in strong light! If needed, cover the solar cell with your hand while changing cells! Open the battery lid and remove the old cell from the connector, install the new cells.
- Page 10 Battery Nexus Network Note If the WSI-box is connected to a Nexus Network, the WSI-box will be powered via that cable and there is no need to connect the red and black power cables! Maintenance! If you have been using the Wireless wind for several seasons, you may need to change the rechargeable cells.
-
Page 11: Specifications
English NX Wind transducer set 10 Specifications Power consumption 0,24 W Current consumption: 20mA @12V Wind speed range 0.9-90 knots, 0.5-50 m/s Angle Accuracy Better than ± 2° Speed Accuracy ± 5% Temperature range Operating -5ºC to +70ºC Storage -20ºC to +80ºC Weight 260 g. -
Page 12: Waranty
NX Wind transducer set English 11 Waranty... - Page 13 English NX Wind transducer set...
- Page 14 NX Wind transducer set English...
- Page 15 English NX Wind transducer set Copyright ©: Nexus Marine AB Kuskvägen 4, 191 62 Sollentuna, Sweden Tel: +46 -(0) 8 – 506 939 00. Fax: +46 -(0) 8 -506 939 01 www.nexusmarine.se...
