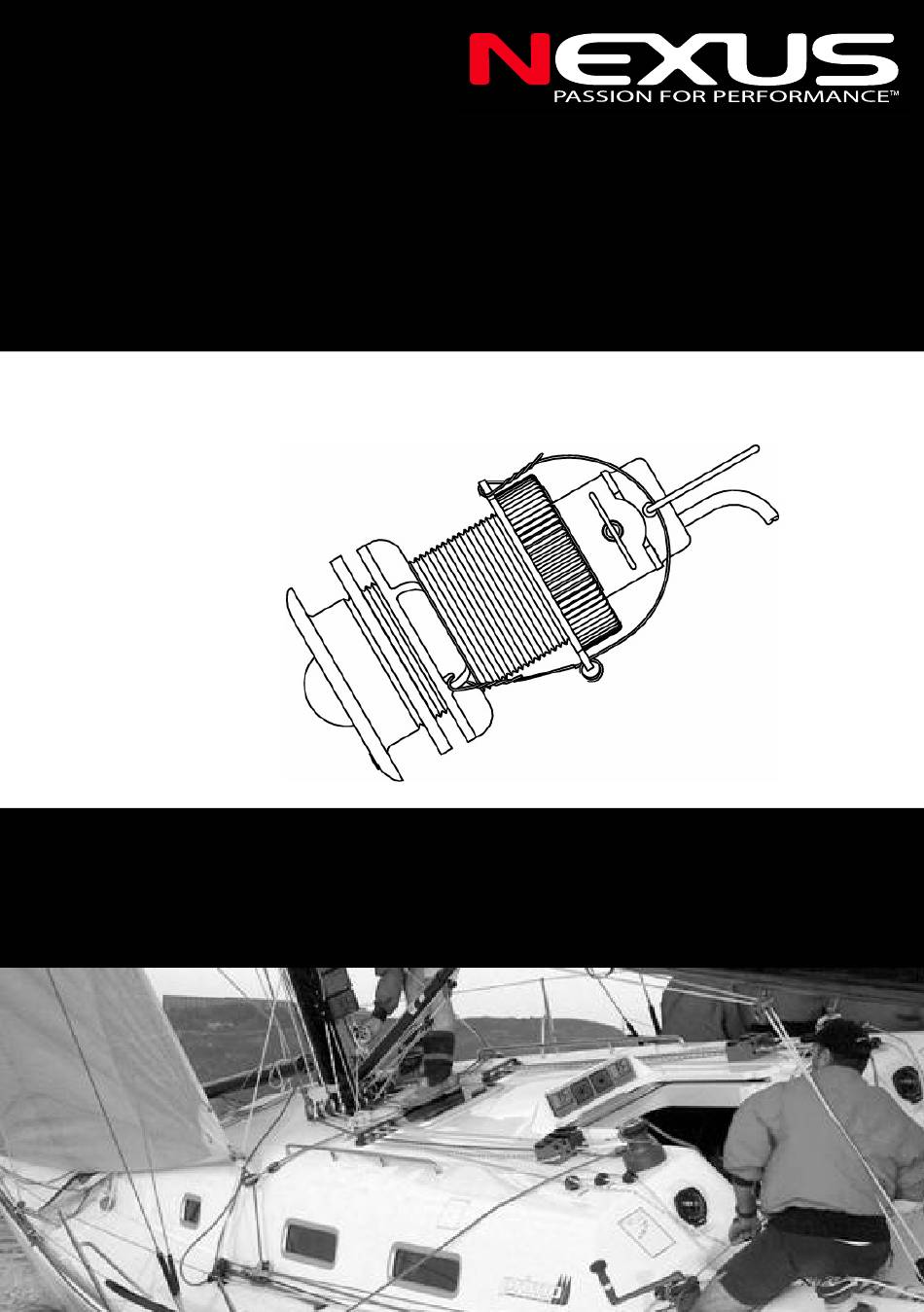

- Page 1 Depth TH 52 - Transducer - Installation and Operation Manual Installation and Operation Manual English English Download from Www.Somanuals.com. All Manuals Search And Download.
- Page 2 DEPTH TH52 Download from Www.Somanuals.com. All Manuals Search And Download.
- Page 3 DEPTH TH52 Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 4: Table Of Contents
DEPTH TH52 CONTENTS: Applications................4 Tools and Materials Needed ............4 Mounting Location ..............5 Acoustic Noise ....................5 Placement...................... 5 Boat Types..................... 6 Installation ..................7 Hole Drilling ....................7 Bedding......................8 Installing..................8 Checking for Leaks ..................9 Blanking Plug....................9 Installation in a Cored Fiberglass Hull............10 CONNECTION TO INSTRUMENT/CONTACTS ......11 Calibration.................11 Maintenance................11... -
Page 5: Installation Instructions
DEPTH TH52 INSTALLATION INSTRUCTIONS Thru-Hull Depth Transducer Low Profile, Flush, and Retractable Models IMPORTANT: Please read these instructions completely before proceeding with the installation. These directions supersede any other instructions in your instrument manual if they differ. WARNING: NEVER USE SOLVENTS! Certain cleaners, fuel, paints, sealants, and other products may contain strong solvents, such as acetone, which attack many plastics greatly reducing their strength. -
Page 6: Mounting Location
DEPTH TH52 Mounting Location Acoustic Noise Acoustic noise is always present and these sound waves can interfere with the operation of the transducer. Background noise from sources such as: waves, fish, and other vessels cannot be controlled. However, carefully selecting the transducer mounting location can minimize the affect of vessel generated noise from the propeller(s) and shaft(s), other machinery, and other echosounders. -
Page 7: Boat Types
DEPTH TH52 Boat Types (see Figure 1) • Displacement hull powerboat—Locate 1/3 aft LWL and 150–300mm (6–12") off the centerline on the side of the hull where the propeller is moving downward. • Planing hull powerboat—Mount well aft, on or near the centerline, and well inboard of the first set of lifting strakes to insure that the transducer is in contact with the water at high speeds. -
Page 8: Installation
DEPTH TH52 Installation Cored fiberglass hull—Follow separate instructions on page 4. Hole Drilling Warning: Always wear safety goggles and a dust mask. Drill a 3 mm or 1/8" pilot hole from inside the hull. If there is a rib, strut, or other hull irregularity near the selected mounting location, drill from the outside. -
Page 9: Bedding
DEPTH TH52 Bedding Caution: Never pull, carry, or hold the transducer by its cable; this may sever internal connections. Remove the hull nut and any washer (see Figure 2). Also remove the cap nut and the transducer insert. Apply a 2mm (1/16") thick layer of sealant around the lip of the housing that contacts the hull and up the sidewall of the housing, 6 mm (1/4") higher than the combined thickness of the hull, washer(s), and the hull nut. -
Page 10: Checking For Leaks
DEPTH TH52 tighten only. Do not over tighten. Warning: Always attach the safety wire to prevent the insert from backing out in the unlikely event that the cap nut fails or is screwed on incorrectly. Attach the safety wire. Attach the safety wire to one eye in the hull nut. Lead the wire in a counterclockwise direction and thread it through one eye in the cap nut, the pull ring, the second eye in the cap nut, and the second eye in the hull nut. -
Page 11: Installation In A Cored Fiberglass Hull
DEPTH TH52 Installation in a Cored Fiberglass Hull The core (wood or foam) must be cut and sealed carefully. The core must be protected from water seepage, and the hull must be reinforced to prevent it from crushing under the hull nut allowing the housing to become loose. Warning: Always wear safety goggles and a dust mask. -
Page 12: Connection To Instrument/Contacts
DEPTH TH52 CONNECTION TO INSTRUMENT/CONTACTS The depth transducer connects to the FI-30 Server or directly. The transducer cable is clearly marked with No 2 and the colours will correspond to input screw terminal on the Server. IMPORTANT! DO NOT CUT OR EXTEND THE 8 M TRANSDUCER CABLE! Calibration Calibration is carried out in the Multi Control instrument (see manual). -
Page 13: Technical Data
DEPTH TH52 TECHNICAL DATA Dimensions Transducer: 51 x 86 mm (1 5/8” x 3 3/8”) Transducer cable: 8 m (9.9 ft + 26.2 ft) Power supply: 12V DC (10-16V) Power consumption: 0.2 W Depth range: 0.8 - 150 m (3 - 450 ft) at speed up to 30 knots. - Page 14 DEPTH TH52 Download from Www.Somanuals.com. All Manuals Search And Download.
