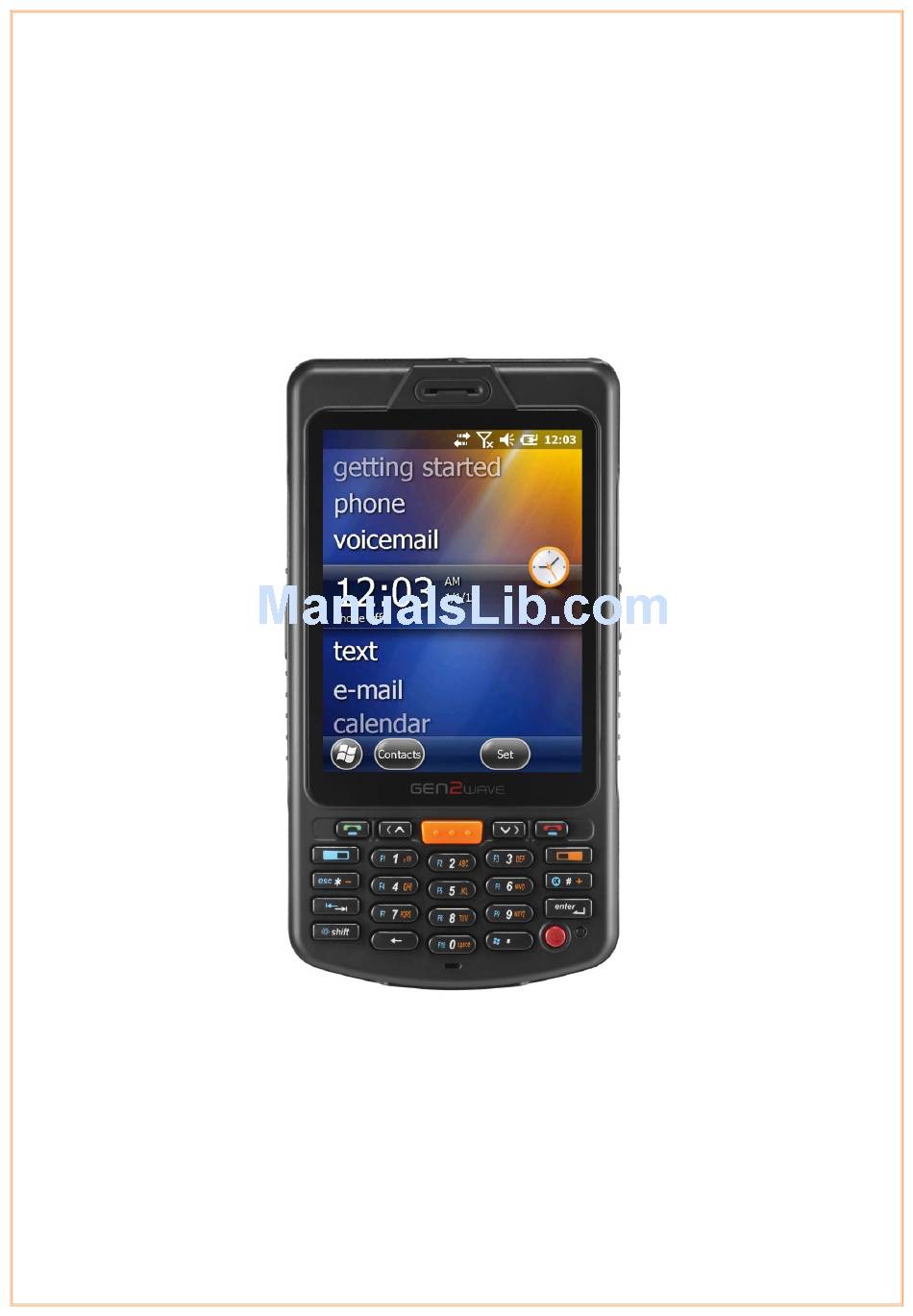

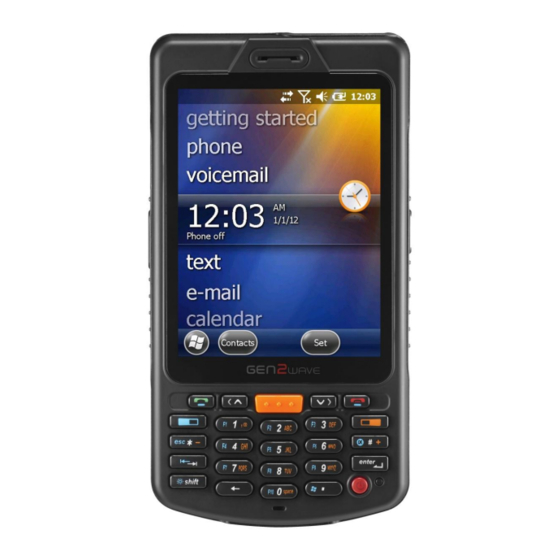

Page 1: Rp1200 User"S Full Manual
RP1200 User‟s Manual RP1200 User‟s Full Manual Rugged & Professional RP1200 Integrator Manual Apr 1, 2013... - Page 2 Gen2wave. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Gen2wave.
-
Page 3: Revision History
RP1200 User‟s Manual Revision History Changes to the original manual are listed below: Version Date Description Rev 1.0 13/02/20 Initial release Rev 1.1 13/04/01 Image Changing Rev 1.2 13/05/10 Button Image Changing... -
Page 4: Table Of Contents
RP1200 User‟s Manual Table of Contents RP1200 User‟s Full Manual....................................1 Revision History ........................................3 About This Guide ........................................7 Introduction........................................7 Software Versions ......................................8 RP1200 Version ....................................8 AKU Version ......................................8 System Version ....................................8 Service Information ....................................9 Getting Started ........................................ - Page 5 Reading Bar Codes ....................................47 Using the Color Camera ..................................48 Using a microSD Card..................................... 50 Enabling the Integrated GPS on the RP1200 ..........................50 Using the A-GPS on the RP1200 ............................... 50 Button Assign Function ..................................53 RP1200 Numeric Keypad ....................................55 Numeric Keypad Input Modes................................
- Page 6 RP1200 User‟s Manual Installing Applications ...................................... 66 Installing Applications on the RP1200 ............................66 Installing Applications Using Microsoft ActiveSync ......................... 67 Installing Applications Using a microSD Card ..........................68...
-
Page 7: About This Guide
RP1200 User‟s Manual About This Guide Introduction This Integrator Guide provides information about setting up and configuring the RP1200 and its accessories. NOTE. Screens and windows pictured in this guide are samples and can differ from actual screens. -
Page 8: Software Versions
RP1200 User‟s Manual Software Versions This guide covers various software configurations and references are made to operating system or software versions for: Adaptation Kit Update (AKU) version OEM version Phone version BT version Fusion version. ... -
Page 9: Service Information
If you have a problem with your equipment, contact Gen2wave support for your region. Enterprise Mobility Contact Information is available at: http://www.gen2wave.com/ Manufacturing label Gen2wave responds to calls by e-mail, telephone or fax within the time limits set forth in support agreements. -
Page 10: Getting Started
RP1200 User‟s Manual Getting Started Introduction This chapter provides information about the RP1200, accessories, charging, and resetting the RP1200. RP1200 Specifications Performance Characteristics Battery(4000mA) Performance Samsung S5PV210 1GHz Standby time 220 hours Windows®Embeded Handheld 6.5.3 Talk time 10 hours Outdoor WAN+GPS, 15min/hour voice... - Page 11 RP1200 User‟s Manual Resolution: 5.0 megapixel 52° Illumination: User controllable flash Light Source Visible Laser Diode 650 nm Lens: Auto Focus Scan Rate 100 scan lines per second 2D Imager Engine (5100SR-110R) Sweep Angle 54° minimum Focal Distance 7 inches (17.8cm) from lens plate...
-
Page 12: Unpacking The Rp1200
RP1200 User‟s Manual Unpacking the RP1200 Carefully remove all protective material from the RP1200 and save the shipping container for later storage and shipping. Verify that you received the following equipment: RP1200 Lithium-ion battery stylus Quick Start Guide ... -
Page 13: Getting Started
RP1200 User‟s Manual Getting Started To start using the RP1200 for the first time: Install a microSD card (optional) Install the SIM card Install the main battery. Charge the RP1200. Power on the RP1200. Installing a microSD Card The microSD card slot provides secondary non-volatile storage. -
Page 14: Installing The Sim Card
The card can contain the following information: Mobile phone service provider account details. Information regarding service access and preferences. Contact information, which can be moved to Contacts on the RP1200. Any additional services to which you have subscribed. ★... -
Page 15: Installing The Battery
Installing the Battery ★ NOTE The RP1200 ships with either a 1860 mAh or 4000 mAh battery. The 1860 mAh battery is shown in this installation procedure. To install the battery. Insert the battery, top first, into the battery compartment in the back of the RP1200. -
Page 16: Charging The Main Battery
RP1200 User‟s Manual Charging the Main Battery Before using the RP1200 for the first time, charge the main battery until the amber Charging/Battery Status LED remains lit (see Table 1-1 for charge status indications). To charge the RP1200, use a cable or a cradle with the appropriate power supply. -
Page 17: Checking The Battery Status
Table 1-1. Powering On the RP1200 After inserting the battery or when turning the RP1200 on for the first time, the splash screen displays for about a minute as the RP1200 boots, then the calibration window appears. Calibrating the Screen... -
Page 18: Resetting The Rp1200
Clean booting If the RP1200 is not functioning properly, perform a reset first. If the RP1200 still does not respond, perform a hard reset. Performing a Soft Reset Boot You may need to perform a Soft Reset boot to correct conditions where an application stops responding to the system. -
Page 19: Performing A Hard Reset
RP1200 User‟s Manual Splash Screen (Reset) Performing a Hard Reset To perform a Hard reset boot: Hold down the red Power button, and press the Reset button. 2) Press the Reset button 1) Hold down the Power button... -
Page 20: Performing A Clean Boot
Splash Screen (Hard-reset) Performing a Clean Boot A clean boot resets the RP1200 to the factory default settings. All data in the Application folder is retained. The clean boot process erases the RP1200 memory, including all applications and data files in the object store. -
Page 21: Rp1200 Service Verification
RP1200 phone and data services require a live SIM card, obtained from a service provider, installed in the RP1200 phone. The SIM card has embedded circuitry on one side of its surface which, when inserted into an RP1200 phone, provides phone service. The SIM card provides a phone number, determines the features or services available to the subscriber, and identifies the subscriber to the network. - Page 22 RP1200 User‟s Manual Phone Settings Window - Network Tab Ensure the service provider‟s network appears in the Current network: field. If the network does not appear, tap Find Network. If the network still does not appear, verify that the SIM card was installed correctly. If it was, and no network appears, contact the service provider.
-
Page 23: Configuring A Data Connection
2 Under My ISP, tap Add a new modem connection. 3 Enter a name for the connection, such as “ISP Connection.” 4 If using an external modem connected to your RP1200 with a cable, select Hayes Compatible on COM1 from the Select a modem drop-down list. -
Page 24: Connecting To A Network With A Vpn Server
4 In the Host name / IP field, enter the VPN server name or IP address. 5 Select the VPN type of authentication to use with your RP1200. If you are not sure which option to choose, check with your network administrator. -
Page 25: Rp1200 Settings
Phone Number automatically displays on the Phone tab when a live SIM card is installed. Select a ring type from the Ring type: drop-down list. The ring type changes the way the RP1200 rings when you receive an incoming call. Regardless of the ring type selected, a dialog box appears on the RP1200‟s display for incoming calls. -
Page 26: Security Tab
RP1200 User‟s Manual Security Tab Enabling a PIN Place emergency calls at any time, without requiring a PIN or a SIM card. NOTE Security Tab To require a PIN when using the phone: From the Security tab, select the Require PIN when phone is used check box under PIN Security. -
Page 27: Changing A Pin
RP1200 User‟s Manual Tap Enter to enable the PIN and return to the Phone tab. Changing a PIN CAUTION: If you enter an incorrect PIN, the message “SIM PIN incorrect: Try again” appears. After three consecutive incorrect attempts, the SIM card is blocked. The phone does not allow you to attempt to enter your PIN again and you must obtain a PIN Unblock Key from your service provider. -
Page 28: Services
RP1200 User‟s Manual Services Services Use the tab to configure settings for subscribed phone services. For example, block certain types of incoming and/or outgoing calls, disclose the caller‟s identity when making outgoing calls, forward incoming calls to a different phone number, receive notification of incoming calls when a phone session is in use, and set up voice mail and short message service. -
Page 29: Call Barring (Call Blocking)
RP1200 User‟s Manual Call Barring (Call Blocking) Use call barring to block certain types of incoming and/or outgoing calls. Select the type of incoming and/or outgoing calls to block. Call Barring Caller ID Enable caller ID to reveal the identity of the person making an outgoing call. Select the Everyone radio button toalways display the caller ID. -
Page 30: Call Forwarding
RP1200 User‟s Manual Call Forwarding Call Forwarding may not be available on all networks. Check with your service provider for NOTE availability. Use call forwarding to forward incoming calls to a different phone number. To forward all calls to a different phone number: ... -
Page 31: Voice Mail And Text Messages
RP1200 User‟s Manual Voice Mail and Text Messages To use voice mail and send short messages, enter the voice mail and/or text message phone number in the appropriate text boxes. Voice Mail and Text Messages Fixed Dialing Use Fixed Dialing to restrict the phone to dial only the phone number(s) or area code(s) specified in a Fixed Dialing list. -
Page 32: Network
The current network remains active until it‟s changed, the signal is lost, or the SIM card is changed. The network the RP1200 currently uses appears in the Current network: field at the top of the window. Changing Networks Manually >... -
Page 33: Viewing Available Networks
RP1200 User‟s Manual From the Choose Network window, select the network to use. Tap OK. Viewing Available Networks To view all wireless networks available: > > > Tap Start Settings Personal tab Phone icon > Network tab. > > Start Phone Options >... -
Page 34: Setting Preferred Networks
RP1200 User‟s Manual Setting Preferred Networks Set networks in a preferred order of access. Setting preferred networks allows the RP1200 to access a second preferred network if the first is unavailable > > > Tap Start Settings Personal tab Phone icon > Network tab >... -
Page 35: Via Wireless Lan
RP1200 User‟s Manual Via Wireless LAN You can use the Wireless Network Via Wireless LAN. RP1200 supports IEEE 802.11b and 802.11g. To connect the Wireless LAN (AP must be on and functioning) ... -
Page 36: Accessories
This chapter provides set up information for the following RP1200 accessories: Charge Only Cable - Provides power to the RP1200. USB Charging Cable - Provides power to the RP1200 and USB communication with a host computer. Single Slot Modem/USB Cradle - Charges the RP1200 main battery and a spare battery. -
Page 37: Single Slot Usb Cradle
RP1200 User‟s Manual Single Slot USB Cradle This section describes how to set up and use a Single Slot USB cradle with the RP1200. For USB communication setup procedures see ActiveSync Chapter. The Single Slot USB cradle: • Synchronizes information between the RP1200 and a host computer. See ActiveSync Chapter information on setting up a partnership between the RP1200 and a host computer. -
Page 38: Charging The Rp1200 Battery
RP1200 User‟s Manual Charging the RP1200 Battery Connect the cradle to power. Insert the RP1200 into the RP1200 slot to begin charging. Charges the RP1200‟s battery... -
Page 39: Charging The Spare Battery
RP1200 User‟s Manual Charging the Spare Battery Spare Battery Charging... -
Page 40: Battery Charging Indicators
Battery Charging Indicators The Single Slot USB cradle charges the RP1200‟s main battery and a spare battery simultaneously. The RP1200‟s Charging/Battery Status LED indicates the status of the battery charging in the RP1200. See Table 1-1 for charging status indications. -
Page 41: Charging And Communication
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the RP1200. To accomplish this, for small periods of time, the RP1200 alternately enables and disables battery charging to keep the battery at acceptable temperatures. The RP1200 indicates when charging is disabled due to abnormal temperatures via its LED. -
Page 42: Vehicle Cradle
RP1200 User‟s Manual Vehicle Cradle This guide will help you on basic usage of the product. Please check if all the contents shown below are nearby for use. RAM Mount and Cigar Jack are needed for installing and charging. (INPUT: DC 12~24V Max 2A / OUTPUT: DC 5V Max 3A) 1. -
Page 43: Using The Computer
(default), and vibrate. You can use the Volume application (available from the navigation bar) or the Volume buttons (on the side of the RP1200) to change the volume of the computer. Location of Volume Buttons on the RP1200... -
Page 44: Using The Touch Screen
Configuring the Backlight Settings By default, the RP1200 goes into Screen Off mode when there is no activity on the computer. Screen Off mode turns off the backlight and display. Press a key or tap the screen to resume activity. -
Page 45: Using The Stylus
RP1200 User‟s Manual Using the Stylus Your computer has a stylus for selecting items and entering information on the touch screen. Functions You Can Perform With the Stylus Action Description Touch the screen once with the stylus to select options, open or close applications, or launch menus from the Command bar. -
Page 46: Aligning The Touch Screen
Rotating the Screen The internal accelerometer enables you to have the screen rotate by sensing the orientation of the RP1200. You can enable the screen to rotate all the time depending on orientation, you can enable it to rotate for specific applications, you can disable rotation for selected applications, or you can disable it. -
Page 47: Reading Bar Codes
To read a bar code Press Power key to turn on the RP1200. Point the scanner window at the bar code label, and hold the RP1200 steady a few inches from the label. In File Explorer, Flash Disk > Scanner > ScanDemo > execute G2W_Scanner Press the Scan button. -
Page 48: Using The Color Camera
Location of the RP1200 Color Camera You can use the Pictures & Videos application on the RP1200 to take, view, and edit pictures or record and launch video clips stored on the RP1200 or a storage card. You can also send pictures and video clips to others or save an image as the background on the Today screen. - Page 49 4 Tap Take Pic on the taskbar or press Enter to save the image. If you select to save your pictures to Main memory, they are saved to permanent storage on the RP1200. 5 Auto Focus: Press and hold “Enter” key for 2~3 sec. till you hear sound “Tik” and then release the key.
-
Page 50: Using A Microsd Card
To use A-GPS, you need to set parameter in G2W.INI which is located in Remark: G2W_INI is not directly settable on the RP1200. To set INI parameter, you need to synchronize the RP1200 with your PC. On the PC, you change INI parameter. G2W_INI is convenient setting tool to control various functions G2W_setup manual is available for download. - Page 51 RP1200 User‟s Manual Tap External GPS. The GPS Settings screen appears. GPS program port: COM2 or COM9 On the Programs tab, select the COM port that you want your programs to use to get GPS data from your RP1200.
- Page 52 RP1200 User‟s Manual Tap ok.
-
Page 53: Button Assign Function
RP1200 User‟s Manual Button Assign Function Assign Button : L-Scan key, M-Scan key, R-Scan key, Soft 1 key, Soft 2 key, Call key, End key, Left/Right/Up/Down key... - Page 54 RP1200 User‟s Manual Button Assign Method Start Menu -> Settings -> Personal -> Buttons Select a button in “1. Select a button” field. In “2 Assign a program” field, select the program and press the “ok”. ※ If you assign the...
-
Page 55: Rp1200 Numeric Keypad
RP1200 User‟s Manual RP1200 Numeric Keypad Blue key Orange Key * Blue key: Use this key to access function keys shown on the keypad in blue. Press the Blue key once to active key this state temporarily. Press the Blue key twice to lock this state. -
Page 56: Numeric Keypad Input Modes
RP1200 User‟s Manual Numeric Keypad Input Modes Numeric Mode Orange Key Orange Key + Shift keys Blue + Shift + Press Press Press Press Press Press Press Press & space space Start • • • • Menu ← Action Action... -
Page 57: Connecting And Configuring The Rp1200
Use this chapter to understand how to configure the RP1200 to communicate in your network. Connecting the RP1200 to a PC You can use Microsoft ActiveSync to establish a connection between your RP1200 and PC. ActiveSync lets you transfer files, synchronize files, remotely debug, and perform other device management activities. -
Page 58: Connecting The Rp1200 To Your Network
You can connect your RP1200 using: • 802.11 radio communications. • Bluetooth communications. • USB communications. Note: The RP1200 radios are disabled when the battery is low. Attach a charger or replace the battery to re- enable the radios. -
Page 59: Connecting The Rp1200 Using Wifi Communications
Make sure all components with antennas are at least 30 cm (1 ft.) apart when power is applied. Failure to comply could result in equipment damage. Your RP1200 has an 802.11 radio to transfer data using wireless communications. This section assumes that your wireless network is set up, including your access points. - Page 60 Tap OK. Your device connects to the network. Make sure that your RP1200 is talking to the network and that the network can see your RP1200. If you are connected to the wireless network you will see a connected icon in navigation bar and you will see the name of your network next to Wi-Fi in the Wireless Manager.
-
Page 61: Connecting The Rp1200 Using Bluetooth Communications
Connecting the RP1200 Using Bluetooth Communications You RP1200 is Bluetooth™-enabled, which lets you connect to other Bluetooth devices, such as printers. You need to turn on the Bluetooth radio before you can discover and connect to other Bluetooth devices. By default, the radio is turned off. -
Page 62: Configuring The Phone
UMTS With the radio module installed in the RP1200, you can send and receive telephone calls as well as transmit data through wide-area (WAN) cellular networks. The RP1200 provides a phone speaker, microphone, and speakerphone. It also supports the use of a Bluetooth headset or hands-free kit. -
Page 63: Using Internet Sharing
RP1200 User‟s Manual Using Internet Sharing Internet Sharing allows you to setup a connection from your laptop to your mobile phones data connection. From here the instructions are simple; Start the application on you mobile phone. It will probably remind you that you‟re starting the Bluetooth radio and ask you to confirm Next go to your laptop Bluetooth devices and add the mobile device. - Page 64 RP1200 User‟s Manual Select setup a new connection, and all going well you should see „Connect to a Bluetooth PAN Hit connect and you should now be connected to the internet via your mobile!
-
Page 65: Making A Phone Call
RP1200 User‟s Manual Making a Phone Call After you turn on your phone, you are ready to start making phone calls. The icon in the navigation bar will change to indicate that the radio is now active. To make a phone call 1. -
Page 66: Installing Applications
RP1200 User‟s Manual Installing Applications Use this chapter to understand the guidelines for applications for use on the RP1200. Installing Applications on the RP1200 There are several ways you can install applications on your mobile computer: • You can package your application as a cabinet (.cab) file. -
Page 67: Installing Applications Using Microsoft Activesync
5 Navigate to the folder you want to copy the .cab file to, and paste the .cab file in the folder. 6 On your RP1200, tap Start > Programs > File Explorer and navigate to the location of the .cab file. -
Page 68: Installing Applications Using A Microsd Card
PC. 3 Copy your application file to the microSD card. 4 Remove the microSD card from the adapter card and insert it into the RP1200. 5 On your RP1200, navigate to the storage card folder and run your application.
