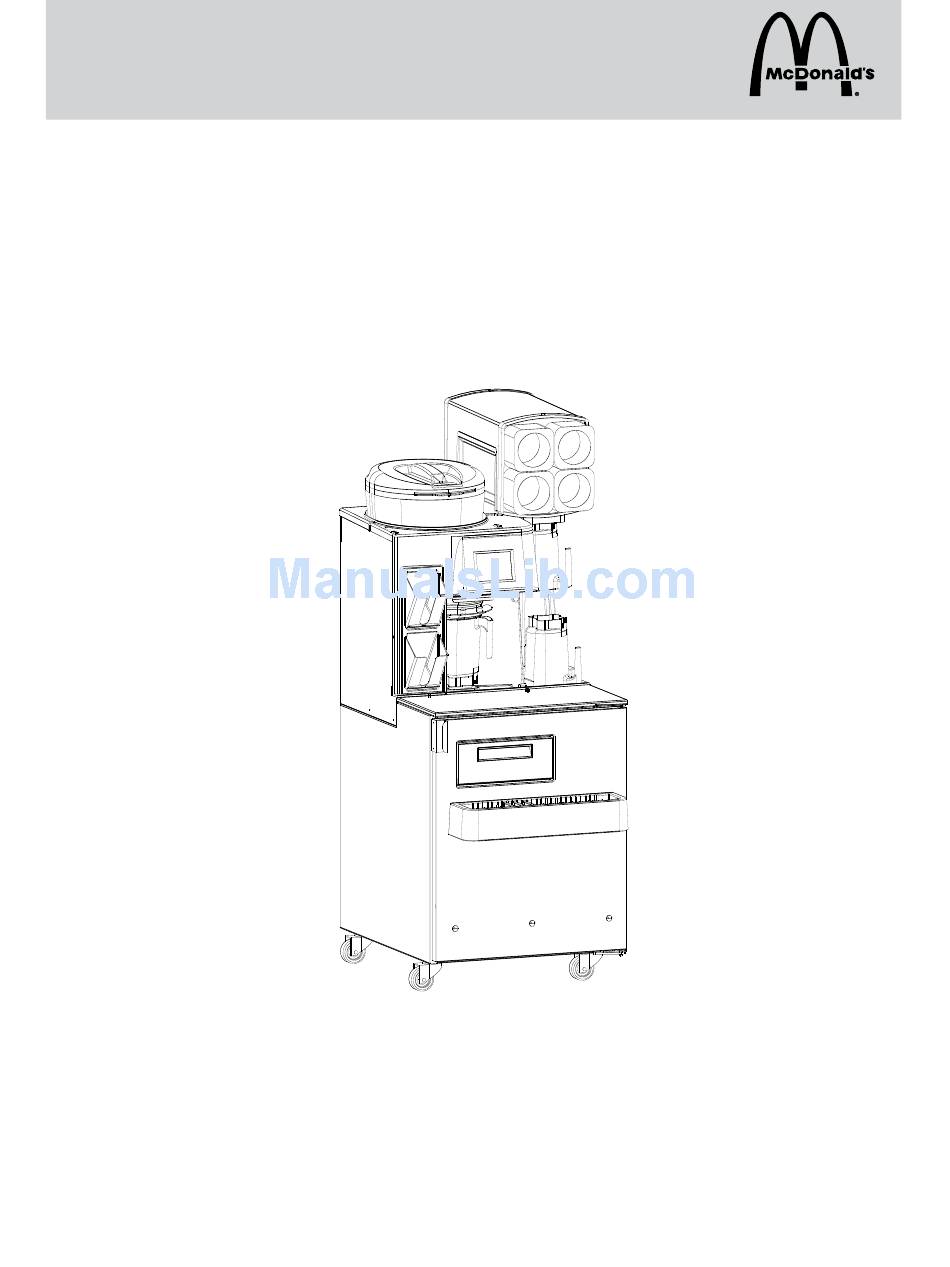

- Page 1 Blended Ice Machine Multiplex Model MS-8-1H Operation Manual Manufactured exclusively for McDonald’s® By: Manitowoc Foodservice Tel. (888) 436-5442 Fax (888) 779-2040 Blended Ice Machine Multiplex MS-8-1H Printed in July 2009 Printed in The United States of America...
-
Page 2: Table Of Contents
Multiplex Table of Contents Important Warning And Safety Information ...................... 3 Serial Number ..............................4 Specifications ..............................4 Operation Component Identification ........................... 5 General System Overview ......................... 5 Sequence of Operation ..........................6 Power-up ..............................6 Normal Operation ............................6 Procedure to Add Ice .......................... -
Page 3: Important Warning And Safety Information
Multiplex Important Warning And Safety Information WARNING READ THIS MANUAL THOROUGHLY BEFORE OPERATING, INSTALLING, OR PERFORMING MAINTENANCE ON THE EQUIPMENT. WARNING FAILURE TO FOLLOW INSTRUCTIONS IN THIS MANUAL CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. WARNING DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. -
Page 4: Serial Number
Multiplex Serial Number Always have the serial number of your unit available when calling for parts or service. Serial Tag Location The blended ice machine serial number is listed on the serial number decal affixed to the middle of the lower back panel. -
Page 5: Operation
Multiplex Operation Component Identification Dispenser (1706175) Ice Bin Lid (VMP00133) Touch Screen Manual Rinse Dispenser Button (1706142) Blender Rinse Location Whipped Blender Fill Cream Door Pitcher (000-187-0016) Syrup Rail Product (1706194) Bins Syrup Rail Divider (1706263) (1706195) Pull Out Tray (076-CDZ-0000) General System Overview The Blended Ice Machine is a self-contained dispensing... -
Page 6: Sequence Of Operation
Multiplex Operation, continued Sequence of Operation POWER-UP Menu Touch Screen All other procedures and adjustments are accessed from the Menu screen. Drink Selection Touch Screen Menu changes and additions are uploaded using a USB The Drink Selection screen appears on power-up (except mass storage device. -
Page 7: Procedure To Add Ice
Multiplex Operation, continued Procedure to Make a Drink NOTE: Ice must be present in the ice bin and 34.9 product must be connected and primed to pro- Fahrenheit duce a drink. 35.4 Fahrenheit Return Product Inventory Touch Screen Product inventory tracking estimates the remaining flavoring in each product’s bag in the reach-in compartment. -
Page 8: Procedure To Clear Blocked Line
Multiplex Operation, continued Procedure to Clear Blocked Line These instructions can be found on the Touch Screen in the Help Menu under “Clear Pump Clog”. Fill a squirt bottle with very warm potable water. Remove product holder. Connect squirt bottle with vinyl tubing to product tube inlet. -
Page 9: Procedure To Replace A Product Bag
Multiplex Operation, continued Procedure to Replace a Product Bag Open blue flip lid on product bag - snap off and remove. These instructions can be found on the Touch Screen in the Help Menu under “Replace Product Bag”. Touchscreen will indicate the bag is empty “Drink making paused, check product supply”. -
Page 10: Maintenance
Multiplex Maintenance Cleaning/Sanitizing Shipping, Storage and Relocation All cleaning must meet your local health department ! Caution regulations. Perform Daily and Weekly cleaning Before shipping, storing, or relocating this unit, procedures as described on the PM Cards. beverage systems must be sanitized. After An automatic timer in the blended ice machine will call sanitizing, all liquids (sanitizing solution and up a weekly Clean/Sanitize cycle on the touch screen... -
Page 11: Every 4 Hours Pm Card
Multiplex Clean Blended Ice Machine (BIM-8) Every 4 Hours BE 23 4H1 To break the bacteria cycle Time required 5 minutes to prepare 15 minutes to complete Time of day Every 4 Hours Hazard icons Chemicals Precaution: Hazard Communication Standard (HCS) – The procedures on this card include the use of chemical products. These chemical products will be highlighted with bold face letters followed by the abbreviation (HCS) in the tools portion of the procedure. -
Page 12: Daily Pm Card
Multiplex Clean Blended Ice Machine (BIM-8) Daily BE 23 D1 To break the bacteria cycle Time required 5 minutes to prepare 15 minutes to complete Time of day At close For 24-hour restaurants: During low-volume periods Hazard icons Chemicals Precaution: Hazard Communication Standard (HCS) –... - Page 13 Multiplex Clean Blended Ice Machine (BIM-8) (continued) Clean the exterior and interior of blended ice machine with a clean, sanitized towel dampened with McD Sanitizer solution. Remove all excess product from inside the machine. Whipped cream holder and gasket (inside) Door gaskets Lid holders Cup holder tubes and...
-
Page 14: Weekly Pm Card
Multiplex Clean Blended Ice Machine (BIM-8) Weekly BE 23 W1 To break the bacteria cycle Time required 10 minutes to prepare 50 minutes to complete Time of day At close For 24-hour restaurants: During low-volume periods Hazard icons Chemicals Electricity Sharp Objects/Surfaces Precaution: Hazard Communication Standard (HCS) –... - Page 15 Multiplex Clean Blended Ice Machine (BIM-8) (continued) Connect cleaning tubes. Place tubes in SANITIZE Connect one tube from the bucket. cleaning manifold to each Remove tubes from warm inlet line. water RINSE bucket and place into the SANITIZE bucket. Chemicals McD Sanitizer solution Place tubes in WASH bucket.
- Page 16 Multiplex Clean Blended Ice Machine (BIM-8) (continued) Clean drain pan. Melt away remaining ice. Pull the bottom drain pan From a blend pitcher, pour from inside the machine. warm water in a circular Take to 3-compartment sink motion into the ice bin and and wash, rinse and sanitize.
- Page 17 Multiplex Clean Blended Ice Machine (BIM-8) (continued) Spray interior of ice bin with Carefully purge a small Sanitizer Solution. amount of solution from the Allow to air dry. dispenser into the utility sink. This helps prevent Sharp Objects/Surfaces “sputtering” of solution and Use caution when wiping near possible splashing back onto the shaver blade.
-
Page 18: To Clear A Blocked Line Card
Multiplex To Clear A Blocked Line To allow correct product flow Time required 5 minutes to prepare 10 minutes to complete Time of day As necessary Hazard icons None Precaution: None Tools and supplies: Vinyl tubing Squirt bottle Procedure Fill a squirt bottle with very Repeat Step 6. -
Page 19: Replacing A Product Bag Card
Multiplex Replacing A Product Bag To replace empty product bags Time required 5 minutes to prepare 10 minutes to complete Time of day As necessary Hazard icons None Precaution: None Tools and supplies: None Procedure Product bag is empty. Open blue flip lid on product bag - snap off and remove. -
Page 20: Troubleshooting
Multiplex Trouble Shooting If a problem arises during operation of your blended ice machine, follow the remedies below before calling service. Routine adjustments and maintenance procedures are not covered by the warranty. Problem Probable Cause Remedy Touchscreen Will Not Energize Breaker is tripped. - Page 21 Multiplex Trouble Shooting, continued Fault Message Probable Cause Remedy Drink Making Paused Product did not achieve target weight. Do not touch blend container during dispense cycle. Check Hose and Pump at Location Product tube connection is loose. Prime flavor repeatedly to purge obstruction. Product Dispense CO 2 is unavailable.
-
Page 22: Warranty
Multiplex Standard Two Year Limited Warranty (parts and labor) Multiplex warrants to the Original Purchaser of the Multiplex If shipment of a replacement part is requested prior to the arrival product (herein called the “Unit”) that such Unit, and all parts in the Multiplex factory of the part claimed to be defective, the thereof, will be free from defects in material and workmanship Original Purchaser must accept delivery of the replacement part... - Page 23 Multiplex Additional Three Year Protection Plan (for Motor-Compressor only) Installation Replacement of a defective Motor-Compressor is limited to one Multiplex Model# Serial # Date (1) Motor-Compressor by us during the three (3) year period. Multiplex shall replace the Motor-Compressor at no charge. This warranty does not give the Original Purchaser of the Motor- Compressor the right to purchase a complete replacement In addition to the Standard Two Year Warranty on the Motor-...
- Page 24 Multiplex Thank you for choosing Manitowoc Foodservice! Help is a phone call away. Help our team of professional, courteous customer service reps by having your model number and serial number available at the time of your call (888) 436-5442. Model: ____________________ S/N: ___________________...
