Summary of Contents for Blaupunkt 32- GB-3B-HCDU-UK

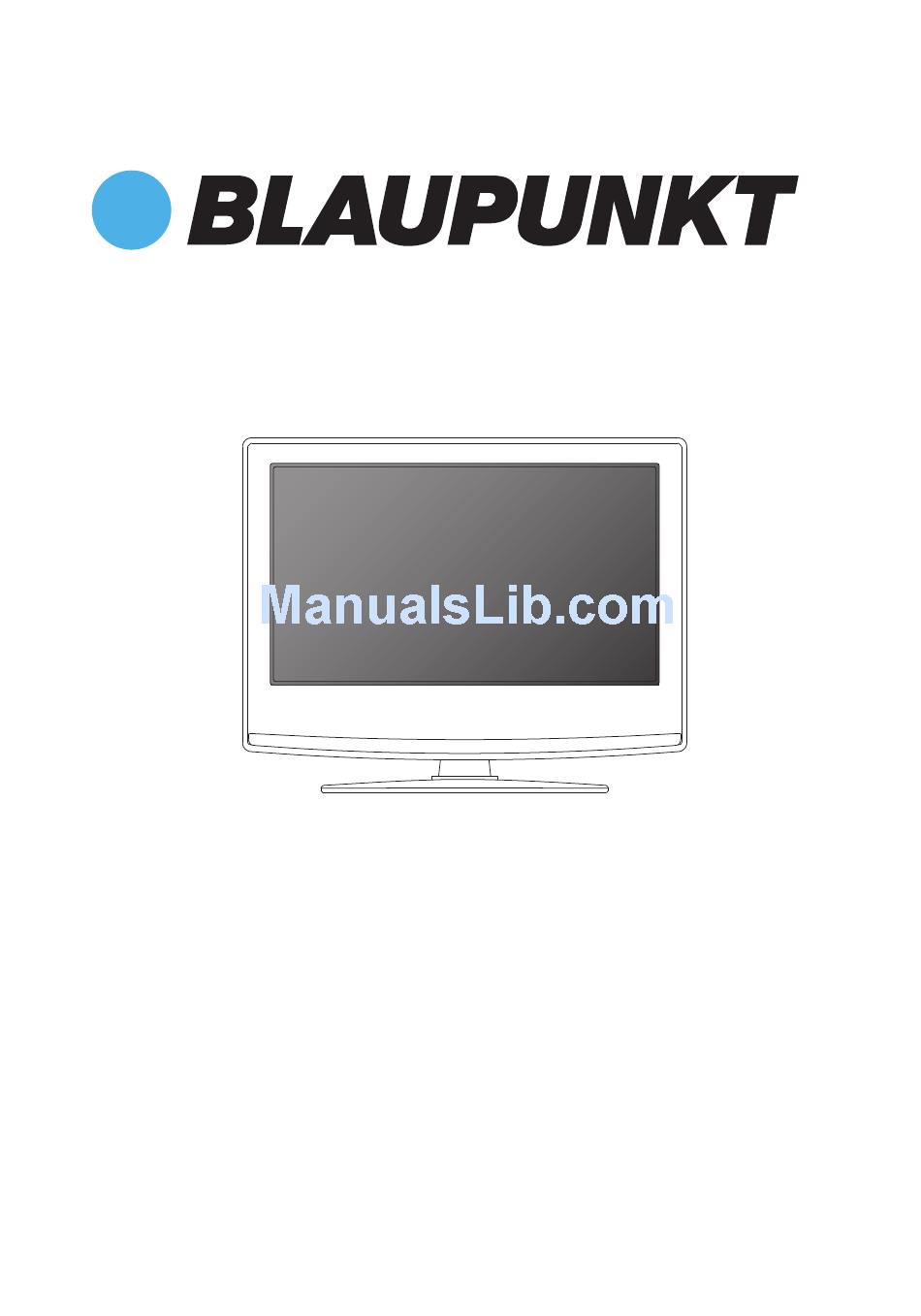

- Page 1 HD Ready LED TV with Freeview, DVD Player & USB Media Player User Guide Model No 32/123J- GB-3B-HCDU-UK...
-
Page 2: Important Guarantee Information
Important Guarantee Information Congratulations on purchasing this television. We hope you have many years of trouble free enjoyment from your purchase. Your product is covered under the manufacturers guarantee for 12 months from date of purchase. In the event of a fault being diagnosed, please refer to the frequently asked questions/ troubleshooting section at the rear of this user guide. -
Page 3: Important Safety Instructions
Important safety instructions can seriously reduce the lifetime of the appliance. In order CAUTION to ensure the safety, ask the qualifi ed person to remove the dirt from the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN Try to prevent the mains cable or (if it is part of delivery) mains adapter damage. - Page 4 Important safety instructions Important information regarding use of Batteries video games, computers, captions and Observe the correct polarity when inser- ting the batteries. other fi xed image displays. Do not expose batteries to high tempera- tures and do not place them on locations ...
-
Page 5: Table Of Contents
Contents ....... . . Important guarantee information ......... What is included in the box Stand. -
Page 6: What Is Included In The Box
What is included in the box Accessories Supply of this TV includes following parts: 1x TV 1x TV Stand Installation Packet STANDB Y MUTE TV/RADIO TV GUIDE EJECT REC LIST SOURCE INFO 1x Remote Control MENU EXIT 1x RF Cable SUB TITL E A SPECT A UDIO... -
Page 7: Attaching The Stand
Attaching the stand Attaching the Stand To complete the stand installation you will need a Phillips screw driver. Place the TV set on a fl at and clean surface with the panel facing downwards to avoid damage. ST (4x14) (fi g.1) Attach the stand neck to the rear of the TV set. (fi g.2) Secure the neck to the TV using the 4 x ST(4x14) screws provided. -
Page 8: Detaching The Stand
Detaching the stand Detaching the Stand To detach the stand please remove the 4 screws highlighted below and remove the stand from the rear of the TV set. ST (4x14) Wall mounting the TV 1. Remove the four screws 2. The wall mount can now be easily attached to the mounting holes on the rear of the TV. -
Page 9: Getting Started - Initial Set Up
Getting started - initial set up 1. Using the RF cable supplied, connect the TV to the TV Aerial 5. You will now be welcomed with the initial set-up screen. wall socket (Fig A). If it does not appear, on the remote control, please press 2. -
Page 10: Tv Buttons & Source Menu
TV buttons & Source menu Eject Play/Pause Volume up and menu right Volume down and menu left Programme/Channel up and menu up Programme/Channel down and menu down Displays Menu/OSD Displays the input source menu Standby Power On/Off Choosing Mode Input/Source To switch between the diff erent input/connections. -
Page 11: Remote Control
Remote control TV with USB STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa TV/RADIO - Switch to Freeview and switch between TV and radio in Freeview mode TV GUIDE - Opens the 7 Day TV Guide (Freeview mode) ATV - Switch to analogue TV source USB - Switch to USB Source DVD - Switch to DVD source... -
Page 12: Connections
Connections Connections Video Input & Audio input (Video V ideo-CVBS COAX Audio Out Digital Coax Output & YPbPr) R/L Audio In R/L Audio Input HDMI 1 in HDMI input HDMI 3 in HDMI input HDMI 2 in HDMI input Port USB SCART SCART input Component HD Input... - Page 13 Connections Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box TVs Input/Source should be set to SCART. SCART SCART RF OUT RF IN RF IN Connecting a Camcorder, Camera or Games Console TVs Input / Source should be set to Video. Audio R / L Video...
-
Page 14: Tv Menu Operation
TV Menu operation TV Menu Operation | Channel menu | Picture menu TV Menu Operation Picture menu To access this menu, press [MENU] button on the remote control. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 15: Sound Menu
TV Menu operation Sound menu | Time menu | Feature menu Sound menu Time menu Sound Mode - Choose from the following presets: Clock - Set the date and time. Off Time - Allows you to set a specifi c time for your TV to turn off . -
Page 16: Setup Menu
TV Menu operation Setup menu Key Lock - Allows you to lock the buttons on the side of the TV set Zoom - The picture is the Parental Guidance - Allows you to set the rating to block correct proportion but certain content based on age information zoomed in to fi ll the screen. -
Page 17: Using The Television As A Computer Monitor
TV Menu operation Using the television as a computer monitor IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor. How to set up for Windows XP, Windows Vista & Windows 7 (connecting via VGA cable to the TV). 1. -
Page 18: Pc Settings
TV Menu operation PC Settings | 7 Day TV Guide PC Settings Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor H Off set - Changes the horizontal position of the picture V Off set - Changes the vertical position of the picture Size - increase picture size Phase - To adjust delay time of phase in order to reduce the... -
Page 19: Dvd Menu
TV Menu operation DVD Menu Dynamic Range - This is the diff erence between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital. Full Set this to listen with the range recorded on the disc Set this to listen with a range equivalent to a normal television... -
Page 20: Usb Mode / Media Player
TV Menu operation USB mode / Media player USB mode / Media player USB mode off ers playback of various diff erent types of content that you have saved on your USB Memory Stick. Please refer to technical specifi cation page for compatible fi le types On switching to USB source the above menu screen will appear. -
Page 21: Operating The Tv With A Universal Or Sky (Bskyb) Remote Control
OPERATING THE TV WITH A UNIVERSAL OR SKY (BSKYB) REMOTE CONTROL Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room) Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately) If connecting by SCART, select the ‘Input source’... -
Page 22: Frequently Asked Questions
Frequently asked questions General I would like to have louder There are 2 options: sound by connecting 1) Use Digital COAX output connected to an external amplifi er/surround sound additional speakers. system. 2) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system. -
Page 23: Technical Specifi Cation
Technical specifi cation Model 32/123J-GB-3B-3B-HCDU-UK Screen size (diagonal) 32"/81cm Resolution 1366 x 768 PC RGB 75 ohm- aerial/PAL-SECAM Video Inputs 3 x HDMI, 1 x VGA/PC, 1 x SCART, 1 x USB, 1 x Composite/Video, 1 x Component/YPbPr 1 x 3.5mm jack for PC audio input, 1 x pair RCA Audio input shared for Video Sound Inputs and YPbPr (component) Sound Outputs... -
Page 24: Index
Index ......... . . - Page 25 Universal Media Corporation /Slovakia/ s.r.o. Mickiewiczova 7104/14, 811 07 Bratislava 1, Slovakia Assembled in Europe BLA/MAN/0095...
