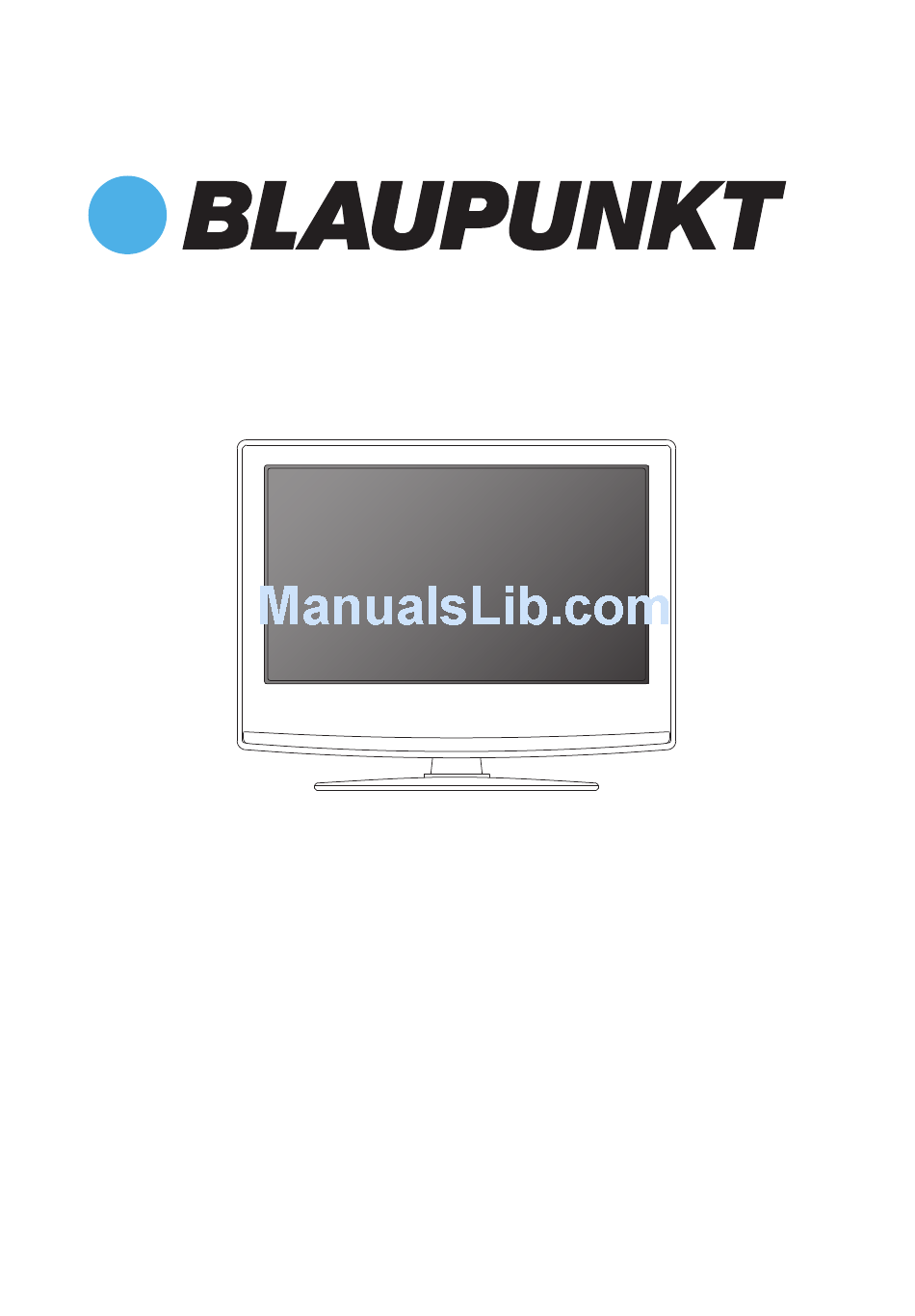

- Page 1 Full HD 3D LED TV with Freeview & USB Media Player User Guide Model No 32-56G-GB-3B-F3TCU-UK...
-
Page 2: Important Safety Instructions
Important safety instructions can seriously reduce the lifetime of the appliance. In order CAUTION to ensure the safety, ask the qualifi ed person to remove the dirt from the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN Try to prevent the mains cable or (if it is part of delivery) mains adapter damage. -
Page 3: Important Safety Instructions
Important safety instructions Important information regarding use of 3D Safety Information video games, computers, captions and If you watch the 3D imaging too closely or for a long period other fi xed image displays. of time, it may harm your eyesight. ... -
Page 4: Table Of Contents
Contents Important safety instructions ........What is included in the box . -
Page 5: What Is Included In The Box
What is included in the box Accessories Supply of this TV includes following parts: 1 x TV stand installation pack 1x TV STANDB Y MUTE TV/RADIO TV GUIDE EJECT REC LIST SOURCE INFO 1x Remote control MENU EXIT 1x RF cable SUB TITL E A SPECT A UDIO... -
Page 6: Attaching The Stand
Attaching / Detaching the Stand Attaching the stand Wall mounting the TV This television requires a VESA 400 wall mount. For the assembly you will need a screwdriver. Place TV 1. Remove the four screws highlighted below. body on fl at surface with the panel facing downwards 2. -
Page 7: Getting Started - Initial Set Up
Getting started - initial set up 1. Using the RF cable supplied, connect the TV to the TV Aerial 5. You will now be welcomed with the initial set-up screen. wall socket (Fig A). If it does not appear, on the remote control, please press 2. -
Page 8: Tv Buttons & Source Menu
TV buttons & Source menu TV with USB Volume up and menu right Volume down and menu left Programme/Channel up and menu up Programme/Channel down and menu down Displays Menu/OSD Displays the input source menu Standby Power On/Off Choosing Mode Input/Source To switch between the diff... -
Page 9: Remote Control
Remote control TV with USB STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa TV/RADIO - Switch to Freeview and switch between TV and radio in Freeview mode TV GUIDE - Opens the 7 Day TV Guide (Freeview mode) ATV - Switch to analogue TV source USB - Switch to USB Source S.MODE - Scrolls through sound mode options... -
Page 10: Connections
Connections Connections Port USB COAX Audio Out Digital Coax output Video (CVBS) Video input x 3 HDMI in HDMI input Audio L/R input for component Audio L/R VGA(PC) VGA-PC input Composite/CVBS 10 Component Component input VGA (PC) Audio In 3.5mm PC audio input CI Card IN Common Interface Module Input RF In... - Page 11 Connections Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box TVs Input/Source should be set to SCART. SCART SCART RF OUT RF IN RF IN Connecting a Camcorder, Camera or Games Console TVs Input / Source should be set to Video. Audio R / L Video...
-
Page 12: Tv Menu Operation
TV Menu operation TV Menu Operation | Channel menu | Picture menu | 3D Settings TV Menu Operation Picture menu To access this menu, press [MENU] button on the remote control. To enter a menu press [OK] Picture Mode - Choose from the following presets. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 13: 3D Settings
TV Menu operation TV Menu Operation | Channel menu | Picture menu | 3D Settings 3D settings For the best 3D picture eff ect, watch your TV from vertical angle +/- 10°. When connecting a 3D product sometimes the picture maybe displayed incorrectly; 3D Type- choose from the following settings to correct this. -
Page 14: Sound Menu
TV Menu operation Sound menu | Time menu | Feature menu Sound menu Time menu Sound Mode - Choose from the following presets: Clock - Set the date and time. Off Time - Allows you to set a specifi c time for your TV to turn off... -
Page 15: Setup Menu
TV Menu operation Setup menu System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◄ button to quit the password input. Use the ► button to clear. Default password is 0000. -
Page 16: Using The Television As A Computer Monitor
Using the television as a computer monitor IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor. How to set up for Windows XP, Windows Vista & Windows 7 (connecting via VGA cable to the TV). 1. -
Page 17: Pc Settings
TV Menu operation PC Settings | 7 Day TV Guide PC Settings Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor. H Off set - Changes the horizontal position of the picture. V Off... -
Page 18: Usb Mode / Media Player
TV Menu operation USB mode / Media player USB mode off ers playback of various diff erent types of content that you have saved on your USB Memory Stick. Please refer to technical specifi cation page for compatible fi le types On switching to USB source the above menu screen will appear. -
Page 19: Using Your Tv With A Sky Digital Set Top Box
How to use your TV with a Sky Digital set top box Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room) Depending on your Sky Box and TV model, connect either by SCART (or if no SCART connector is included with your TV, connect via a SCART to AV cable) or via an HDMI cable (SCART to AV and HDMI cables are available separately) If connecting by SCART cable to both the Sky Box and TV, select the ‘input source’... -
Page 20: Frequently Asked Questions
Frequently asked questions General I would like to have louder There are 2 options: sound by connecting 1) Use Digital COAX output connected to an external amplifi er/surround sound additional speakers. system. 2) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi... -
Page 21: Technical Specifi Cation
Technical specifi cation Model 32/56G-GB-1B-F3TCU-UK Screen size (diagonal) 32"/81cm Resolution 1920 x 1080 PC RGB 75 ohm- aerial/PAL-SECAM 3 x HDMI, 1 x VGA/PC, 1 x SCART, Video Inputs 1 x USB, 1 x Composite/Video, 1 x Component (YPbPr) 1 x shared audio for Composite/Video and YPbPR, Sound Inputs 1 x 3.5mm jack for PC audio input Sound Outputs... -
Page 22: Index
Index 3D settings ..........Remote control . - Page 24 Universal Media Corporation /Slovakia/ s.r.o. Mickiewiczova 7104/14, 811 07 Bratislava 1, Slovakia Assembled in Europe BLA/MAN/0067...
