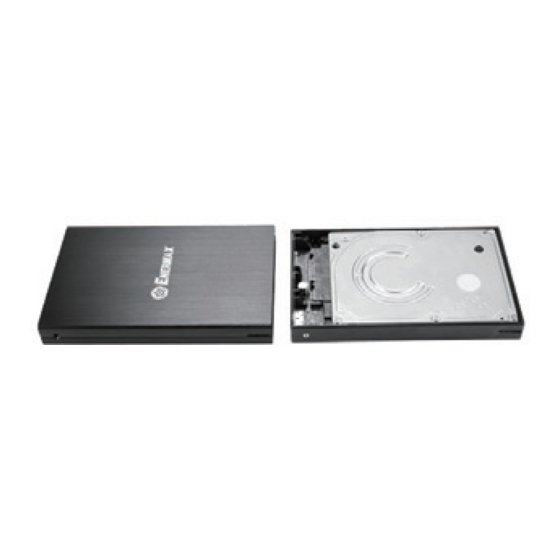

"Brick" EB208S HDD Enclosure

A. Package Content

• "Brick" EB208S"HDD Enclosure
• USB 2.0 cable
• Tool package
(Screwdriver*1+ Screw for aluminum body*3 + Screws for HDD and the PCB board*5)
• User's manual
• Carry Bag

B. Minimum System Requirements

1. Windows 98SE/ME/2000/XP/Vista/7
2. Mac OS 9.x (Apple USB support 1.3.5 and greater) and Mac OS 10.1, 10.2, 10.3,and 10.4
3. Computer with USB 2.0 or 1.1 interface
4. PC: Intel Pentium 233MHz-compatible processor or greater
5. Mac: G3 processor or greater
6. Minimum 32MB RAM
User's Manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brick EB208S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ENERMAX Brick EB208S

  • Page 1 User’s Manual Page 1 “Brick” EB208S HDD Enclosure A. Package Content • “Brick” EB208S”HDD Enclosure • USB 2.0 cable • Tool package (Screwdriver*1+ Screw for aluminum body*3 + Screws for HDD and the PCB board*5) • User’s manual • Carry Bag B.
  • Page 2 User’s Manual Page 2 “Brick” EB208S HDD Enclosure C.Hardware Installation 1.Remove the HDD tray 2.Connect the SATA HDD to to SATA connectors on the PCBA. *To make sure the HDD is firmly connected to the PCB, please screw the HDD and the PCB board together.
  • Page 3 User’s Manual Page 3 “Brick” EB208S HDD Enclosure E. Using your EB208S Introduction • Do not connect the enclosure to the computer until the driver is completely installed. • Please make sure you format the HDD before the first time use. • Driver installation is not required when using Windows ME/2000/XP/Vista • When using Windows 98SE, please log on to www.enermax.com for drivers • Unplug Procedure on a PC (Microsoft Windows)* 1. Click on the taskbar icon for the external hardware 2. Choose the external HDD and confirm to remove it • Unplug Procedure on a Macintosh (Apple Mac OS)* 1. Drag the external HDD icon into the trash bin 2. Turn off your device *For safe removal of your drive and assure no data is lost, always follow the unplug procedure. If not, errors message might show up. • The USB cable with two USB plugs is designed for efficient power supply. Generally you only need one USB connection to drive the external HD. Some desktops or laptops limit the host USB power supply to the external USB devices or some HDDs require more power. In those cases, you need to plug...
  • Page 4 Actual product and accessories may differ from illustrations. Omissions and printing errors excepted. Some trademarks may be claimed as the property of others. Reproduction in any manner without the written permission of ENERMAX is strictly forbidden.
  • Page 5 2. Mac OS 9.x (Apple USB od wersji 1.3.5) oraz Mac OS 10.1, 10.2, 10.3 lub 10.4 3. Komputer z interfejsem USB 2.0 albo 1.1 4. PC: procesor Intel Pentium 233MHz lub lepszy 5. Mac: procesor G3 lub lepszy 6. Minimalnie 32MB pamięci RAM 2. Instrukcja montażu dysku twardego Patrz grafika na stronie 2. 3. Instrukcja użytkowania a. Instalacja sterownika • Proszę zainstalować sterownik przed podłączeniem obudowy HDD do portu USB komputera. • Windows 98SE/ME/2000/XP/Vista/7: bez dodatkowego sterownika. • Windows 98SE: Proszę ściągnąć sterownik ze strony www.enermax.com.
  • Page 6 Polski User’s Manual Page “Brick” EB208S HDD Enclosure b. Formatowanie • Przed pierwszym użyciem należy sformatować dysk twardy. Uwaga: Formatowanie jest operacją nieodwracalną i dane nie mogą zostać odzyskane. c. Wyświetlacz statusu • Power: niebieski LED • Transfer danych (Read/Write): fioletowy LED d. Odłączanie obudowy • Od komputera PC (Microsoft Windows)*: 1. Kliknij ikonę „Bezpieczne usuwanie sprzętu” w pasku zadań. 2. Wybierz odpowiedni zewnętrzny dysk twardy a następnie kliknij “Bezpiecznie usuń”. • Od komputera Macintosh (Apple Mac OS)*: 1. Przeciągnij ikonę “zewnętrznego dysku twardego” do kosza. 2. Odłącz obudowę od komputera. * Aby uniknąć uszkodzenia urządzenia lub utraty danych, przy odłączeniu obudowy od komputera należy zawsze przestrzegać procedury podanej powyżej.
  • Page 7 Polski User’s Manual Page “Brick” EB208S HDD Enclosure e. Dodatkowe zasilanie • Kabel USB z dwoma wtyczkami USB pozwala wydajne zasilanie. Jeżeli port USB komputera albo notebooku nie zapewnia mocy wystarczającej do zasilania dysku albo jeżeli dysk wymaga dodatkowe zasilanie, należy użyć również drugą wtyczkę USB. 4. FAQ (Pytanie i odpowiedzi) Pytanie: Pojawia się ikona w prawym dolnym rogu ekranu, ale nadal nie mogę znaleźć zewnętrznego dysku twardego.
